Open RegionYearModelModelCode Details
General 2013 HILUX KUN26L-PRASJG
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: ATM, 5-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA(EXCEPT ANCOM) Doors Description: DOUBLE CAB Color Code: 040 Production: 201204-201510 Model Short: KUN26L-PRASJG Region: OTHER Native Region: GR

Toyota Hilux 2013 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85535-0K010-C0 COVER, POWER OUTLET SOCKET, NO.1 1
Note:TGN36..HTWCF;KUN25..THDCB,XTR;KUN15,TGN26..(SMT,THDCB)..SR;KUN15,TGN16,26..DCB..(CO,LA,TH);KUN25..(DCB,SMT)..(IDN,LA,MA,TH);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..LHD..(DCB,SADCB,THDCB)..DLX;GGN15,25,KUN16..(4FC,5FC)..SR..(ARL,GEN,TH);KUN15,26..(5F,5FC)..SR..(DCR,IART)..(ARL,CO,GEN,LA,PHL,TH);KUN3#,TGN36..(DCB,SMT,THDCB)..(DCR,HDCR,HTWC)..(GEN,LA,PHL,TH) Production:2013-08 – 2016-01 Spec:BLACK,TRIM2# Fitment:Matches · configuration
85535-0K010-B2 COVER, POWER OUTLET SOCKET, NO.1 1
Note:KUN36..4FC;TGN36..HTWCF;TGN36..GEN,SA;KUN35..SMT..5FC;KUN25..THDCB,XTR;KUN26..(4FC,5FC)..SR;KUN36..5F..(GEN,LA,SA);KUN26..5F..SR..(ARL,CO,GEN,LA,PHL,SA);KUN15,16..(4FC,5F)..SR..DCR..(GEN,TH);KUN25,TGN36..DCB..(HDCR,HTWC)..(IDN,LA,MA);KUN26,35..(DCB,SADCB,THDCB)..DLX..(GEN,LA,PHL);KUN15,TGN26..DCB..DLX..(HDCR,HTWC,HTWCF)..(LA,TH);GGN15,25,35,KUN15,35,TGN26..SR..(HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GEN,LA,SA) Production:2011-07 – … Spec:MD.GRAY,TRIM1# Fitment:Matches · configuration
85539-60020 LABEL, POWER OUTLET NOTICE 1
Note:KUN35..SR..SA;TGN36..GEN,SA;TGN26..DLX..LA;KUN15..SMT..SR;KUN25..THDCB,XTR;KUN15..SR..(GEN,PHL);KUN36,TGN36..DCR,HTWCF;KUN15..RHD..(DCB,XTR)..HDCR;KUN26..LHD..(DCB,SADCB,THDCB)..DLX;KUN35..(DCB,SMT,THDCB)..(GEN,LA,PHL,TH);KUN25,TGN36..(DCB,SMT)..(HDCR,HTWC)..(IDN,LA,MA,TH);GGN15,25,35,KUN16,26,TGN16,26..SR..(ANCOM,ARL,CO,GEN,LA,MA,PHL,SA,TH) Production:2011-07 – … Fitment:Matches · configuration
85530-0K010 SOCKET ASSY, POWER OUTLET, NO.1 1
Note:KUN35..SR..SA;TGN36..GEN,SA;TGN26..DLX..LA;KUN15..SMT..SR;KUN25..THDCB,XTR;KUN15..SR..(GEN,PHL);KUN36,TGN36..DCR,HTWCF;KUN15..RHD..(DCB,XTR)..HDCR;KUN26..LHD..(DCB,SADCB,THDCB)..DLX;KUN35..(DCB,SMT,THDCB)..(GEN,LA,PHL,TH);KUN25,TGN36..(DCB,SMT)..(HDCR,HTWC)..(IDN,LA,MA,TH);GGN15,25,35,KUN16,26,TGN16,26..SR..(ANCOM,ARL,CO,GEN,LA,MA,PHL,SA,TH) Production:2011-07 – … Replacements:85530-42010 (fitment: unknown) Fitment:Matches · configuration
85513-28010 COVER, CIGARETTE LIGHTER 1
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85515 —
85533-30060 LENS, CIGARETTE LIGHTER INDICATOR 1
Note:TGN36..LHD;KUN26..SCB..5F..IV3;KUN26..LHD..5FC..SR;KUN15..DCB..DLX..DCR;KUN26..(4FC,5FC)..IV3;KUN35,TGN26..THDCB..DLX;TGN16,26..DLX..(ANCOM,TH);KUN35..DLX..(CO,LA,PHL,SA);KUN26..(4FC,5F)..SR..(CO,LA);KUN36,TGN10..(GCC,IDN,LA)..CBU;KUN26..(DCB,SADCB,SCB,THDCB)..DLX..CBU;KUN10,16,25,TGN11..SCB..(ARL,GCC,MA,TH);KUN26..LHD..(SADCB,THDCB)..(4FC,5F)..SR;TGN16,26..(DCB,SCB,XTR)..(ARL,GCC,GEN,LA,SA);KUN25,LAN15,25,35,TGN15..DLX..(CO,GCC,GEN,LA,SA);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,SA,TH) Production:2011-07 – … Fitment:Matches · configuration
85500-28050 LIGHTER ASSY, CIGARETTE 1
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … Fitment:Matches · configuration
85520-28010 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 1
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … Fitment:Matches · configuration
85510-22110 SOCKET & RETAINER ASSY, CIGARLIGHTER 1
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85500B —
— Part does not apply to this vehicle configuration. 84660C —
— Part does not apply to this vehicle configuration. 84725B —
— Part does not apply to this vehicle configuration. 84725A —
84870-0K010 SWITCH ASSY, OUTER MIRROR 1
Note:KUN35..LHD..SR;TGN16..DCB..SA;TGN36..DCB..HTWCF;KUN26..LHD..(4FC,5FC);KUN25..RHD..DLX..(IDN,SA);KUN26,36,TGN36..LHD..5F..SR;KUN26,TGN26..RHD..(ARL,GEN);GGN15,25,KUN16,TGN26..ARL,CO,LA;TGN36..(DCB,THDCB)..(ANCOM,GEN);KUN15,TGN16,26..(THDCB,XTR)..GEN;KUN35..(DCB,SCB,XTR)..DLX..(GEN,PHL,SA);KUN15,25,TGN16..(DCB,SCB)..SR..(GCC,GEN,MA,PHL,SA);KUN15,TGN26..(DCB,SMT)..DLX..(DCR,HTWC)..(ANCOM,TH) Production:2011-07 – … Replacements:84870-34010 (fitment: unknown) Fitment:Matches · configuration
84872-06040 SWITCH ASSY, OUTER MIRROR, NO.2 1
Note:KUN35..LHD..SR;TGN16..DCB..SA;TGN36..DCB..HTWCF;KUN26..LHD..(4FC,5FC);KUN25..RHD..DLX..(IDN,SA);KUN26,36,TGN36..LHD..5F..SR;KUN26,TGN26..RHD..(ARL,GEN);GGN15,25,KUN16,TGN26..ARL,CO,LA;TGN36..(DCB,THDCB)..(ANCOM,GEN);KUN15,TGN16,26..(THDCB,XTR)..GEN;KUN35..(DCB,SCB,XTR)..DLX..(GEN,PHL,SA);KUN15,25,TGN16..(DCB,SCB)..SR..(GCC,GEN,MA,PHL,SA);KUN15,TGN26..(DCB,SMT)..DLX..(DCR,HTWC)..(ANCOM,TH) Production:2011-07 – … Replacements:84872-52030 (fitment: unknown) Fitment:Matches · configuration
84119-0K010 RHEOSTAT, LIGHT CONTROL 1
Note:KUN26..5FC..DLX..ARL;KUN26..LHD..DCB..GEN;KUN35..SR..(GEN,PHL,SA);KUN26..(SADCB,THDCB)..SR;GGN15,25,35,KUN16,36,TGN36..SR;KUN26..SR..(ARL,CO,LA,MA,PHL,SA,TH);KUN15,25,TGN16,26..DCB..SR..(GCC,LA,SA) Production:2011-07 – … Fitment:Matches · configuration
84118-0K010 KNOB, LIGHT CONTROL RHEOSTAT 1
Note:KUN26..5FC..DLX..ARL;KUN26..LHD..DCB..GEN;KUN35..SR..(GEN,PHL,SA);KUN26..(SADCB,THDCB)..SR;GGN15,25,35,KUN16,36,TGN36..SR;KUN26..SR..(ARL,CO,LA,MA,PHL,SA,TH);KUN15,25,TGN16,26..DCB..SR..(GCC,LA,SA) Production:2011-07 – … Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 84790 —
— Part does not apply to this vehicle configuration. 84790B —
84988-0K020 SWITCH, VSC OFF 1
Note:KUN26..4FC..SA;KUN36..DCB..SA;KUN26..SR..IART;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH) Production:2011-07 – 2015-12 Spec:VSC-WITH Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 84152 —
— Part does not apply to this vehicle configuration. 87290 —
— Part does not apply to this vehicle configuration. 87290B —
— Part does not apply to this vehicle configuration. 84330B —
— Part does not apply to this vehicle configuration. 84330 —
90170-T0001 standard —
Replacements:90170-09002 (fitment: unknown) Fitment:Matches · configuration

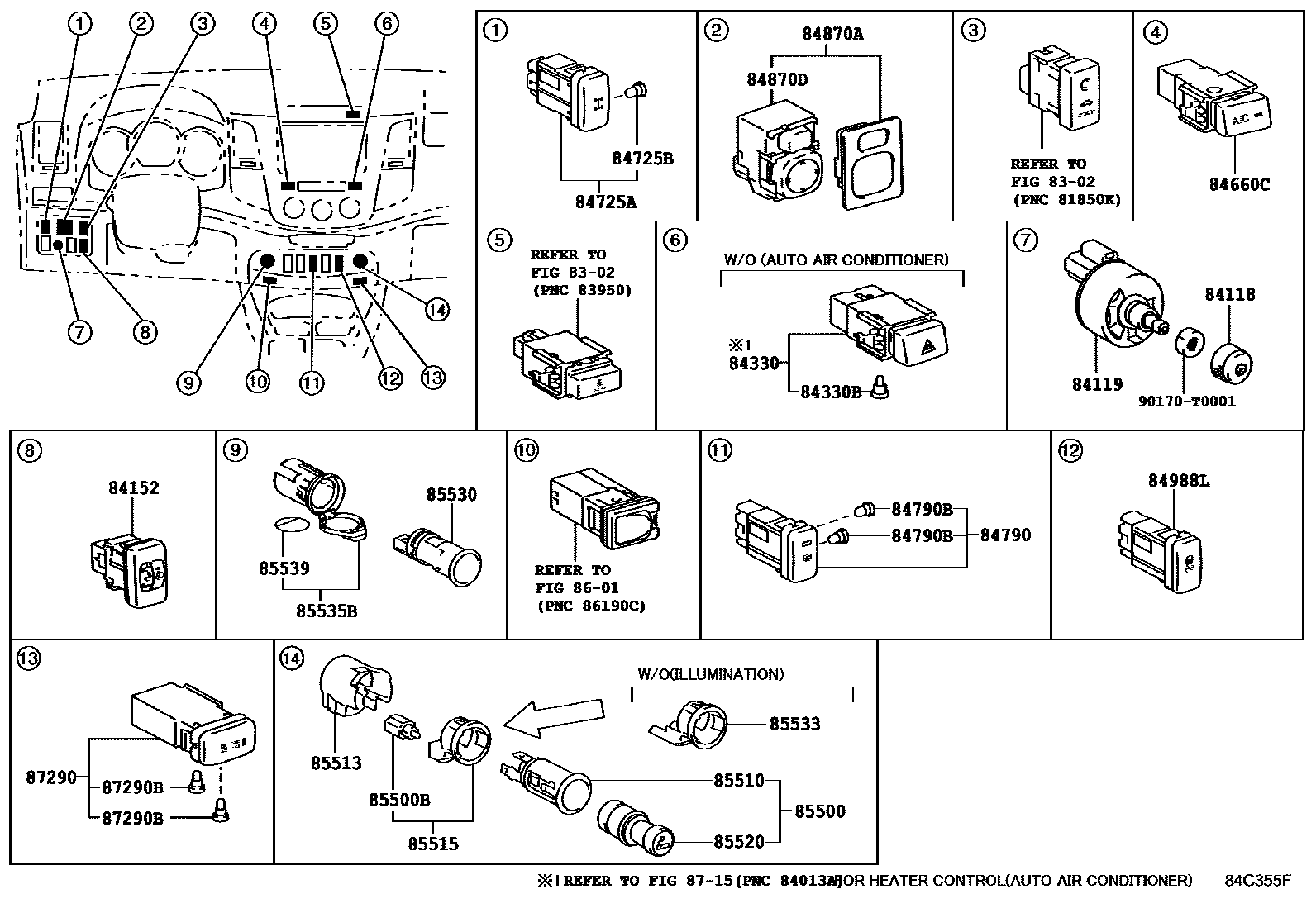

Diagram

15 parts
Toyota Hilux 2013 — Switch & Relay & Computer
