General 2013 HILUX KUN26L-PRASJG
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: ATM, 5-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA(EXCEPT ANCOM) Doors Description: DOUBLE CAB Color Code: 040 Production: 201204-201510 Model Short: KUN26L-PRASJG Region: OTHER Native Region: GR

Toyota Hilux 2013 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81980-06030 FLASHER ASSY, TURN SIGNAL 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Fitment:Matches · configuration
90982-08284 INSTRUMENT PANEL FUSIBLE LINK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:40A,TERM.:FEMALE,GRN Fitment:Matches · configuration
90982-09020 INSTRUMENT PANEL FUSE 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration
90982-09021 INSTRUMENT PANEL FUSE 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:10A,MINI FUSE,RED Fitment:Matches · configuration
90982-09022 INSTRUMENT PANEL FUSE 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration
90982-09023 INSTRUMENT PANEL FUSE 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration
82660-0K030 BLOCK ASSY, RELAY 1
Note:KUN26..4FC..CO;TGN16..SCB..SR;TGN36..DCB..SA;KUN25..LHD..SCB..SA;KUN35..(DCB,XTR)..DLX..SA;KUN15,25,TGN15..RHD..DLX..SA;KUN26,36..DCB..(5F,5FC)..SR..(LA,SA) Production:2013-08 – 2015-12 Fitment:Matches · configuration
82730-0K051 BLOCK ASSY, DRIVER SIDE JUNCTION 1
Note:KUN26..5FC..SR..IART;KUN15,26,35..LHD..DCB..5F..SR..(CO,GEN,PHL) Production:2013-08 – 2021-10 Fitment:Matches · configuration
84340-09040 SWITCH ASSY, STOP LAMP 1
Note:KUN25..SR;KUN25..SCB..MA;KUN25..DLX..(CO,GCC,GEN,IDN,LA,SA);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH Production:2011-07 – 2017-06 Replacements:84340-19025 (fitment: unknown) Fitment:Matches · configuration
84550-02030 SWITCH ASSY, PARKING BRAKE 1
Note:LAN15,25..LHD;GGN15,25,35,KUN1#,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:84550-16060 (fitment: unknown) Fitment:Matches · configuration
89530-71460 COMPUTER ASSY, TRANSMISSION CONTROL 1
Note:KUN26..5FC..IART Production:2012-04 – 2014-08 Fitment:Matches · configuration
84345-0K010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:KUN25..SR;KUN25..SCB..MA;KUN25..DLX..(CO,GCC,GEN,IDN,LA,SA);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH Production:2011-07 – … Replacements:84345-51010 (fitment: unknown) Fitment:Matches · configuration
90987-02028 RELAY, MAGNET-CLUTCH 1
Note:KUN26..XTR..SR..ARL;KUN16,26..DCB..(ARL,SA);KUN36..DCB..SR..(LA,SA);KUN26..5FC..SR..(GEN,LA);GGN15,25,35,KUN15..SR..(DCR,HTWC)..(ANCOM,ARL,SA);KUN2#,TGN26,36..LHD..(4FC,5F)..SR..(DCR,HDCR,HTWC,IART)..(LA,SA) Production:2011-07 – … Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 89533A —
90987-T2001 RELAY, TAILLAMP 1
Note:TGN36..SR..LA;KUN26..LHD..SADCB..SR;KUN2#,36..DCB..SR..(ARL,CO,LA,SA);KUN26..(THDCB,XTR)..SR..(ARL,GEN);GGN15,25,35,KUN15,TGN26..SR..(DCR,HTWC,HTWCF)..(ARL,LA,SA) Production:2011-07 – 2015-12 Replacements:90987-02027 (fitment: unknown) Fitment:Matches · configuration
89533-71070 COMPUTER, 4 WHEEL DRIVE CONTROL 1
Note:KUN26..4FC..LA;TGN26..SR..(CO,LA);KUN26..(5F,5FC)..SR..(CO,LA);KUN26,TGN26..DLX..(DCR,HTWCF)..LA Production:2011-07 – 2015-10 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85916L —
— Part does not apply to this vehicle configuration. 88280A —
90987-T2002 RELAY, IGNITION, NO.1 1
Note:2TRFE..TGN16..XTR;2TRFE..TGN16..SCB..SA;2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..DLX..(IDN,SA);2TRFE..TGN26..DCB..DLX..ANCOM;2TRFE..TGN36..(DCB,THDCB)..DLX;1KDFTV..KUN26..5FC..DCR..(GEN,LA);1KDFTV..KUN26..THDCB..(4FC,5F)..SR;1KDFTV,2KDFTV..KUN16,25..SR..(IDN,MA,SA,TH);1GRFE,1KDFTV..GGN15,25,35,KUN16..ANCOM,ARL,GEN,SA;2KDFTV..KUN35..(DCB,SCB,SMT,XTR)..(GEN,PHL,SA,TH);2KDFTV,2TRFE..KUN15,TGN26..(SMT,THDCB)..DLX..(DCR,HTWC);1KDFTV..KUN26..(DCB,SCB,SMT,XTR)..(ARL,CO,GEN,MA,PHL,SA,TH);1KDFTV,2KDFTV,2TRFE..KUN15,36,TGN26,36..SR..(DCR,HTWC,HTWCF);1KDFTV,2TRFE..KUN26,TGN16..(4FC,5F)..SR..(DCR,HTWC)..(GCC,LA);2KDFTV,2TRFE..KUN15,TGN26..DCB..5F..(DCR,HDCR,HTWCF)..(LA,TH);1KDFTV,2TRFE..KUN26,TGN16..(DCB,SMT)..(CNG,HTWC,IART)..(ARL,LA,SA,TH) Production:2011-07 – … Replacements:90987-02025 (fitment: unknown) Fitment:Matches · configuration
90987-T2001 RELAY, DEFOGGER 1
Note:KUN35..4FC;TGN16..XTR;KUN15..SMT..SR;KUN26..DCB..(CO,LA);TGN16..DCB..(ARL,SA,TH);KUN2#,TGN26..LHD..(SADCB,THDCB);KUN15..(DCB,XTR)..HDCR..(GEN,TH);KUN35..LHD..(DCB,THDCB)..DLX..(CO,GEN,LA);KUN25,TGN26..(DCB,SMT)..(ANCOM,CO,IDN,LA,MA,TH);KUN26,35..RHD..(DCB,SADCB,SMT,XTR)..(ARL,GEN,MA,TH);GGN15,25,KUN16,36,TGN36..(DCB,SMT,THDCB,XTR)..(ANCOM,ARL,GEN,LA,TH) Production:2011-07 – … Replacements:90987-02027 (fitment: unknown) Fitment:Matches · configuration
90982-09023 FUSE, FUSE BLOCK 1
Note:TGN16..XTR;KUN25..THDCB;KUN16..ARL,GEN;KUN26..SCB..5FC;KUN25..DCB..(CO,LA);KUN15..(SMT,XTR)..SR;KUN25,TGN16..SCB..SA;KUN15,26..RHD..SCB..SA;TGN16..DCB..(ARL,SA,TH);KUN35..CO,GEN,PHL,SA,TH;TGN36..(DCB,THDCB)..DLX;KUN26..DCB,SADCB,SMT,THDCB,XTR;KUN15,TGN26..DCB..(ANCOM,CO,LA,TH);KUN15,TGN26..(SMT,THDCB)..(DCR,HTWC);KUN16,25..RHD..(DCB,SMT)..(IDN,MA,SA,TH);KUN15,35..LHD..(DCB,XTR)..DLX..HDCR..(GEN,LA);GGN15,25,35,KUN36,TGN15..ANCOM,ARL,GEN,LA,SA,TH;KUN15,25,TGN16,36..(DCB,SCB)..SR..(GCC,GEN,LA,PHL,SA) Production:2011-07 – 2021-10 Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration
90982-09022 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration
90982-09024 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:25A,MINI FUSE Fitment:Matches · configuration
90987-T2003 RELAY, HEATER, NO.1 1
Note:KUN25..LHD..SA;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Replacements:90987-04010 (fitment: unknown) Fitment:Matches · configuration
90982-08280 FUSIBLE LINK 1
Note:TGN16..SMT..HTWC;KUN15,36..SMT..SR;KUN26,36..5F..SR..LA;KUN25..4FC..(GEN,IDN);KUN26..5FC..SR..(LA,TH);KUN25,35..(SMT,XTR)..5F..(GEN,TH);KUN26..(SCB,SMT,XTR)..5F..(ARL,TH) Production:2013-08 – 2021-10 Spec:30A,TERM.:FEMALE,PNK Fitment:Matches · configuration
90987-T2001 RELAY, ACC 1
Note:TGN36..HTWCF;KUN26..4FC..LA;KUN36,TGN26..CO,LA;KUN26..DCB..(5F,5FC)..(CO,LA);KUN25,35,TGN36..DCB..(HDCR,HTWC)..LA Production:2011-07 – 2015-10 Replacements:90987-02027 (fitment: unknown) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 87346K —
— Part does not apply to this vehicle configuration. 82810 —
— Part does not apply to this vehicle configuration. 82642A —
90119-T0420 standard —
Replacements:91671-80618 (fitment: unknown) Fitment:Matches · configuration
91671-80618 standard —
Fitment:Matches · configuration
90105-T0066 standard —
Replacements:91551-80612 (fitment: unknown) Fitment:Matches · configuration
90159-T0003 standard —
Fitment:Matches · configuration
90178-T0018 standard —
Fitment:Matches · configuration
82711-1E320 standard —
Fitment:Matches · configuration

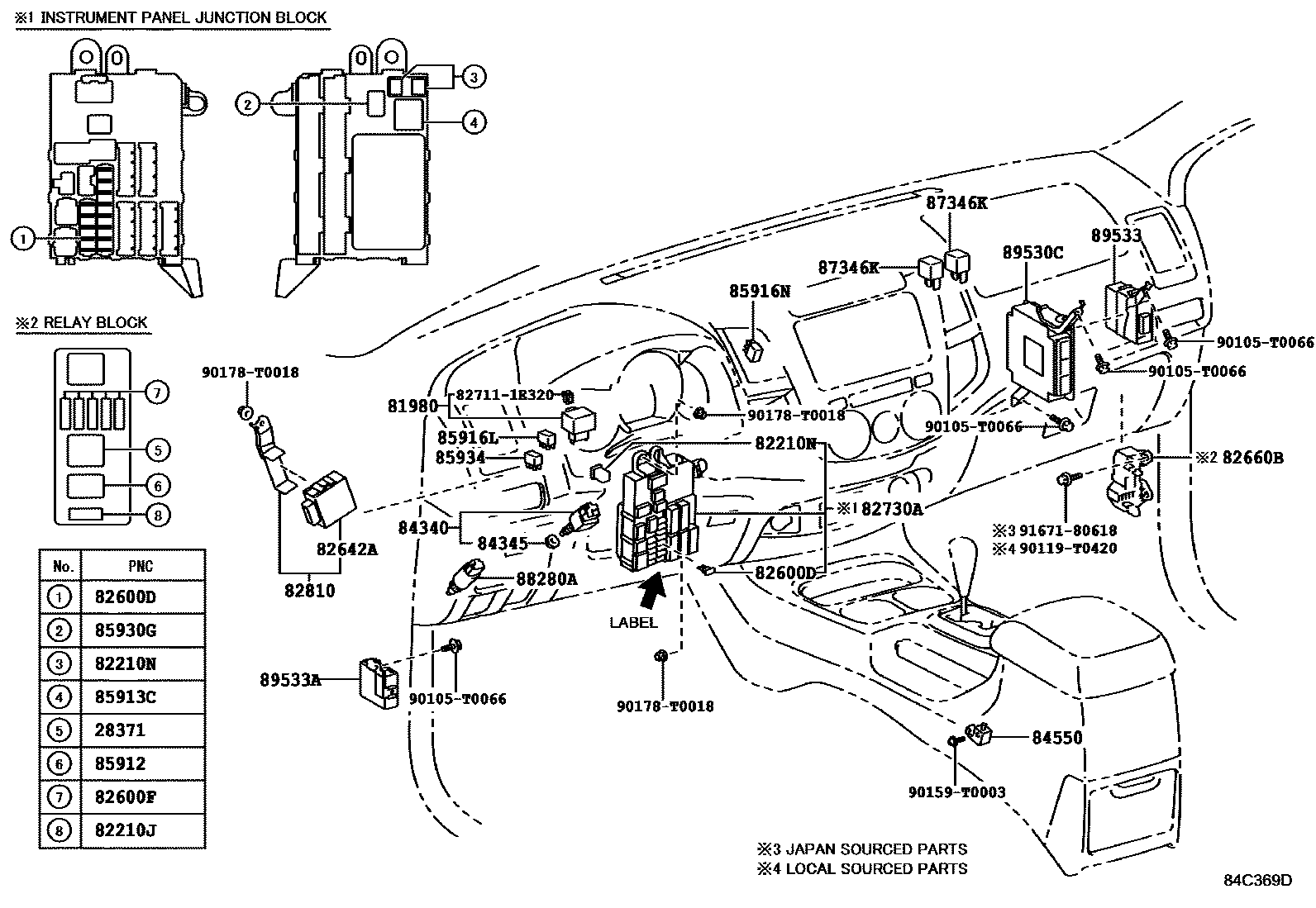

Diagram

29 parts
