Toyota Hilux 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83181-12020 | SENSOR, SPEEDOMETER | 1 | |
Note:GGN25,KUN26;KUN16,3#,TGN16,36..5F;GGN15,KUN15,25,LAN25,TGN11,26..(4FC,5F)..(DEFI,HDCR,HTWC,HTWCF) Production:2011-07 – … Fitment:Matches · configuration | |||
| 84222-35110 | SWITCH, TRANSFER INDICATOR, NO.3 | 1 | |
Note:LAN25..DCB;LAN25..LHD..SCB;GGN25,KUN2#,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Fitment:Matches · configuration | |||
| 84222-35090 | SWITCH, TRANSFER INDICATOR, NO.2 | 1 | |
Note:GGN25,KUN2#,TGN26..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – … Fitment:Matches · configuration | |||
| 84222-35080 | SWITCH, TRANSFER INDICATOR, NO.1 | 1 | |
Note:GGN25;KUN26..RHD;KUN25..5F..DLX..SA;KUN26..LHD..(4FC,5FC);KUN26..LHD..5F..SR..DCR;KUN25,TGN26..4FC..(GCC,GEN,LA,SA);KUN26,TGN26..DCB..5F..(HTWCF,IART);KUN25,TGN26..SR..(HDCR,HTWC)..(ANCOM,CO,GEN,IDN,LA,MA,SA) Production:2011-07 – … Fitment:Matches · configuration | |||
| 96711-24030 | RING, O (FOR SPEEDOMETER SENSOR) | 1 | |
Note:GGN25,KUN26;KUN16,3#,TGN16,36..5F;GGN15,KUN15,25,LAN25,TGN11,26..(4FC,5F)..(DEFI,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,SA,TH) Production:2011-07 – … Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84210 | — |
| 84540-04010 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:GGN15,25,35,KUN16,2#,3#..(4FC,5FC)..(ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH) Production:2013-09 – … Replacements:84540-71010 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 84540-71010 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:GGN15,25,35,KUN16,2#,3#..(4FC,5FC)..(ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH) Production:2013-09 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 83530-28010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KUN26..4FC..LA;KUN2#,3#..(5F,5FC)..(CO,LA) Production:2011-07 – 2015-10 Spec:DENSO Fitment:Matches · configuration | |||
| 83530-60010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KUN26..4FC..LA;KUN2#,3#..(5F,5FC)..(CO,LA) Production:2011-07 – 2015-10 Spec:YAZAKI Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 89491 | — |
| — | Part does not apply to this vehicle configuration. | 89491A | — |
| 82715-0K410 | standard | — | |
Fitment:Matches · configuration | |||
| 90929-01366 | standard | — | |
Fitment:Matches · configuration | |||
| 90430-18008 | standard | — | |
Fitment:Matches · configuration | |||
| 91651-40830 | standard | — | |
Fitment:Matches · configuration | |||
| 91651-40825 | standard | — | |
Fitment:Matches · configuration | |||
| 91651-60614 | standard | — | |
Fitment:Matches · configuration | |||

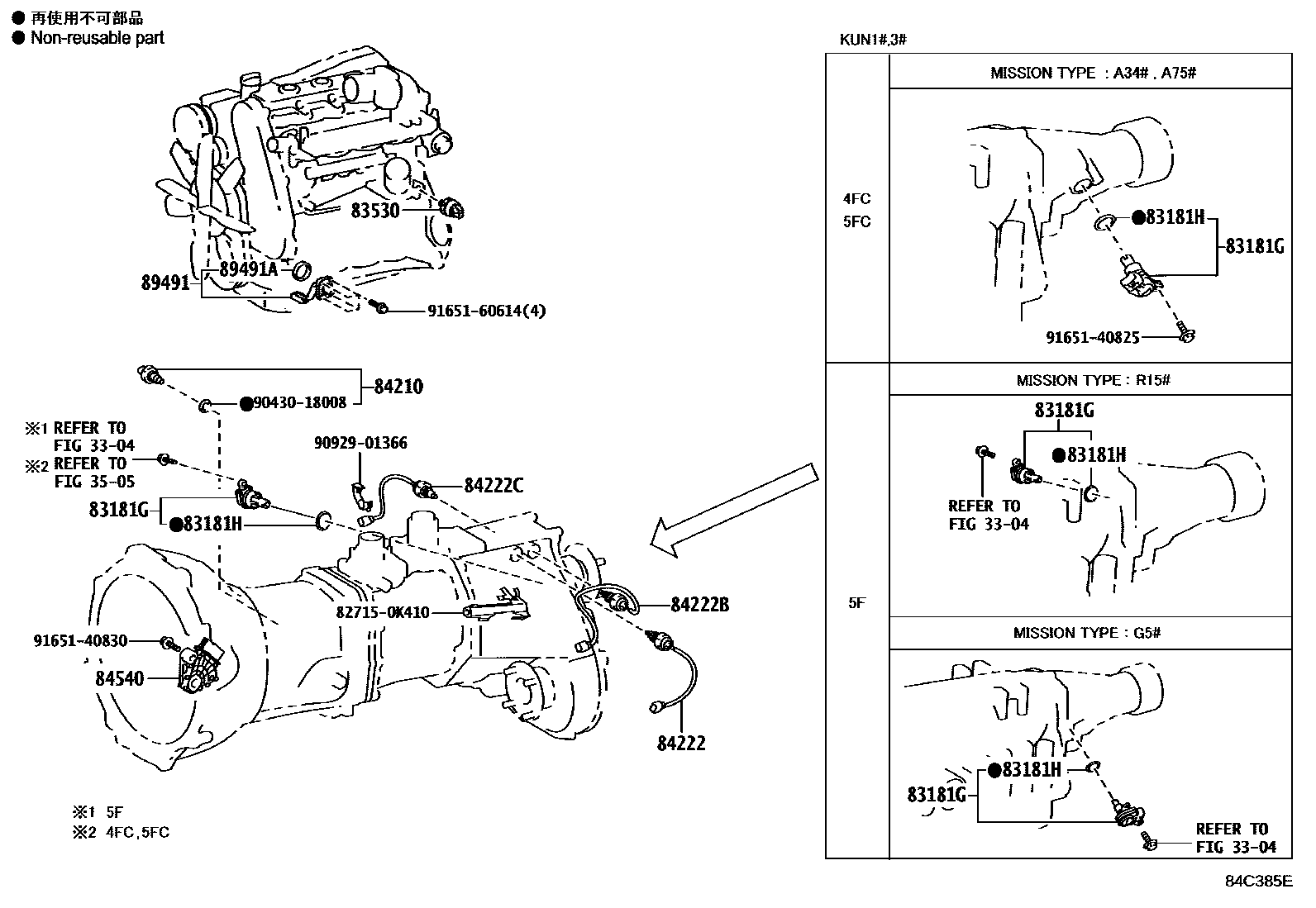

Diagram
15 parts
