Lexus LX450D-460-570 2020 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89430-60130 | COMPUTER ASSY, OUTER MIRROR CONTROL | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:RH | |||
| 89430-60140 | COMPUTER ASSY, OUTER MIRROR CONTROL | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:LH | |||
| 84231-53010 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 84231-53010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 89226-60070 | COMPUTER, MULTIPLEX NETWORK BODY, NO.2 | 1 | |
Note:URJ201..GCC Production:2015-09 – … Spec:TAILGATE DOOR EASY CLOSER-WITH | |||
| 84810-48050 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 4 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 840B0-60080 | SWITCH ASSY, POWER WINDOW W/BEZEL, REAR | 2 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 84040-30270 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 840A0-60030 | SWITCH ASSY, POWER WINDOW MASTER, W/BEZEL | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 84810-48040 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 840B0-60070 | SWITCH ASSY, POWER WINDOW W/BEZEL | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 84927-60080 | SWITCH, SEAT MEMORY | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 84190-60090-C0 | SWITCH ASSY, FOLD SEAT | 1 | |
Note:URJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5# | |||
| 86210-60151 | INVERTER ASSY, VOLTAGE | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Replacements:86210-60152 (fitment: unknown) | |||
| 85530-60240-C0 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:URJ201,VDJ201..GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5# | |||
| — | Part does not apply to this vehicle configuration. | 85531 | — |
| — | Part does not apply to this vehicle configuration. | 85536 | — |
| 90164-40103 | standard | — | |
| 90901-48003 | standard | — | |
| 90119-06983 | standard | — | |
| 90159-60303 | standard | — | |
| 90189-06227 | standard | — | |
| 90119-06915 | standard | — | |
| 90119-06A06 | standard | — | |

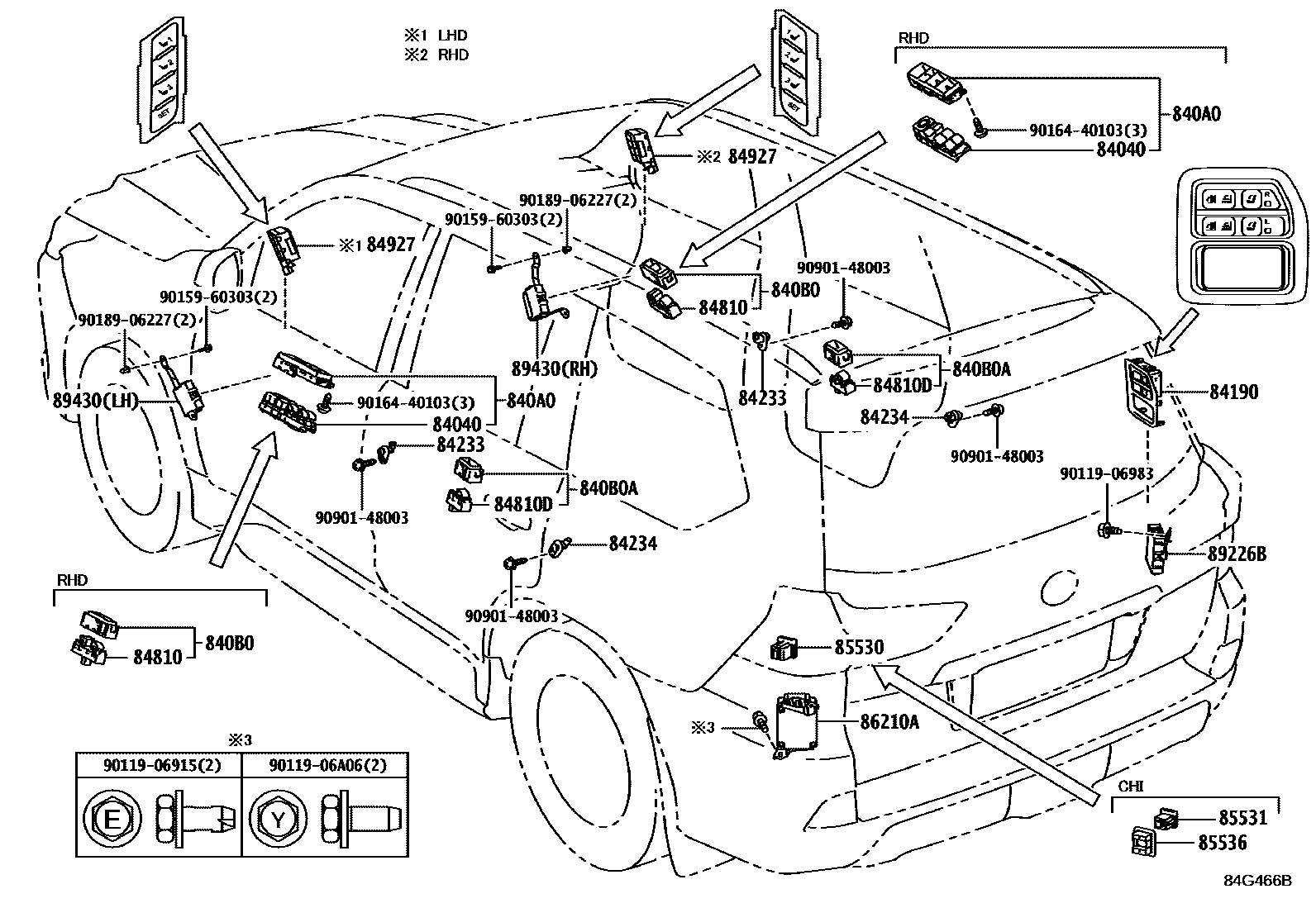

Diagram
22 parts
