Lexus LX450D-460-570 2020 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82817-60V00 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 895A0-60060 | RELAY ASSY, STOP LAMP CONTROL | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 89227-60090 | COMPUTER, MULTIPLEX TILT & TELESCOPIC | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 89650-60060 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 89533-60310 | COMPUTER, 4 WHEEL DRIVE CONTROL | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 89100-60031 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:URJ201,VDJ201..LHD Production:2016-03 – … | |||
| 88150-60142 | COMPUTER ASSY, DRIVING SUPPORT | 1 | |
Note:URJ201,VDJ201..LHD Production:2019-08 – … Spec:PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE | |||
| 85940-60140 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 89530-60621 | COMPUTER ASSY, TRANSMISSION CONTROL | 1 | |
Note:URJ201..GCC Production:2019-09 – … Spec:EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD) | |||
| 89181-60110 | COMPUTER, STEERING CONTROL | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 85903-52020 | COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 82817-30W60 | BRACKET, JUNCTION BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 82733-60P31 | BLOCK, COWL SIDE JUNCTION, LH | 1 | |
Note:URJ201,VDJ201..LHD Production:2016-07 – … | |||
| 82702-60050 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 90982-09019 | FUSE, FUSE BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | FUSE, FUSE BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | FUSE, FUSE BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | FUSE, FUSE BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … Spec:30A,FEMALE,PNK,32V | |||
| 82672-60110 | COVER, JUNCTION BLOCK | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 82731-60290 | BLOCK, COWL SIDE JUNCTION, RH | 1 | |
Note:URJ201,VDJ201..LHD Production:2015-09 – … | |||
| 84340-39015 | SWITCH ASSY, STOP LAMP | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 892G0-6A293 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:URJ201..GCC Production:2020-08 – … Spec:SYRIA, LEBANON, JORDAN SPEC&TAILGATE DOOR EASY CLOSER-WITH | |||
| 91673-80618 | standard | — | |
| 93249-55010 | standard | — | |
| 90159-50311 | standard | — | |
| 90159-60602 | standard | — | |
| 91673-80616 | standard | — | |
| 94150-80600 | standard | — | |
| 94151-80600 | standard | — | |
| 91673-A0622 | standard | — | |

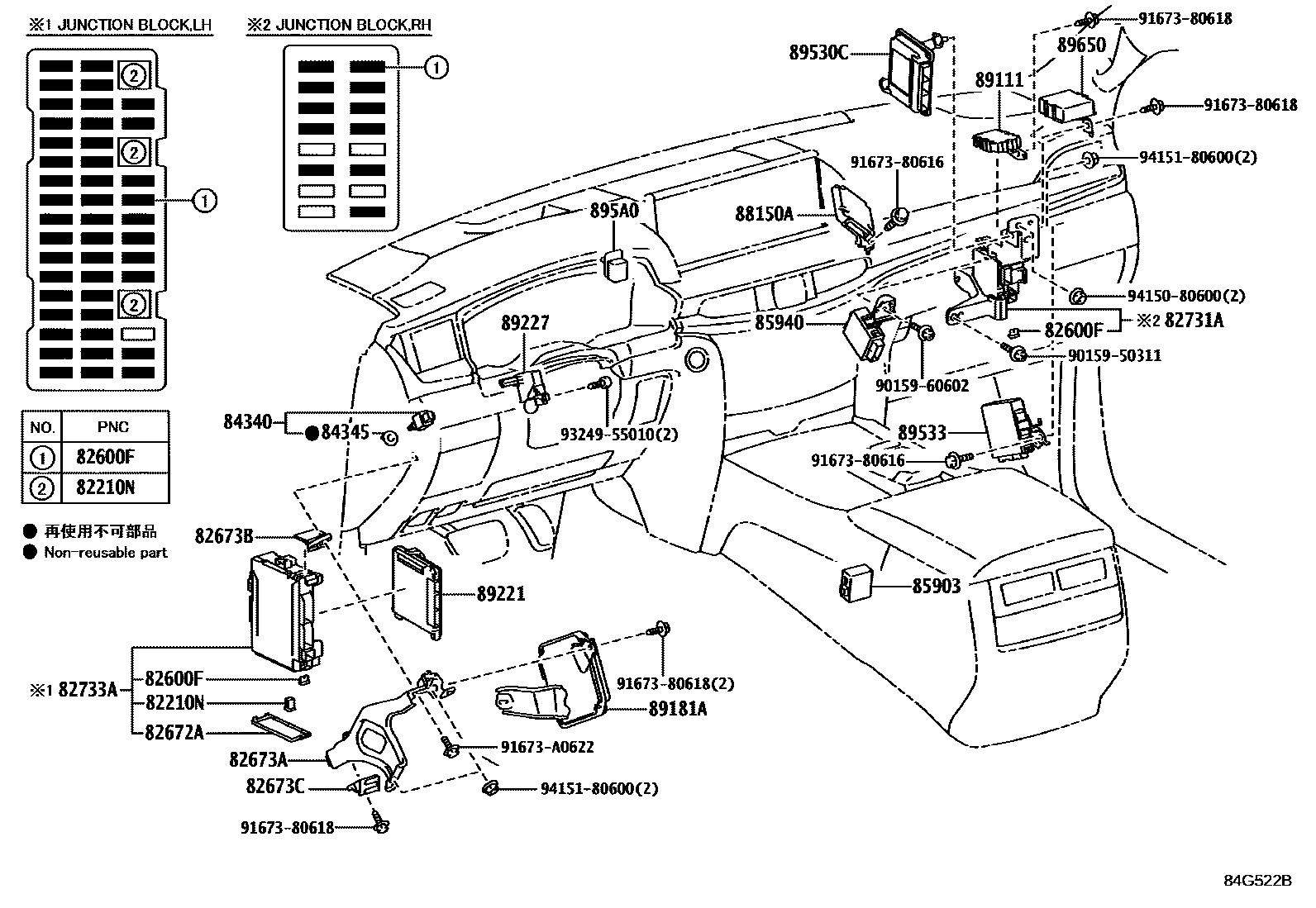

Diagram
34 parts
