Open RegionYearModelModelCode Details
General 2020 LX450D 460 570 URJ201L-GNZGKV
Catalog: LEXUS202608 Engine: 5700CC 32-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 217 Trim Code: LY33 Production: 201509-999999 Model Short: URJ201L-GNZGKV Region: OTHER Native Region: GR

Lexus LX450D-460-570 2020 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84921-53010-C0 KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,RH
84921-53020-C0 KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,LH
84921-53030-C0 KNOB, POWER SEAT SWITCH (FOR RECLINING) 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,RH
84921-53040-C0 KNOB, POWER SEAT SWITCH (FOR RECLINING) 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,LH
84070-60140 SWITCH, FRONT POWER SEAT, LH 1
Note:URJ201,VDJ201..LHD Production:2015-09 – …
84928-33010-C0 SWITCH, SEAT VARIABLE CUSHION 1
Note:URJ201,VDJ201..GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#
89715-60020 COMPUTER, FOLD SEAT CONTROL 2
Note:URJ201 Production:2015-09 – …
84922-58010 SWITCH, FRONT POWER SEAT, RH 1
Note:URJ201,VDJ201..LHD Production:2015-09 – …
84920-60040-C0 SWITCH ASSY, POWER SEAT 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,RH
84920-60050-C0 SWITCH ASSY, POWER SEAT 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,LH
84923-60010-C0 SWITCH, REAR POWER SEAT 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,RH
84923-60020-C0 SWITCH, REAR POWER SEAT 1
Note:URJ201,VDJ201..ARL,GCC Production:2015-09 – … Spec:BLACK,TRIM05,06,2#,3#,4#,5#,LH
— Part does not apply to this vehicle configuration. 85861 —
93560-54010 standard —
90167-40044 standard —
90167-40058 standard —

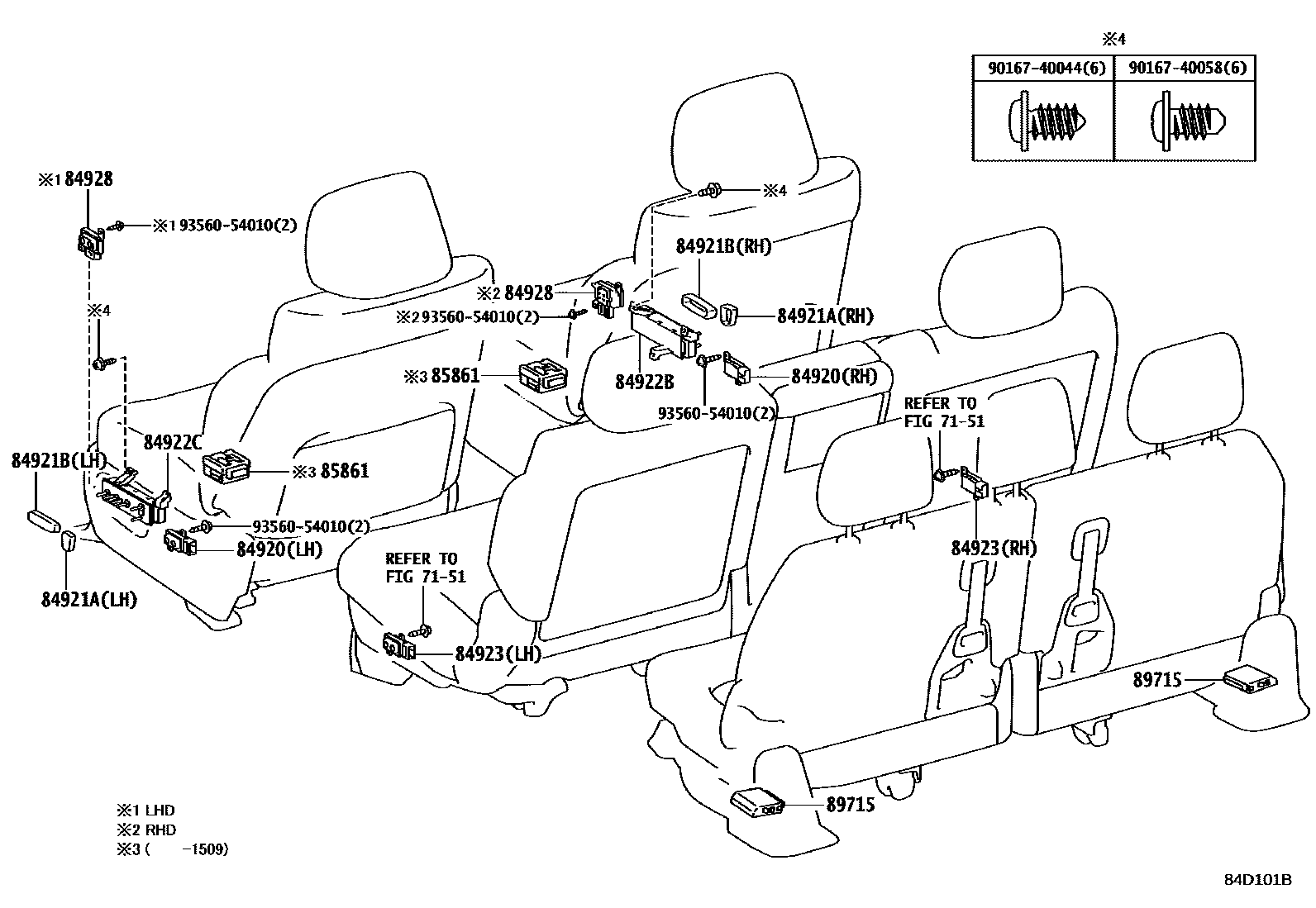

Diagram

15 parts
Lexus LX450D-460-570 2020 — Switch & Relay & Computer
