Toyota CARINA-E-UKP 1997 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 89421D | — |
| — | Part does not apply to this vehicle configuration. | 28624 | — |
| — | Part does not apply to this vehicle configuration. | 89422A | — |
| — | Part does not apply to this vehicle configuration. | 83390 | — |
| — | Part does not apply to this vehicle configuration. | 85959A | — |
| — | Part does not apply to this vehicle configuration. | 84461 | — |
| 90084-98011 | RELAY, COOLING FAN | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1996-03 – 1997-10 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28621 | — |
| 28300-10020 | RELAY ASSY, STARTER | 1 | |
Note:4AFE,7AFE,2C#,3SFE..AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28610 | — |
| 85942-05010 | RELAY, HEADLAMP CLEANER CONTROL | 1 | |
Note:AT191..UKP..GL;AT190..UKP..LHD;CT190,ST191..UKP;AT191..UKP..LHD..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration | |||
| 90987-02006 | RELAY, HEADLAMP | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 82662-20100 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:AT19#,CT190,ST191..UKP..LHD Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 82662-20080 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:AT19#,CT190,ST191..UKP..LHD Production:1996-01 – 1997-10 Spec:W(AIR CONDITIONER) Fitment:Matches · configuration | |||
| 90987-04002 | RELAY, IGNITION, NO.1 | 1 | |
Note:4AFE,7AFE,2C#,3SFE..AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 85926-30020 | RELAY, HEADLAMP DIMMER | 1 | |
Note:AT19#,CT190,ST191..UKP..LHD Production:1994-12 – 1997-10 Fitment:Matches · configuration | |||
| 90987-04002 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 86530-20070 | RELAY ASSY, HORN | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28610A | — |
| 90982-10001 | FUSE, MEDIUM CURRENT | 2 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Spec:30A,PINK Fitment:Matches · configuration | |||
| 90982-10001 | FUSE, MEDIUM CURRENT | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1996-01 – 1997-10 Spec:30A,PINK Fitment:Matches · configuration | |||
| 90982-10002 | FUSE, MEDIUM CURRENT | 2 | |
Note:AT19#,CT190,ST191..UKP Production:1996-01 – 1997-10 Spec:40A,GREEN Fitment:Matches · configuration | |||
| 90080-82005 | FUSE, FUSE BLOCK | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Replacements:90982-07011 (fitment: unknown) Spec:30A,GREEN Fitment:Matches · configuration | |||
| 90080-82012 | FUSE, FUSE BLOCK | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Replacements:90982-09002 (fitment: unknown) Spec:10A,RED Fitment:Matches · configuration | |||
| 90080-82013 | FUSE, FUSE BLOCK | 3 | |
Note:AT19#,CT190..UKP..LHD Production:1992-12 – 1997-10 Replacements:90982-09003 (fitment: unknown) Spec:15A,BLUE Fitment:Matches · configuration | |||
| 90080-82015 | FUSE, FUSE BLOCK | 1 | |
Note:AT19#..UKP Production:1992-12 – 1997-10 Replacements:90982-09005 (fitment: unknown) Spec:7.5A,BROWN Fitment:Matches · configuration | |||
| 90080-82012 | FUSE, FUSE BLOCK | 3 | |
Note:AT19#,CT190,ST191..UKP Production:1996-01 – 1997-10 Replacements:90982-09002 (fitment: unknown) Spec:10A,RED Fitment:Matches · configuration | |||
| 90080-82013 | FUSE, FUSE BLOCK | 4 | |
Note:AT19#,CT190,ST191..UKP Production:1996-01 – 1997-10 Replacements:90982-09003 (fitment: unknown) Spec:15A,BLUE Fitment:Matches · configuration | |||
| 90080-82013 | FUSE, FUSE BLOCK | 5 | |
Note:ST191..UKP..LHD;AT19#,CT190..UKP Production:1996-01 – 1997-10 Replacements:90982-09003 (fitment: unknown) Spec:15A,BLUE Fitment:Matches · configuration | |||
| 90080-82014 | FUSE, FUSE BLOCK | 1 | |
Note:AT19#..UKP;CT190,ST191..UKP..LHD Production:1996-01 – 1997-10 Replacements:90982-09004 (fitment: unknown) Spec:20A,YELLOW Fitment:Matches · configuration | |||
| 90080-82014 | FUSE, FUSE BLOCK | 2 | |
Note:AT19#,CT190..UKP..LHD..MTM..XL Production:1996-01 – 1997-10 Replacements:90982-09004 (fitment: unknown) Spec:20A,YELLOW Fitment:Matches · configuration | |||
| 90080-82015 | FUSE, FUSE BLOCK | 2 | |
Note:AT19#,CT190,ST191..UKP..LHD Production:1996-01 – 1997-10 Replacements:90982-09005 (fitment: unknown) Spec:7.5A,BROWN Fitment:Matches · configuration | |||
| 82673-20040 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:AT19#,CT190,ST191..UKP..LHD Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 82673-20070 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:AT19#,ST191..UKP..LHD Production:1996-01 – 1997-10 Spec:W(AIR CONDITIONER) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85959D | — |
| 90987-04003 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 90987-04003 | RELAY ASSY, COOLER | 1 | |
Note:AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration | |||
| 90080-87005 | RELAY, COOLING FAN, NO.3 | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 90080-87005 | RELAY ASSY, COOLER | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1996-01 – 1997-10 Spec:W(AIR CONDITIONER)---MAKER OPTION Fitment:Matches · configuration | |||
| 90987-02009 | RELAY ASSY, COOLER | 2 | |
Note:AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Spec:W(AIR CONDITIONER)---DEALER OPTION Fitment:Matches · configuration | |||
| 82672-05020 | COVER, JUNCTION BLOCK | 1 | |
Note:AT19#..UKP..LHD Production:1993-12 – 1997-10 Spec:UPPER Fitment:Matches · configuration | |||
| 82674-05010 | COVER, JUNCTION BLOCK | 1 | |
Note:AT19#..UKP Production:1993-12 – 1997-10 Spec:LOWER Fitment:Matches · configuration | |||
| 82616-12010 | PULLER, FUSE | 1 | |
Note:AT19#,CT190,ST191..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration | |||
| 82671-05010 | BLOCK, JUNCTION | 1 | |
Note:AT19#..UKP Production:1993-12 – 1997-10 Fitment:Matches · configuration | |||
| 82603-20050 | BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | 1 | |
Note:AT19#..UKP Production:1994-02 – 1997-10 Fitment:Matches · configuration | |||
| 91651-40614 | standard | — | |
Fitment:Matches · configuration | |||
| 90189-05006 | standard | — | |
Fitment:Matches · configuration | |||
| 90179-05015 | standard | — | |
Fitment:Matches · configuration | |||
| 19877-66010 | standard | — | |
Fitment:Matches · configuration | |||
| 90430-12221 | standard | — | |
Fitment:Matches · configuration | |||
| 82711-3H430 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-06171 | standard | — | |
Fitment:Matches · configuration | |||
| 90179-06060 | standard | — | |
Fitment:Matches · configuration | |||
| 91635-60616 | standard | — | |
Replacements:91631-J0612 (fitment: unknown) Fitment:Matches · configuration | |||
| 91651-F0616 | standard | — | |
Fitment:Matches · configuration | |||
| 91651-B0616 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-06595 | standard | — | |
Fitment:Matches · configuration | |||
| 90179-06009 | standard | — | |
Replacements:90179-06156 (fitment: unknown) Fitment:Matches · configuration | |||

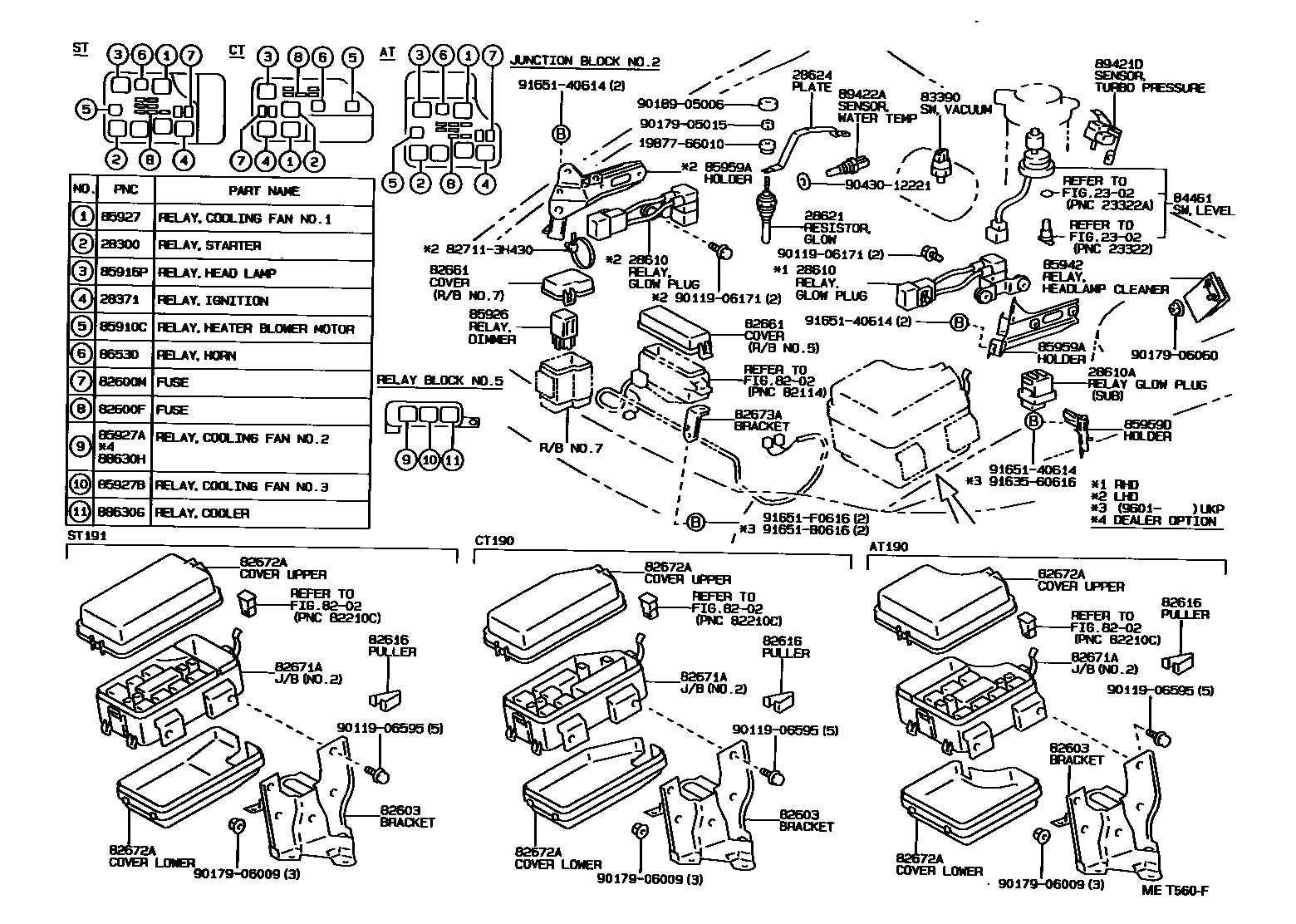

Diagram
48 parts
