Open RegionYearModelModelCode Details
Europe 1997 CARINA E UKP AT190L-BWMDKW
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION Body Description: WAGON Vehicle Grade: XL TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 3L3 Production: 199505-199710 Model Short: AT190L-BWMDKW Region: EU Native Region: EU

Toyota CARINA-E-UKP 1997 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 89615 —
89621-05010 IGNITER ASSY 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
89629-05010 BRACKET, IGNITER ASSY 1
Note:AT191..UKP;AT190..UKP..MTM Production:1994-05 – 1997-10 Fitment:Matches · configuration
83530-05010 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 1
Note:AT19#..UKP Production:1996-01 – 1997-10 Replacements:83530-60020 (fitment: unknown) Spec:JAEGER Fitment:Matches · configuration
83530-30090 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 1
Note:AT19#..UKP Production:1996-01 – 1997-10 Replacements:83530-60020 (fitment: unknown) Spec:YAZAKI Fitment:Matches · configuration
83420-05010 GAGE ASSY, WATER TEMPERATURE SENDER 1
Note:AT19#..UKP Production:1996-01 – 1997-10 Replacements:83420-20040 (fitment: unknown) Spec:JAEGER Fitment:Matches · configuration
83420-20040 GAGE ASSY, WATER TEMPERATURE SENDER 1
Note:AT19#,ST191..UKP Production:1996-01 – 1997-10 Spec:YAZAKI Fitment:Matches · configuration
89428-12160 SWITCH, TEMPERATURE DETECT, NO.2 1
Note:AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
84210-12040 SWITCH ASSY, BACK-UP LAMP 1
Note:AT19#,CT190,ST191..UKP..MTM Production:1992-12 – 1997-10 Replacements:84210-52050 (fitment: unknown) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 84540 —
— Part does not apply to this vehicle configuration. 89465 —
89463-29055 SENSOR, LEAN MIXTURE 1
Note:AT19#..UKP..MTM Production:1996-05 – 1997-10 Fitment:Matches · configuration
89466-20020 GASKET, OXYGEN SENSOR 1
Note:AT19#..UKP Production:1996-01 – 1997-10 Fitment:Matches · configuration
90119-06157 standard —
Fitment:Matches · configuration
90430-18008 standard —
Fitment:Matches · configuration
91651-40625 standard —
Fitment:Matches · configuration
90179-08059 standard —
Replacements:90179-08101 (fitment: unknown) Fitment:Matches · configuration

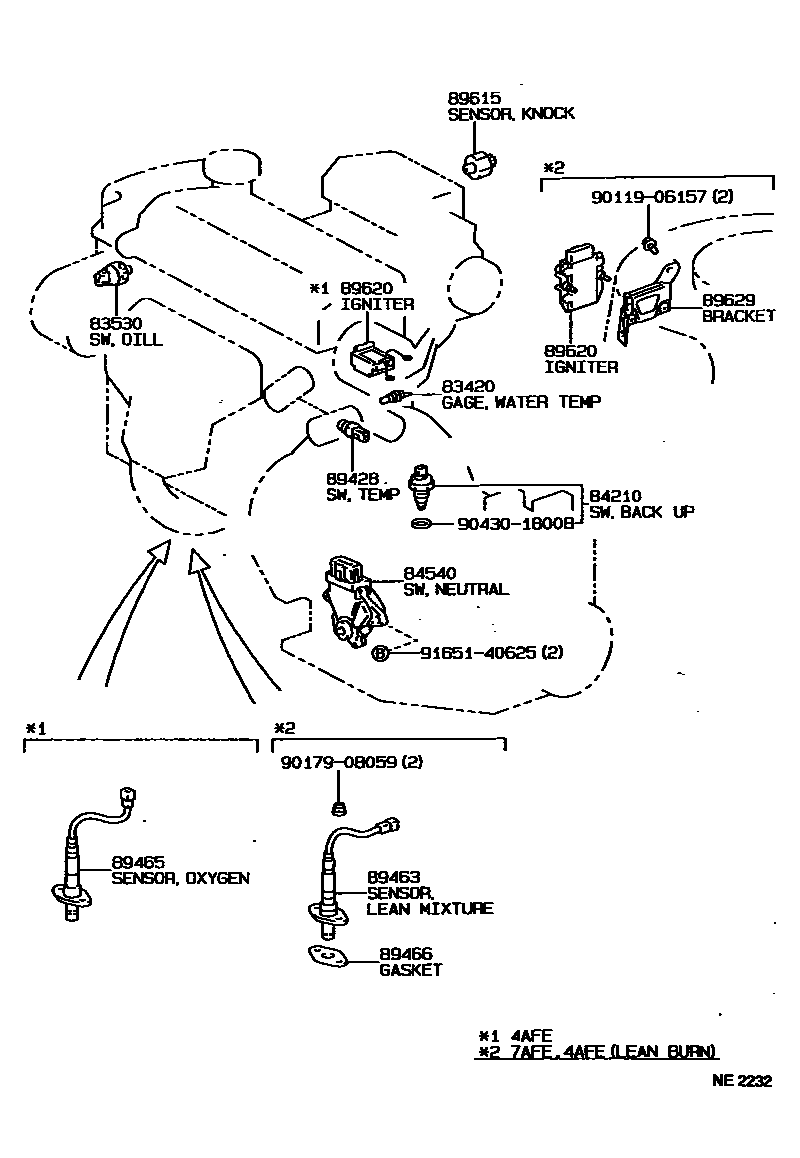

Diagram

14 parts
Toyota CARINA-E-UKP 1997 — Switch & Relay & Computer
