Toyota Corolla-Altis 2012 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84610F | — |
| 84306-0D100 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:ZRE141,142..ATM..(18J,GLI,XLI) Production:2010-07 – 2013-10 Replacements:84306-52100 (fitment: unknown) Fitment:Matches · configuration | |||
| 84306-0D110 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:ZRE142..GCC Production:2010-07 – 2013-10 Replacements:84306-52090 (fitment: unknown) Spec:CRUISE CONTROL-WITH(ELECTRIC TYPE) Fitment:Matches · configuration | |||
| 84306-0D110 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:ZRE142..GCC Production:2010-07 – 2013-10 Replacements:84306-52090 (fitment: unknown) Spec:CRUISE CONTROL-WITH(ELECTRIC TYPE)&STEERING WHEEL-4-SPOKE,LEATHER,WITH(AUDIO SWITCH) Fitment:Matches · configuration | |||
| 84306-0D110 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Replacements:84306-52090 (fitment: unknown) Spec:STEERING WHEEL-4-SPOKE,LEATHER,WITH(AUDIO SWITCH) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 89245B | — |
| 82291-42010 | WIRE, TO SOLENOID | 1 | |
Note:ZRE141,142..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration | |||
| 84450-12200 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:ZRE143..MA;ZRE142,143..(6F,CVFC)..(18J,20G)..(IDN,TH);CE140,NDE140,NZE140,ZRE141..16E,16G,16J,20D,20DSA,D,E,G,GLI,N,XLI;ZRE142,ZZE141..(16G,18E,18EL,18G,18J,E,GLI,LIMO,XLI)..(GCC,IND,MA,TAIW,TH,VN) Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 85432-71010 | SOLENOID, KEY INTERLOCK | 1 | |
Note:ZRE141,142..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration | |||
| 84052-71010 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:ZRE141,142..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84250A | — |
| 84247-12080 | SWITCH, STEERING PAD, LH | 1 | |
Note:ZRE142..GCC Production:2010-07 – 2013-10 Spec:CRUISE CONTROL-WITH(ELECTRIC TYPE)&STEERING WHEEL-4-SPOKE,LEATHER,WITH(AUDIO SWITCH) Fitment:Matches · configuration | |||
| 84247-12080 | SWITCH, STEERING PAD, LH | 1 | |
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Spec:STEERING WHEEL-4-SPOKE,LEATHER,WITH(AUDIO SWITCH) Fitment:Matches · configuration | |||
| 84140-02700 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Replacements:84140-12701 (fitment: unknown) Fitment:Matches · configuration | |||
| 84140-02710 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Replacements:84140-12711 (fitment: unknown) Spec:FRONT FOG LAMP-WITH Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84523 | — |
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84652-02571 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:ZRE142..GCC Production:2010-07 – 2013-10 Replacements:84652-12A30 (fitment: unknown) Fitment:Matches · configuration | |||
| 84652-06211 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Replacements:84652-12A20 (fitment: unknown) Spec:INTERMITTENT WIPER-WITH(TIME ADJUSTMENT) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84113B | — |
| — | Part does not apply to this vehicle configuration. | 84113A | — |
| 90168-40129 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-T0007 | standard | — | |
Replacements:90159-50199 (fitment: unknown) Fitment:Matches · configuration | |||
| 90159-50199 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-50265 | standard | — | |
Fitment:Matches · configuration | |||
| 90168-40113 | standard | — | |
Fitment:Matches · configuration | |||

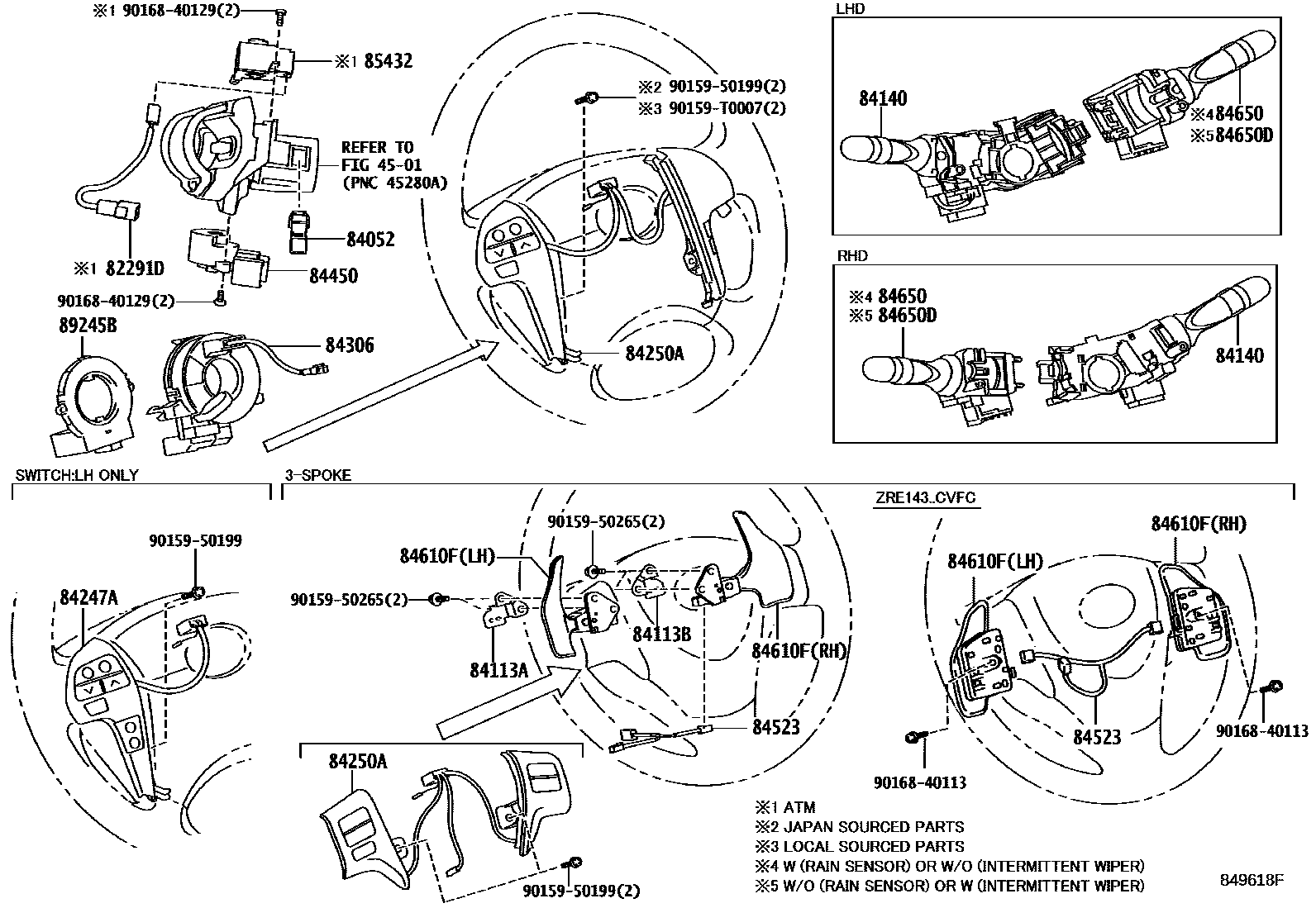

Diagram
19 parts
