Open RegionYearModelModelCode Details
General 2012 COROLLA ALTIS ZRE142L-GEPNKV
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: GLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FH40 Production: 201007-201310 Model Short: ZRE142L-GEPNKV Region: OTHER Native Region: GR

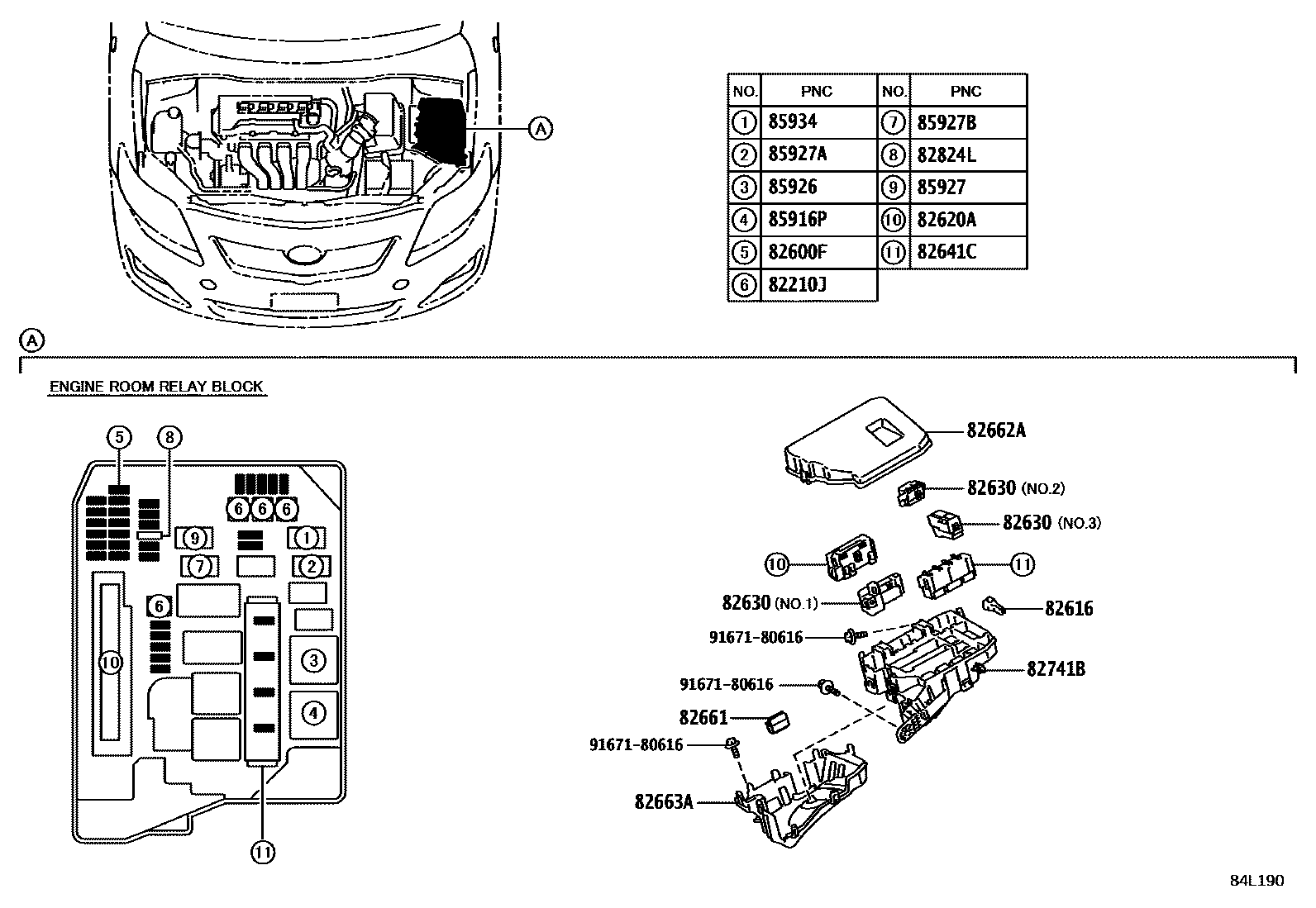

Toyota Corolla-Altis 2012 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 85927A —
90987-02025 RELAY, HEADLAMP 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration
90987-04010 RELAY, HEADLAMP DIMMER 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2012-05 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85934 —
90982-09020 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration
90982-09021 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:10A,MINI FUSE,RED Fitment:Matches · configuration
90982-09022 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration
90982-09023 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration
90982-09024 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:25A,MINI FUSE Fitment:Matches · configuration
90982-09025 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:30A,MINI FUSE,GRN Fitment:Matches · configuration
90982-08295 FUSIBLE LINK 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) Production:2010-07 – … Spec:30A,FEMALE,PNK,58V Fitment:Matches · configuration
90982-08295 FUSIBLE LINK 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) Production:2010-07 – … Fitment:Matches · configuration
82824-20140 PIN, SHORT 1
Note:ZRE141..16V;ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142..GCC,IDN,IND,MA,PKN,TAIW,TH Production:2010-07 – 2014-07 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85927B —
90987-02027 RELAY, COOLING FAN 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
90987-T2001 RELAY, COOLING FAN 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) Production:2010-07 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
82663-12100 COVER, RELAY BLOCK, LOWER, NO.2 1
Note:ZRE141..16V;ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;NZE140,ZRE141,142..GCC,IDN,MA,PKN,TAIW,TH Production:2010-07 – 2014-07 Fitment:Matches · configuration
82741-12110 BLOCK, ENGINE ROOM RELAY 1
Note:ZRE141..16V;ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142..GCC,IDN,IND,MA,PKN,TAIW,TH Production:2010-07 – 2014-07 Fitment:Matches · configuration
82641-47020 RELAY, INTEGRATION NO.2 1
Note:ZRE141..16V;ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142..GCC,IDN,IND,MA,PKN,TAIW,TH Production:2010-07 – 2014-07 Fitment:Matches · configuration
82620-12280 BLOCK ASSY, FUSIBLE LINK 1
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW;ZRE141,142..(16V,18E)..(PHL,TH)..HTWC;ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
82631-12070 HOLDER ASSY, FUSE 1
Note:ZRE141..16V;ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142..GCC,IDN,IND,MA,PKN,TAIW,TH Production:2010-07 – 2014-07 Spec:NO.1 Fitment:Matches · configuration
82631-12080 HOLDER ASSY, FUSE 1
Note:ZRE141..16V;ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142..GCC,IDN,IND,MA,PKN,TAIW,TH Production:2010-07 – 2014-07 Spec:NO.2 Fitment:Matches · configuration
82662-12370 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:ZRE142..HTWCF;ZRE142..GCC,IDN,MA,VN;ZRE141..16E,16G,16V,D,N,XLI;ZRE141,143..(6F,CVFC)..(16J,20G)..TH Production:2010-07 – … Fitment:Matches · configuration
82616-58010 PULLER, FUSE 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – 2014-07 Fitment:Matches · configuration
82661-12310 COVER, RELAY BLOCK, NO.1 1
Note:ZRE141..16V;ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142..GCC,IDN,IND,MA,PKN,TAIW,TH Production:2010-07 – 2014-07 Fitment:Matches · configuration
91671-80616 standard —
Fitment:Matches · configuration

Diagram

23 parts
