General 2009 COROLLA ALTIS ZZE142L-GEPDKV
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: XLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FH40 Production: 200901-201007 Model Short: ZZE142L-GEPDKV Region: OTHER Native Region: GR

Toyota Corolla-Altis 2009 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 85927A —
90987-02025 RELAY, HEADLAMP 1
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Fitment:Matches · configuration
90987-04010 RELAY, HEADLAMP DIMMER 1
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85934 —
90982-09020 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2007-12 – 2011-05 Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration
90982-09021 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2007-12 – 2011-05 Spec:10A,MINI FUSE,RED Fitment:Matches · configuration
90982-09022 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2007-12 – 2011-05 Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration
90982-09023 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2007-12 – 2011-05 Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration
90982-09024 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2007-12 – 2011-05 Spec:25A,MINI FUSE Fitment:Matches · configuration
90982-09025 FUSE, FUSE BLOCK 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2007-12 – 2011-05 Spec:30A,MINI FUSE,GRN Fitment:Matches · configuration
90982-08295 FUSIBLE LINK 1
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Spec:30A,FEMALE,PNK,58V Fitment:Matches · configuration
90982-08295 FUSIBLE LINK 1
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Fitment:Matches · configuration
82824-20140 PIN, SHORT 1
Note:CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) Production:2007-12 – 2011-05 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85927B —
90987-02027 RELAY, COOLING FAN 1
Note:ZRE143,ZZE14#..(20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2008-11 – 2010-07 Spec:P/N LABEL=9098702027 Fitment:Matches · configuration
90987-T2001 RELAY, COOLING FAN 1
Note:ZRE143,ZZE14#..(20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2008-11 – 2010-07 Replacements:90987-02027 (fitment: unknown) Spec:P/N LABEL=90987T2001 Fitment:Matches · configuration
82663-12100 COVER, RELAY BLOCK, LOWER, NO.2 1
Note:NZE140;ZRE143,ZZE14#..(4FC,5F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,GLI,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH,VN) Production:2007-12 – 2011-04 Fitment:Matches · configuration
82741-12110 BLOCK, ENGINE ROOM RELAY 1
Note:CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) Production:2007-12 – 2011-05 Fitment:Matches · configuration
82641-47020 RELAY, INTEGRATION NO.2 1
Note:CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) Production:2007-12 – 2011-05 Fitment:Matches · configuration
82620-12280 BLOCK ASSY, FUSIBLE LINK 1
Note:CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) Production:2007-12 – 2011-05 Fitment:Matches · configuration
82631-12070 HOLDER ASSY, FUSE 1
Note:CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) Production:2007-12 – 2011-05 Spec:NO.1 Fitment:Matches · configuration
82631-12080 HOLDER ASSY, FUSE 1
Note:CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) Production:2007-12 – 2011-05 Spec:NO.2 Fitment:Matches · configuration
82631-12090 HOLDER ASSY, FUSE 1
Note:CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) Production:2007-12 – 2011-05 Spec:NO.3 Fitment:Matches · configuration
82662-12370 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
82616-58010 PULLER, FUSE 1
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2007-12 – 2011-05 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 82661 —
91671-80616 standard —
Fitment:Matches · configuration

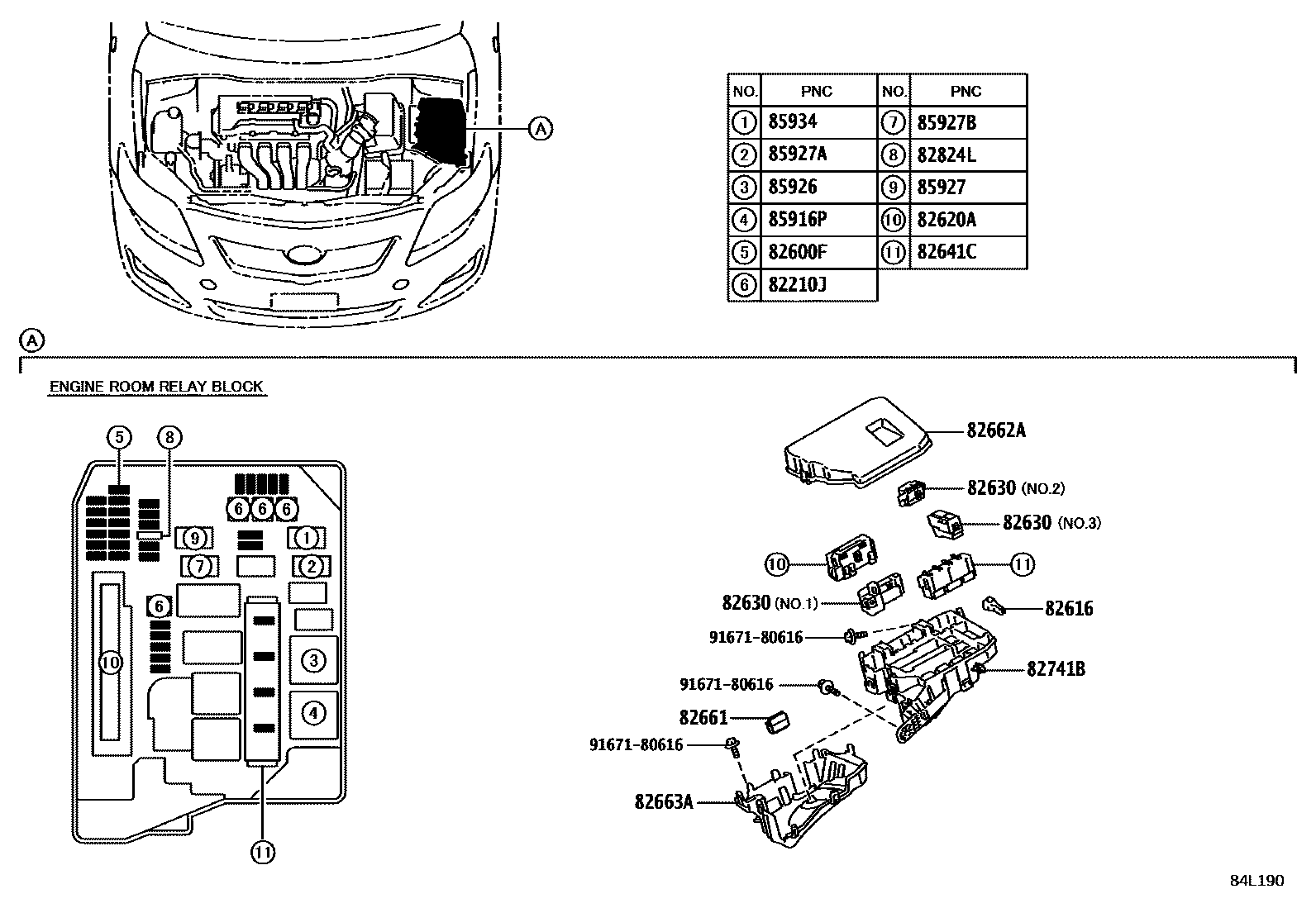

Diagram

23 parts
