Toyota Fortuner 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0K190 | GAGE ASSY, FUEL SENDER | 1 | |
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Replacements:83320-0K191 (fitment: unknown) | |||
| 84840-0K030 | SWITCH ASSY, BACK DOOR OPENER | 1 | |
Note:TGN156..H;TGN166..M..LA;GUN156..RHD..SA;GUN156..S..IART;TGN156..(M,S)..(GEN,LA,MA,VN);TGN166..6FC..(GEN,IDN,PKN,SA,VN);GGN155,GUN155,165..IDNSU..H..GCC;GUN155,165..(H,L,M)..(GEN,IDN,MA,PH,SA);GGN155,GUN166,TGN168..(H,M,S)..(BZAGT,GEN,LA,SA);GGN165,GUN156,KUN156..(AGTSU,IDNSU,PKNSU,VNSUV)..(H,M) Production:2015-12 – 2021-04 | |||
| 84040-0K090 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:TGN156..6FC..GEN;GUN15#,165,KUN156,TGN166..RHD..IDNSU..(H,M) Production:2016-01 – 2017-12 Replacements:84040-0K091 (fitment: unknown) | |||
| 84810-0K130 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(H,M);TGN156,166..(IDNSU,VNSUV)..(H,M,S)..(GEN,IDN,LA,VN) Production:2016-01 – 2020-08 | |||
| 84231-0K080 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV Production:2016-01 – 2020-08 | |||
| 84810-0K130 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(H,M);TGN156,166..(IDNSU,VNSUV)..(H,M,S)..(GEN,IDN,LA,VN) Production:2016-01 – 2020-08 | |||
| — | Part does not apply to this vehicle configuration. | 86247A | — |
| — | Part does not apply to this vehicle configuration. | G9221A | — |
| — | Part does not apply to this vehicle configuration. | 86210A | — |
| 85530-0K070 | SOCKET ASSY, POWER OUTLET, NO.3 | 1 | |
Note:TGN156..IDNSU..6FC;TGN156..IDNSU..5F..GCC;GGN155,165,GUN15#,165,KUN156,TGN166..IDNSU,VNSUV Production:2016-01 – 2020-08 | |||
| 89747-30040 | BUZZER, POWER BACK DOOR WARNING | 1 | |
Note:GGN155..SA;GUN155..H..GCC;GUN156..THSUV..H;GUN156..RHD..THSUV..M;GUN155..(IDNSU,THSUV)..M;GUN156..(AGTSU,IDNSU,PKNSU,VNSUV)..(H,M);GGN155,165,GUN16#,KUN156,TGN156,166..(AGTSU,IDNSU,THSUV)..(H,M) Production:2015-07 – 2021-04 | |||
| 85535-0K110-C0 | COVER, POWER OUTLET SOCKET, REAR | 1 | |
Note:TGN156..IDNSU..6FC;TGN156..IDNSU..5F..GCC;GGN155,165,GUN15#,165,KUN156,TGN166..IDNSU,VNSUV Production:2016-01 – 2020-08 Spec:BLACK,TRIM4# | |||
| 84930-0K050 | SWITCH, BACK DOOR CONTROL | 1 | |
Note:GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU..(H,M) Production:2016-01 – 2020-07 | |||
| 84872-0K070 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:GUN15#,165,KUN156,TGN156,166..RHD..IDNSU Production:2016-01 – 2020-07 | |||
| 89222-71050 | COMPUTER, MULTIPLEX NETWORK DOOR | 1 | |
Note:GGN155..SA;GUN156..LHD..IDNSU..GEN;GUN15#..RHD..(IDNSU,THSUV)..M;GUN15#..(H,M)..(BZAGT,GCC,LA,PH,VN);GGN155,165,GUN16#,KUN156,TGN156,166..(AGTSU,IDNSU,THSUV)..(H,M) Production:2015-11 – 2017-12 Replacements:89222-71051 (fitment: unknown) | |||
| 84231-0K080 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV Production:2016-01 – 2020-08 | |||
| — | Part does not apply to this vehicle configuration. | 88630Y | — |
| 90119-06915 | standard | — | |
| 90178-T0018 | standard | — | |
| 90119-T0130 | standard | — | |
Replacements:90119-06915 (fitment: unknown) | |||
| 90159-60602 | standard | — | |
| 90159-T0036 | standard | — | |
Replacements:90159-60602 (fitment: unknown) | |||
| 90189-06227 | standard | — | |
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) | |||
| 90166-70001 | standard | — | |
| 90166-60005 | standard | — | |

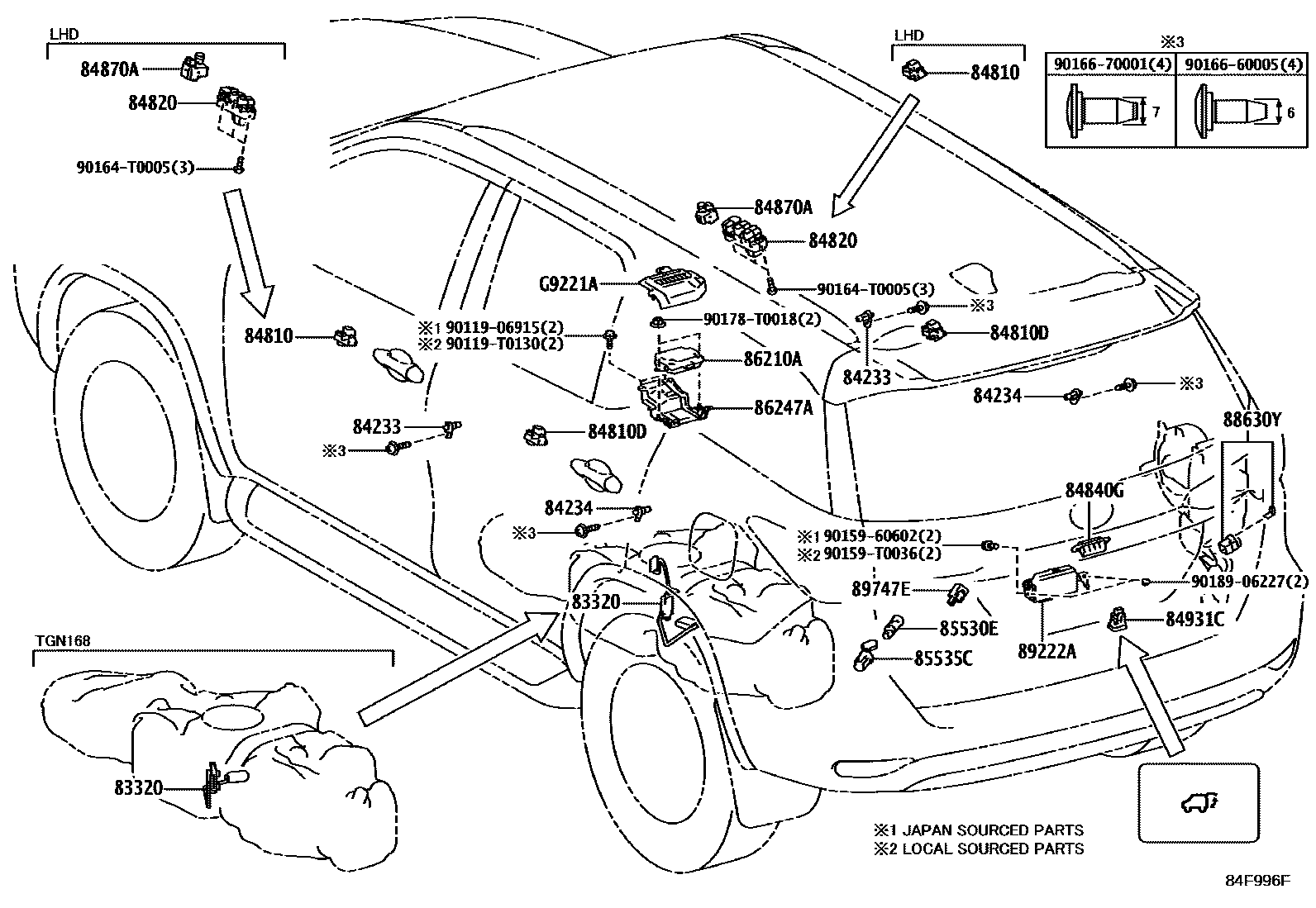

Diagram
22 parts
