General 2016 FORTUNER GUN155R-SDTMHD
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: INDONESIA PRODUCED SUV WAGON Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: INDONESIA Color Code: 1D6 Trim Code: LB41 Production: 201601-202007 Model Short: GUN155R-SDTMHD Region: OTHER Native Region: GR

Toyota Fortuner 2016 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84340-09260 SWITCH ASSY, STOP LAMP 1
Note:GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU Production:2016-01 – 2020-07
84345-0K010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Replacements:84345-51010 (fitment: unknown)
89121-30020 SENSOR, AUTOMATIC LIGHT CONTROL 1
Note:GUN156..M..LA;GUN165..M..PH;TGN166..AGTSU..M;TGN156..IDNSU..S..GCC;GUN155..GEN,IDN,MA,TH;GUN155..(H,S)..(GCC,SA);TGN156..BZAGT,GEN,KZS,MA,PKN,SA,VN;TGN156..(AGTSU,THSUV)..(M,S)..(GCC,LA);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,PKN,TH,VN);GUN156,LAN155..ARL,BZAGT,GCC,GEN,PH,PKN,SA,TH,VN;GGN155,165,GUN16#,KUN156,TGN168..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,MA,SA,TH) Production:2015-07 – 2021-04
89533-71101 COMPUTER, 4 WHEEL DRIVE CONTROL 1
Note:TGN156..MA,PKN;GGN155,GUN15#,KUN156..RHD..(ARL,IDN,SA) Production:2015-10 – 2017-05 Replacements:89533-71102 (fitment: unknown)
84550-0K010 SWITCH ASSY, PARKING BRAKE 1
Note:GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV Production:2016-01 – 2020-08
69065-0K010 CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH 1
Note:GUN165..PH,VN;GUN165..RHD..(M,S);TGN156,166..L..GEN;GGN155,GUN166,TGN168..BZAGT,GEN,LA,TH;GUN15#,KUN156,TGN156,166..BZAGT,IDN,LA,MA,PH,PKN,TH,VN Production:2015-07 – 2021-04
— Part does not apply to this vehicle configuration. 84520 —
— Part does not apply to this vehicle configuration. 88280A —
82673-0K030 BRACKET, JUNCTION BLOCK, NO.1 1
Note:GUN155,165,KUN156,TGN156,166..RHD..IDNSU..(H,M) Production:2015-07 – 2016-09
82730-0K730 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 1
Note:GUN155,165..M..IDN Production:2016-01 – 2020-07
82672-0K040 COVER, JUNCTION BLOCK 1
Note:GUN155,165..IDN Production:2016-01 – 2020-07
89221-0K670 COMPUTER, BODY 1
Note:GUN15#,165,KUN156,TGN156,166..RHD..IDNSU..(H,M) Production:2016-01 – 2018-01 Replacements:89221-0K671 (fitment: unknown)
82673-0K020 BRACKET, JUNCTION BLOCK, NO.2 1
Note:KUN156..RHD..GEN;KUN156..IDNSU..L;GUN155,165..IDNSU..(L,M);GUN155,165..LHD..IDNSU..S;GGN155,165,GUN156..IDNSU..(GCC,LA,PH);TGN156,166..IDNSU..(H,L,M)..(GCC,GEN,IDN,LA) Production:2015-07 – 2016-09
90982-09019 INSTRUMENT PANEL FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:5A,MINI FUSE,TAN
90982-09020 INSTRUMENT PANEL FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 INSTRUMENT PANEL FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:10A,MINI FUSE,RED
90982-09022 INSTRUMENT PANEL FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:15A,MINI FUSE,BLUE
90982-09023 INSTRUMENT PANEL FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 INSTRUMENT PANEL FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:25A,MINI FUSE
90982-09025 INSTRUMENT PANEL FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:30A,MINI FUSE,GRN
90982-08294 INSTRUMENT PANEL FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:40A,FEMALE,GRN,58V
90982-08295 INSTRUMENT PANEL FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:30A,FEMALE,PNK,58V
— Part does not apply to this vehicle configuration. 89530C —
8598A-0K010 BATTERY, DOOR CONTROL 1
Note:TGN156..H,M;GUN165..PH,VN;TGN156..S..BZAGT;GUN156..THSUV..H..GEN;GUN156..(L,M)..(BZAGT,TH);GUN155,165..RHD..(IDNSU,MASUV,THSUV);GGN155,GUN166,TGN168..BZAGT,GEN,LA,TH;KUN156,TGN166..(H,M,S)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN);GUN156..(AGTSU,IDNSU,PKNSU,VNSUV)..(H,M,S)..(BZAGT,GEN,LA,PH,PKN,VN) Production:2015-07 – 2021-04
89960-71060 COMPUTER ASSY, HEADLAMP LEVELING 1
Note:GUN156..RHD..SA;KUN156..LHD..(H,M);TGN156..(H,M)..(BZAGT,GEN);TGN156..(M,S)..(LA,MA,PKN,VN);TGN166..(H,M,S)..(GEN,IDN,IND,LA,SA);GGN155,GUN166,KUN156..RHD..(GEN,IND,SA);GGN155,165,GUN15#,165..(H,M)..(ARL,BZAGT,GCC,GEN,IDN,IND,LA,MA,PKN,VN) Production:2015-07 – 2021-04
— Part does not apply to this vehicle configuration. 89111 —
90159-T0003 standard —
90178-T0018 standard —
82715-KK310 standard —
90119-T0313 standard —
Replacements:91673-80620 (fitment: unknown)
90178-T0007 standard —
Replacements:90179-06216 (fitment: unknown)
90170-T0005 standard —
Replacements:94120-41000 (fitment: unknown)
90119-06915 standard —
90119-T0130 standard —
Replacements:90119-06915 (fitment: unknown)
90178-W0019 standard —
Replacements:94151-80600 (fitment: unknown)
94151-80600 standard —

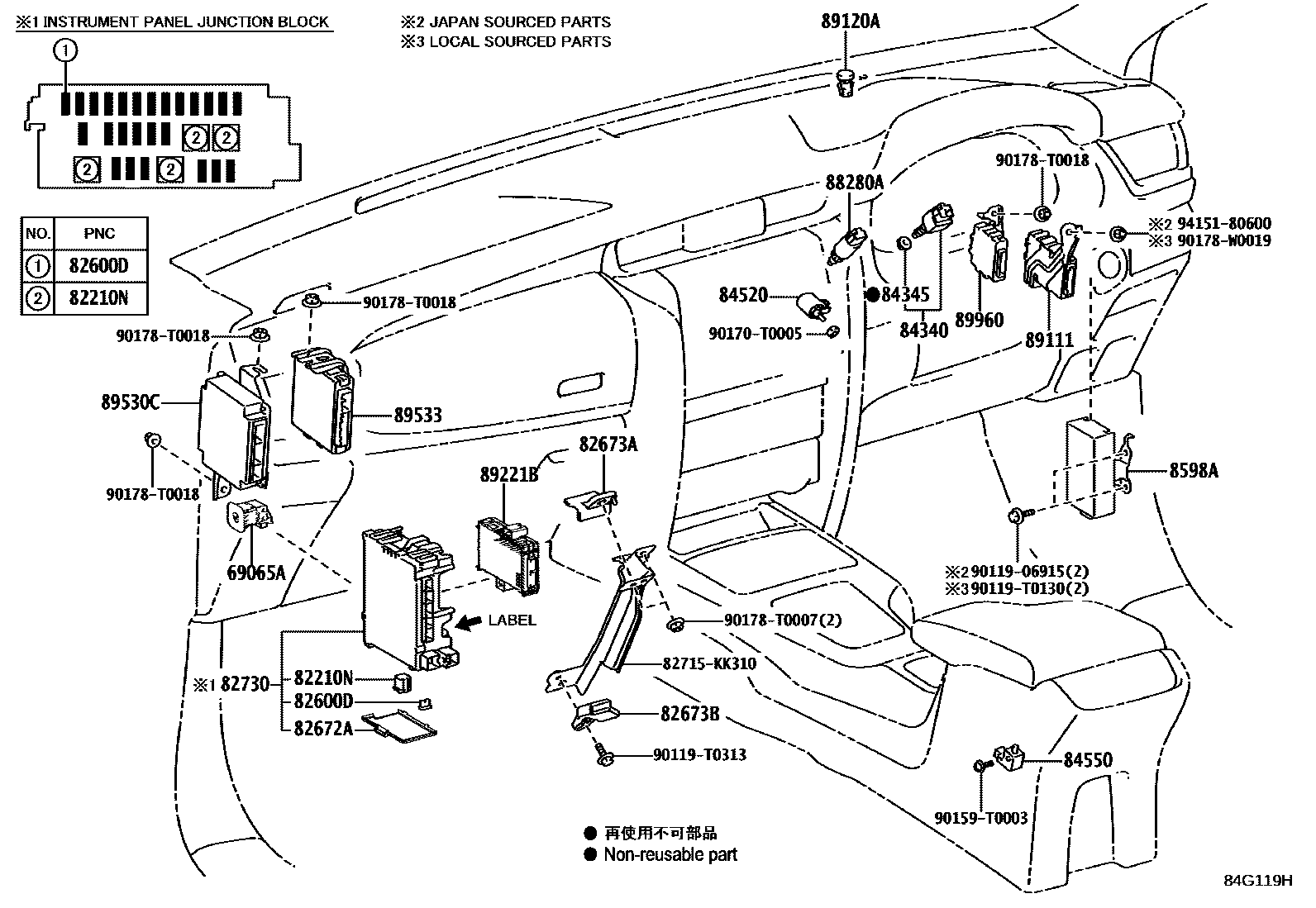

Diagram

32 parts
Toyota Fortuner 2016 — Switch & Relay & Computer
