Toyota RAV4-SFTM 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89111-F4061 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:MXAA5# Production:2021-04 – 2023-03 | |||
| 82673-0R120 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 90987-T2005 | RELAY, SEAT HEATER | 1 | |
Note:AXAH52,MXAA5#..M,X Production:2019-11 – 2023-03 Replacements:90987-02027 (fitment: unknown) | |||
| 90987-02027 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, ACC | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ACC | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 Spec:30A,FEMALE,PNK,32V | |||
| 82672-0R060 | COVER, JUNCTION BLOCK | 1 | |
Note:MXAA5# Production:2019-11 – 2023-03 | |||
| 82730-0R230 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:MXAA5# Production:2019-11 – 2023-03 | |||
| 85940-0R010 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 89121-0E040 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 84345-0R010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 84340-09340 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 82877-07010 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 89220-0R860 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2021-04 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 8598A | — |
| 90178-C0011 | standard | — | |
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90183-06032 | standard | — | |
| 90119-C0074 | standard | — | |

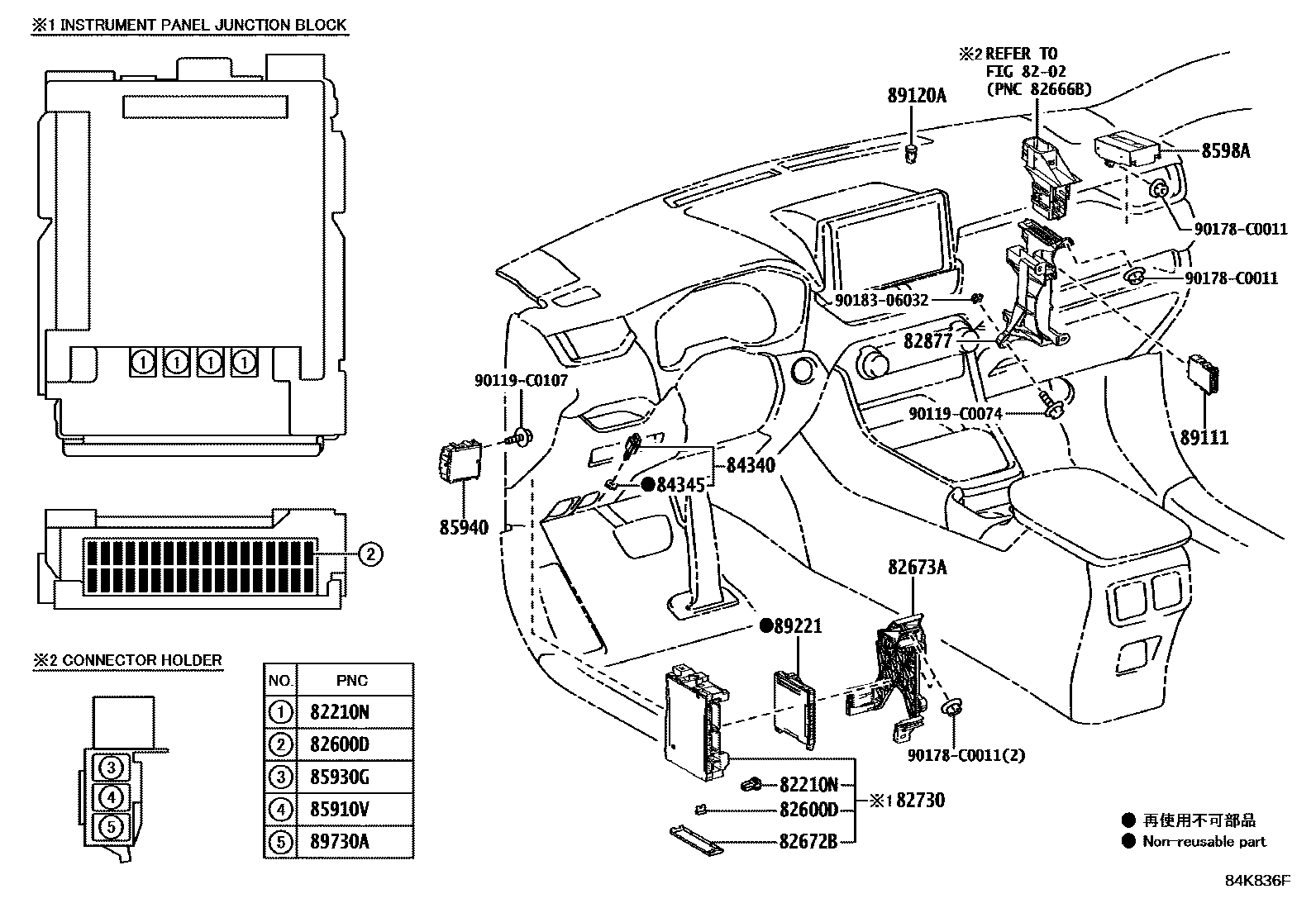

Diagram
25 parts
