Toyota RAV4-SFTM 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84540-12240 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:MXAA5# Production:2019-11 – 2023-03 | |||
| 89535-0R010 | COMPUTER, TRANSMISSION CONTROL | 1 | |
Note:MXAA52 Production:2020-11 – 2023-03 | |||
| 89467-F4010 | SENSOR, AIR FUEL RATIO | 1 | |
Note:MXAA5# Production:2019-11 – 2023-03 | |||
| 89491-06010 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:MXAA5# Production:2019-11 – 2022-05 Replacements:89491-06011 (fitment: unknown) | |||
| 89615-0E010 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXAH5#,MXAA5# Production:2021-09 – 2023-03 | |||
| 89419-0E010 | SENSOR, SHIFT STROKE | 1 | |
Note:MXAA52 Production:2021-04 – 2022-08 Spec:TMCAP:REFER ILLUST. | |||
| 89419-K2010 | SENSOR, SHIFT STROKE | 1 | |
Note:MXAA5# Production:2021-06 – 2023-03 Spec:MARK=HK-82 | |||
| 89539-0R010 | BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | 1 | |
Note:MXAA5# Production:2020-11 – 2023-03 | |||
| 89539-0R020 | BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | 1 | |
Note:MXAA5# Production:2020-11 – 2023-03 | |||
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 84546 | — |
| 89467-0R120 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 91651-40620 | standard | — | |
| 90119-C0234 | standard | — | |
| 90119-06A23 | standard | — | |
| 91551-80835 | standard | — | |
| 90119-C0098 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90119-06A12 | standard | — | |
| 91611-60618 | standard | — | |
| 90468-14044 | standard | — | |
| 90468-15007 | standard | — | |
| 90153-50015 | standard | — | |
| 90153-C0003 | standard | — | |
| 82715-F4640 | standard | — | |
| 82715-F4310 | standard | — | |
| 82715-12X50 | standard | — | |
| 82715-0R820 | standard | — | |
| 82715-0R810 | standard | — | |

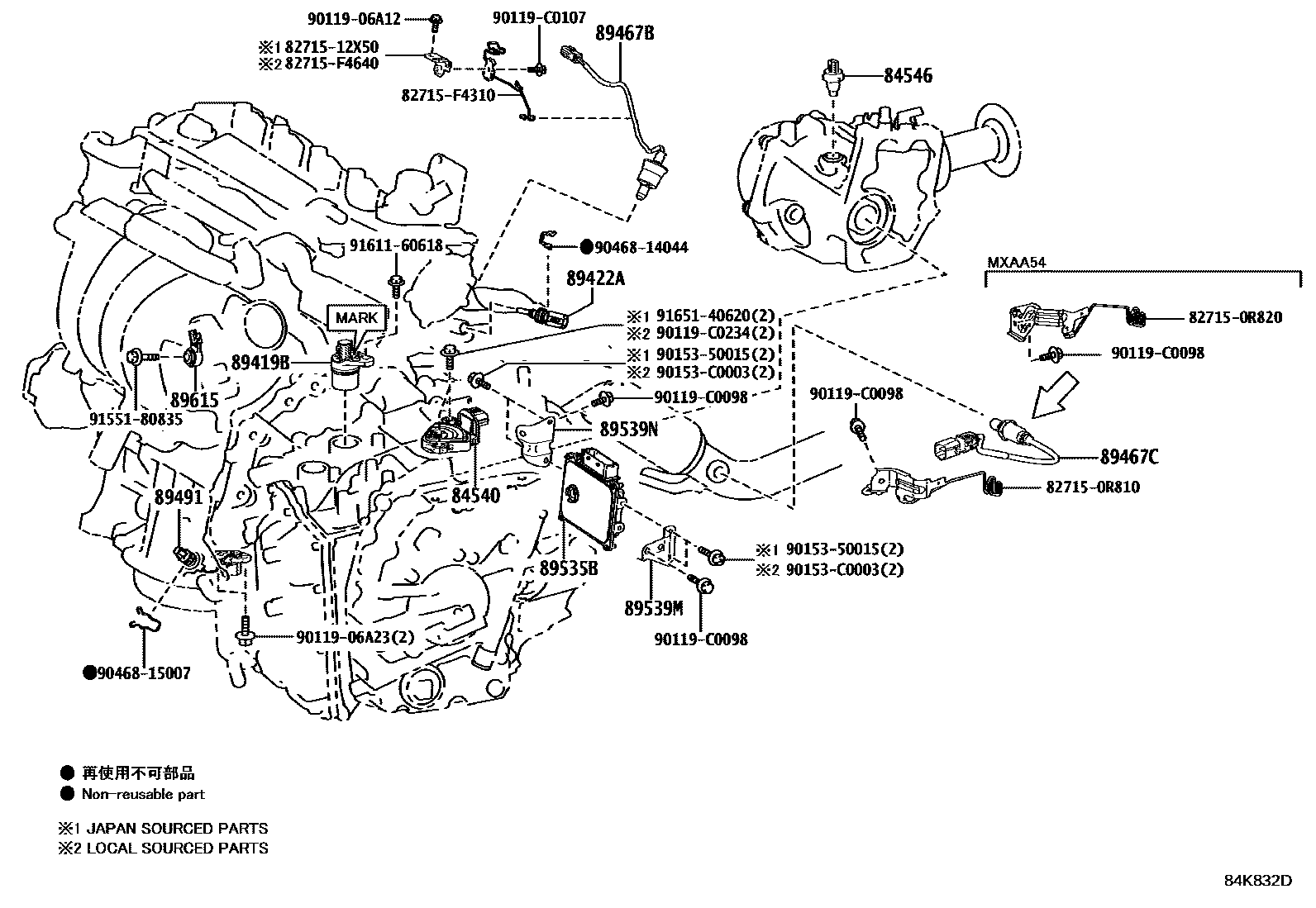

Diagram
28 parts
