Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84040-08060 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXLH4#..W,X Production:2023-03 – 2025-09 | |||
| 84927-08030 | SWITCH, SEAT MEMORY | 1 | |
Note:AXLH4#..P,V,W,X Production:2022-11 – … | |||
| 84872-0R201 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXLH4#..W,X Production:2023-09 – 2025-09 | |||
| 84810-03030 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXLH4#..W,X Production:2022-11 – 2025-09 | |||
| 84810-03030 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXLH4#..W,X Production:2022-11 – 2025-09 | |||
| — | Part does not apply to this vehicle configuration. | 84963 | — |
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … | |||
| 89430-08090 | COMPUTER ASSY, OUTER MIRROR CONTROL, LH | 1 | |
Note:AXLH4#..P,V,W,X Production:2022-11 – … | |||
| 89430-08100 | COMPUTER ASSY, OUTER MIRROR CONTROL, RH | 1 | |
Note:AXLH4#..P,V,W,X Production:2022-11 – … | |||
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … | |||
| 85532-0R120 | SOCKET, USB CHARGER, NO.4 | 1 | |
Note:AXLH4#..E,P,V,W,X Production:2023-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 75865K | — |
| — | Part does not apply to this vehicle configuration. | 75863K | — |
| — | Part does not apply to this vehicle configuration. | 891B0 | — |
| — | Part does not apply to this vehicle configuration. | 75864E | — |
| — | Part does not apply to this vehicle configuration. | 75866J | — |
| 90167-50063 | standard | — | |
| 90167-C0019 | standard | — | |
| 90189-05183 | standard | — | |
| 90901-48003 | standard | — | |
| 90159-C0006 | standard | — | |
| 90164-C0009 | standard | — | |
| 90166-C0004 | standard | — | |
| 90166-C0005 | standard | — | |
| 90189-06245 | standard | — | |
| 90189-C0033 | standard | — | |
| 90467-07215 | standard | — | |
| 90467-C0101 | standard | — | |
| 90467-C0043 | standard | — | |

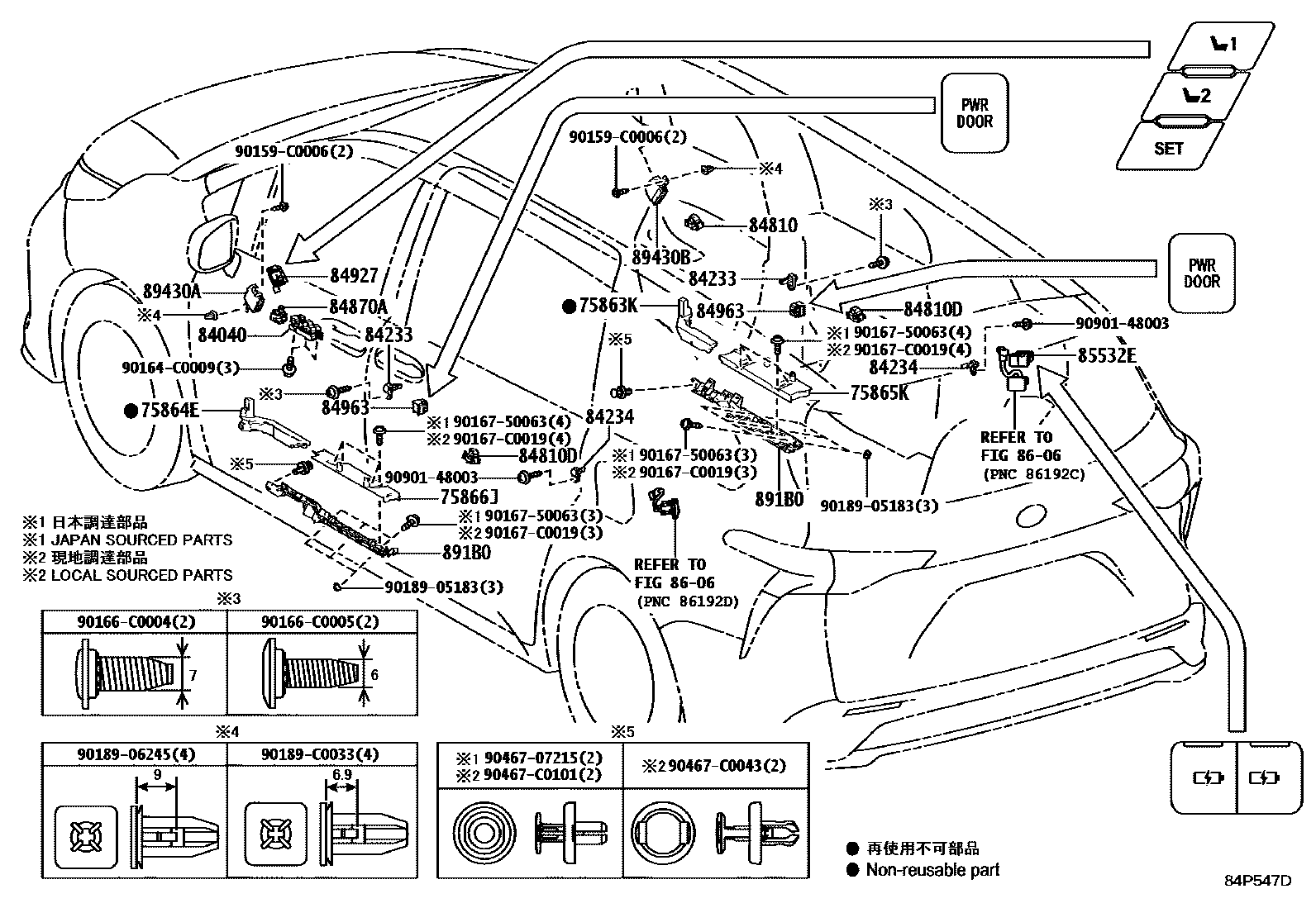

Diagram
23 parts
