Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84921-07030-B0 | KNOB, POWER SEAT SWITCH, RH | 1 | |
Note:AXLH40..X Production:2022-11 – 2025-09 Spec:NEUTRAL WARM GRAY,TRIM10 | |||
| — | Part does not apply to this vehicle configuration. | 84923G | — |
| — | Part does not apply to this vehicle configuration. | C9277 | — |
| — | Part does not apply to this vehicle configuration. | C8412 | — |
| 84922-07050-C1 | SWITCH, FRONT POWER SEAT, RH | 1 | |
Note:AXLH40..X Production:2022-11 – 2026-05 Spec:BLACK,TRIM1# | |||
| 84921-0R020-B1 | KNOB, POWER SEAT SWITCH, LH | 1 | |
Note:AXLH40..X Production:2022-11 – 2025-09 Spec:NEUTRAL WARM GRAY,TRIM10 | |||
| 84921-0R010-B1 | KNOB, POWER SEAT SWITCH, LH | 1 | |
Note:AXLH40..X Production:2022-11 – 2025-09 Spec:NEUTRAL WARM GRAY,TRIM10 | |||
| 84922-08050-C0 | SWITCH, FRONT POWER SEAT, LH | 1 | |
Note:AXLH40..X Production:2022-11 – 2026-05 Spec:BLACK,TRIM1# | |||
| 89710-08020 | COMPUTER ASSY, POSITION CONTROL | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2024-04 | |||
| 84921-07040-B0 | KNOB, POWER SEAT SWITCH, RH | 1 | |
Note:AXLH40..X Production:2022-11 – 2025-09 Spec:NEUTRAL WARM GRAY,TRIM10 | |||
| 85532-0R120 | SOCKET, USB CHARGER, NO.3 | 1 | |
Note:AXLH4#..V,W,X Production:2023-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 84923H | — |
| — | Part does not apply to this vehicle configuration. | 89714B | — |
| — | Part does not apply to this vehicle configuration. | 89714C | — |
| — | Part does not apply to this vehicle configuration. | 84923K | — |
| — | Part does not apply to this vehicle configuration. | 84923J | — |
| — | Part does not apply to this vehicle configuration. | 85532G | — |
| — | Part does not apply to this vehicle configuration. | 84920M | — |
| 93560-54012 | standard | — | |
| 90167-C0016 | standard | — | |
Replacements:93560-54012 (fitment: unknown) | |||

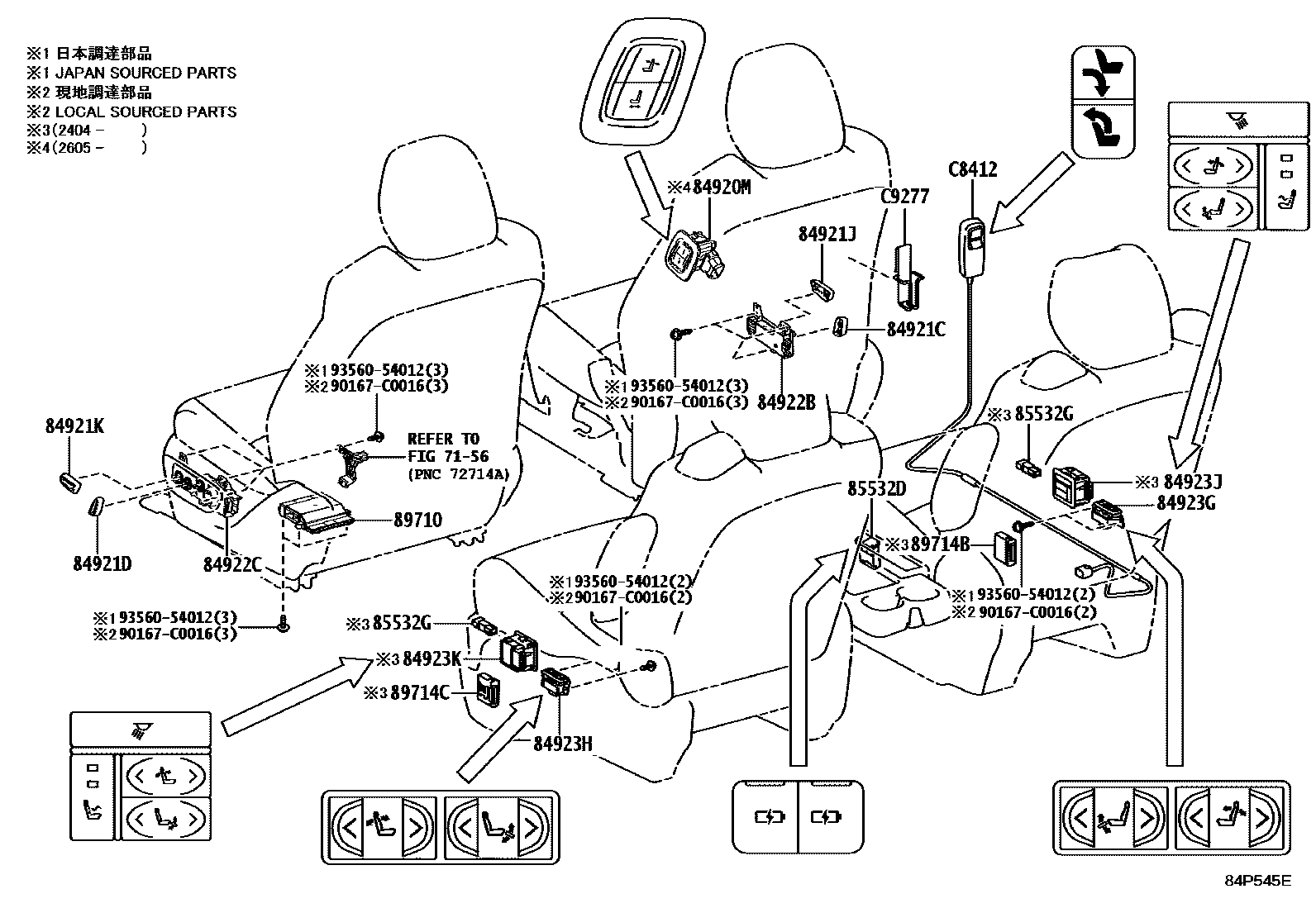

Diagram
10 parts
