Toyota Corolla 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89121-0E040 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 90987-02027 | RELAY, FOG LAMP | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, FOG LAMP | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| — | Part does not apply to this vehicle configuration. | 84841C | — |
| — | Part does not apply to this vehicle configuration. | 28371 | — |
| — | Part does not apply to this vehicle configuration. | 89730A | — |
| 82730-0Z140 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 82673-F4060 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 82877-F4030 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 89111-0E240 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:NRE210..ENTRY,MID Production:2022-11 – … | |||
| 85940-02080 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 82673-02360 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:30A,FEMALE,PNK,32V | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA11,NRE210,ZWE211 Production:2019-08 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA11,NRE210,ZWE211 Production:2019-08 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA11,NRE210,ZWE211 Production:2019-08 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA11,NRE210,ZWE211 Production:2019-08 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA11,NRE210,ZWE211 Production:2019-08 – … Spec:20A,MINI FUSE,YELLOW | |||
| 89220-02B52 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:NRE210..ENTRY Production:2023-05 – … Spec:P/N LABEL=8922102A42 | |||
| — | Part does not apply to this vehicle configuration. | 84550 | — |
| 89650-02D90 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:NRE210..ENTRY,MID Production:2025-02 – … Spec:JTEKT/DENSO | |||
| 82660-12460 | BLOCK ASSY, RELAY | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 82663-12150 | COVER, RELAY BLOCK, LOWER, NO.3 | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 84345-0R010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 84340-09470 | SWITCH ASSY, STOP LAMP | 1 | |
Note:NRE210..ENTRY,MID Production:2023-05 – … | |||
| 82715-12X60 | BRACKET, WIRING HARNESS CLAMP, NO.3 | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(J) Spec Note:(Japan made) | |||
| 82715-02Y60 | BRACKET, WIRING HARNESS CLAMP, NO.3 | 1 | |
Note:NRE210..ENTRY,MID Production:2021-10 – … Spec:(L) Spec Note:(Local made) | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| — | Part does not apply to this vehicle configuration. | 89280 | — |
| 90119-06A21 | standard | — | |
| 90183-06032 | standard | — | |
| 90119-C0074 | standard | — | |
| 90179-06274 | standard | — | |
| 90178-C0011 | standard | — | |
| 94151-80600 | standard | — | |
| 90178-C0032 | standard | — | |
| 93315-54010 | standard | — | |
| 94120-41000 | standard | — | |
| 90178-C0058 | standard | — | |

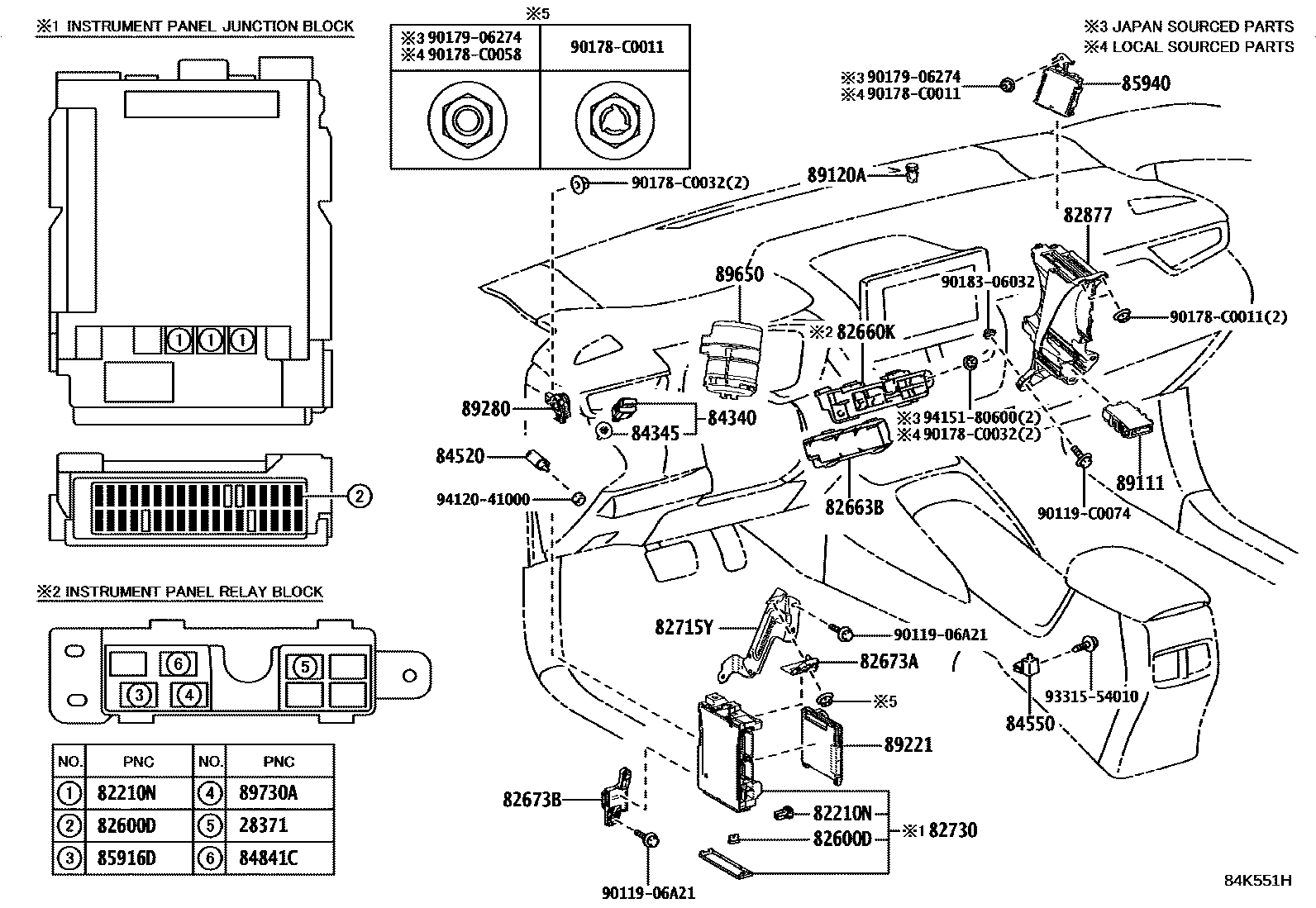

Diagram
33 parts
