Toyota Corolla 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89467-F4020 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 89467-02120 | SENSOR, AIR FUEL RATIO | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 84540-52070 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:NRE210..ENTRY,MID Production:2025-02 – … | |||
| 89422-47010 | SENSOR, WATER TEMPERATURE | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 83520-02010 | GAGE ASSY,OIL PRESSURE SENDER | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(L) Spec Note:(Local made) | |||
| 83520-60060 | GAGE ASSY,OIL PRESSURE SENDER | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(J) Spec Note:(Japan made) | |||
| 89491-50082 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:NRE210..ENTRY,MID Production:2022-02 – … Spec:*662 Spec Note:*662(ENGINE NO.=J000001-M999999 OR 2H*****-2M*****) | |||
| 15367-0Y020 | BRACKET, SENSOR | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(L) Spec Note:(Local made) | |||
| 89429-02010 | SENSOR, TEMPERATURE | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(L) Spec Note:(Local made) | |||
| 89429-12010 | SENSOR, TEMPERATURE | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(J) Spec Note:(Japan made) | |||
| 89615-02040 | SENSOR, KNOCK CONTROL | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(L) Spec Note:(Local made) | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … Spec:(J) Spec Note:(Japan made) | |||
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90105-C0079 | standard | — | |
| 90119-C0234 | standard | — | |
| 91651-40620 | standard | — | |
| 90468-15007 | standard | — | |
| 90468-14043 | standard | — | |
| 90119-C0098 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 91671-80616 | standard | — | |
| 90430-12221 | standard | — | |
| 91551-80835 | standard | — | |
| 90105-C0048 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 82715-0Z720 | standard | — | |
| 82729-20040 | standard | — | |
| 82715-F4330 | standard | — | |
| 82715-0Z730 | standard | — | |

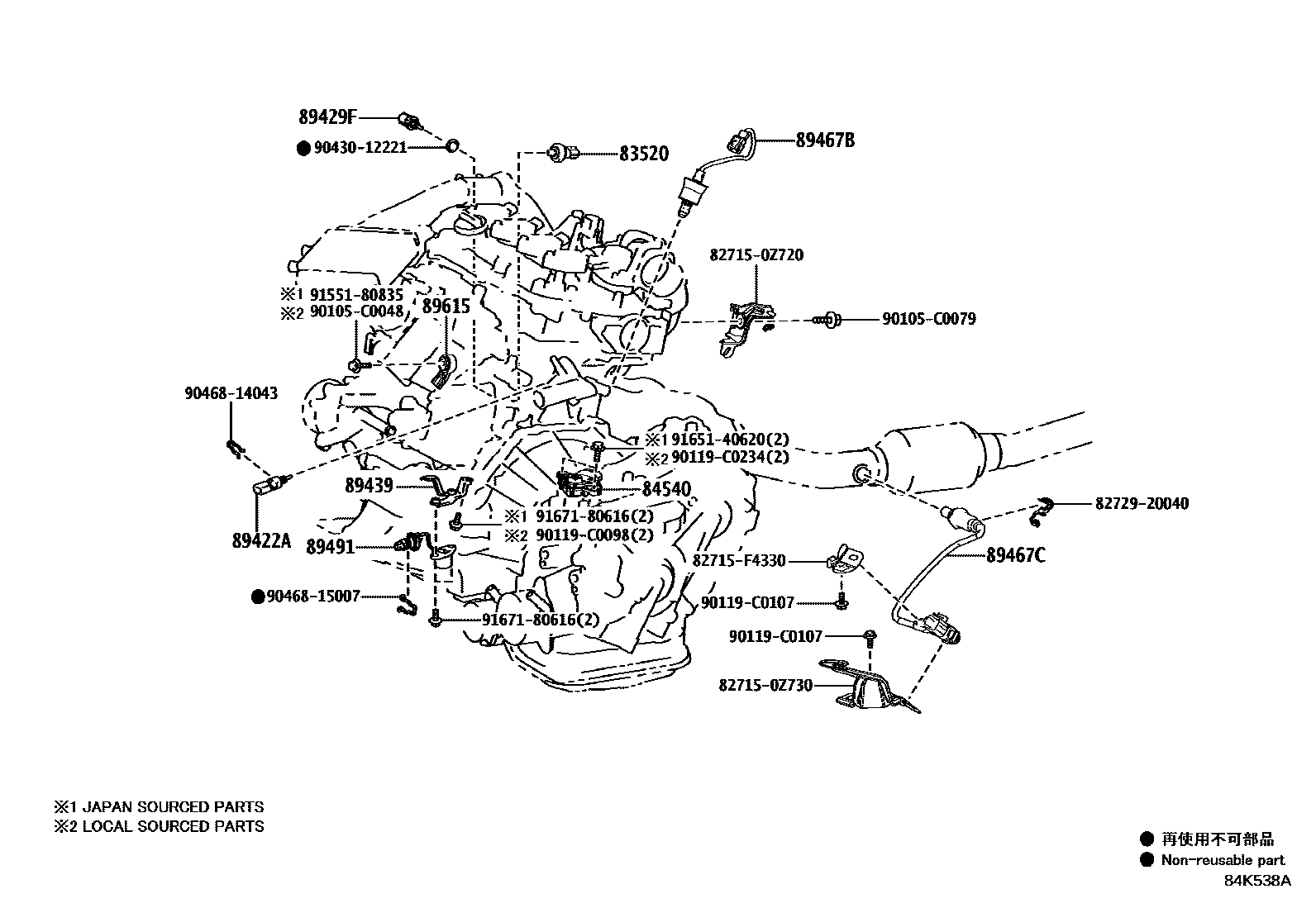

Diagram
27 parts
