Toyota RAV4 2015 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 85940 | — |
| — | Part does not apply to this vehicle configuration. | 82877 | — |
| 82660-42070 | BLOCK ASSY, RELAY | 1 | |
Note:ZSA4#..A..GEN;ASA4#..LHD..G;ASA44,ZSA42..ARL;ASA4#..6FC..X..GEN Production:2012-12 – 2015-10 | |||
| 89220-42830 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:ASA4#,ZSA4#..GEN Production:2014-10 – 2015-10 Spec:POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) | |||
| 84340-19025 | SWITCH ASSY, STOP LAMP | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Replacements:84340-19026 (fitment: unknown) | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 82730-42750 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:ASA4#,ZSA4#..LHD Production:2012-12 – 2015-10 | |||
| 84550-33010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:ASA4#,ZSA4#..LHD Production:2012-12 – 2015-10 | |||
| 82672-42150 | COVER, JUNCTION BLOCK | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Spec:25A,MINI FUSE | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 Spec:30A,FEMALE,PNK,32V | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| — | Part does not apply to this vehicle configuration. | 89960 | — |
| 90987-02027 | RELAY, LAMP CUT | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| — | Part does not apply to this vehicle configuration. | 86530A | — |
| — | Part does not apply to this vehicle configuration. | 85916L | — |
| — | Part does not apply to this vehicle configuration. | 88280A | — |
| — | Part does not apply to this vehicle configuration. | 89120A | — |
| — | Part does not apply to this vehicle configuration. | 69065A | — |
| 90159-60610 | standard | — | |
| 90159-70004 | standard | — | |
| 90159-60303 | standard | — | |
| 93315-14012 | standard | — | |
| 90170-10017 | standard | — | |
| 90179-06274 | standard | — | |
| 90179-06110 | standard | — | |
| 91673-80616 | standard | — | |

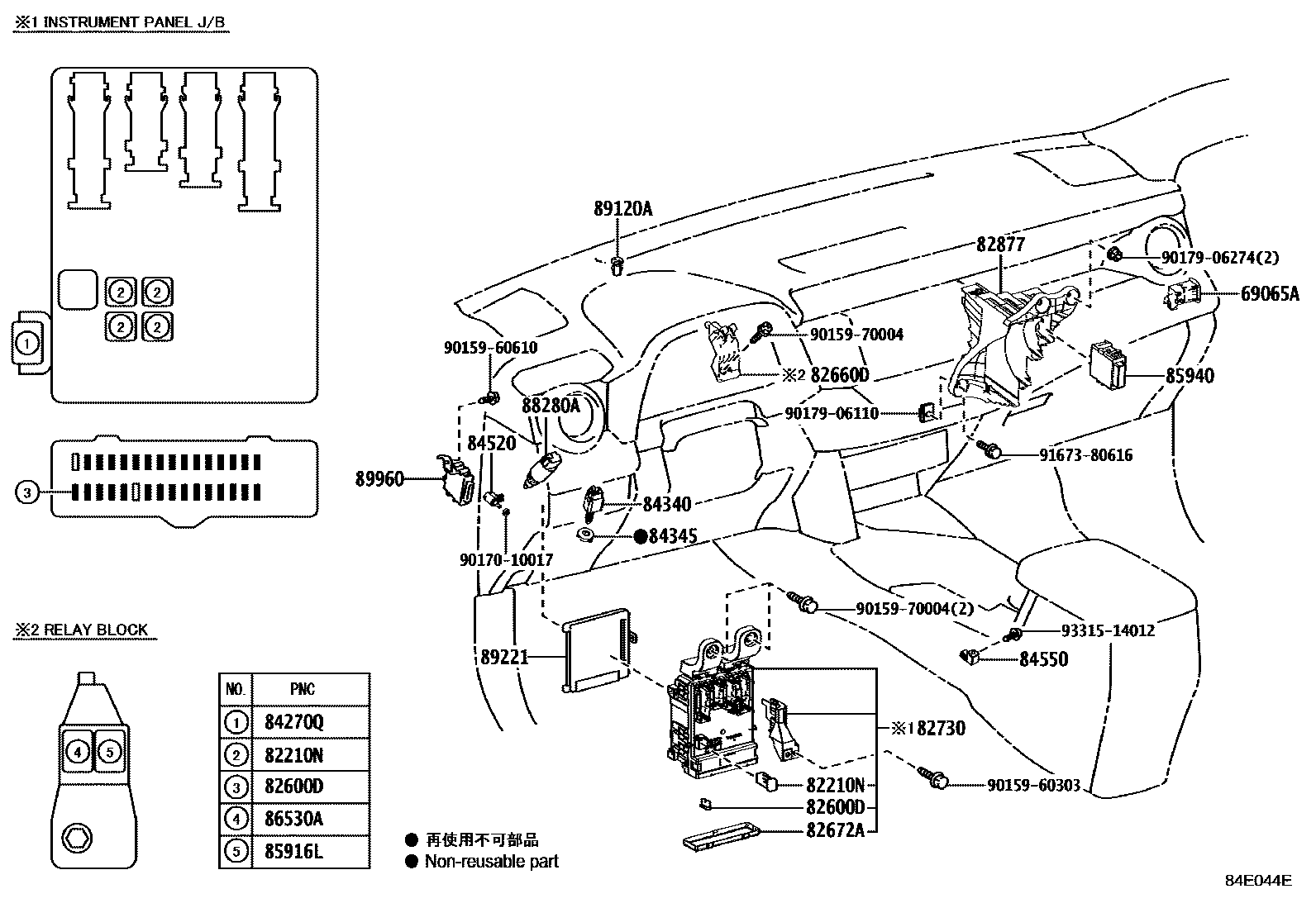

Diagram
23 parts
