Toyota Land-Cruiser 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84140-30311 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:UZJ200;VDJ200..RHD Production:2010-08 – 2012-01 Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040 | |||
| 89245-30070 | SENSOR, STEERING | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:ACTIVE HEIGHT CONTROL | |||
| 84306-48030 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Replacements:84306-48031 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84650D | — |
| 84652-48121 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:UZJ200,VDJ200..RHD Production:2010-08 – 2012-01 Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040 | |||
| 84244-60030 | SWITCH, STEERING PAD, RH | 1 | |
Note:UZJ200..08S;VDJ200..RHD Production:2007-09 – 2012-01 | |||
| 84250-60080 | SWITCH ASSY, STEERING PAD | 1 | |
Note:UZJ200,VDJ200..RHD Production:2009-05 – 2012-01 Spec:STEERING WHEEL-W(AUDIO & DISP & TEL & VOICE & VGRS)&ACTIVE HEIGHT CONTROL&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) | |||
| 89235-48010 | SWITCH, TILT & TELESCOPIC | 1 | |
Note:UZJ200;VDJ200..RHD Production:2010-08 – 2012-01 Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040 | |||
| 90159-50199 | standard | — | |

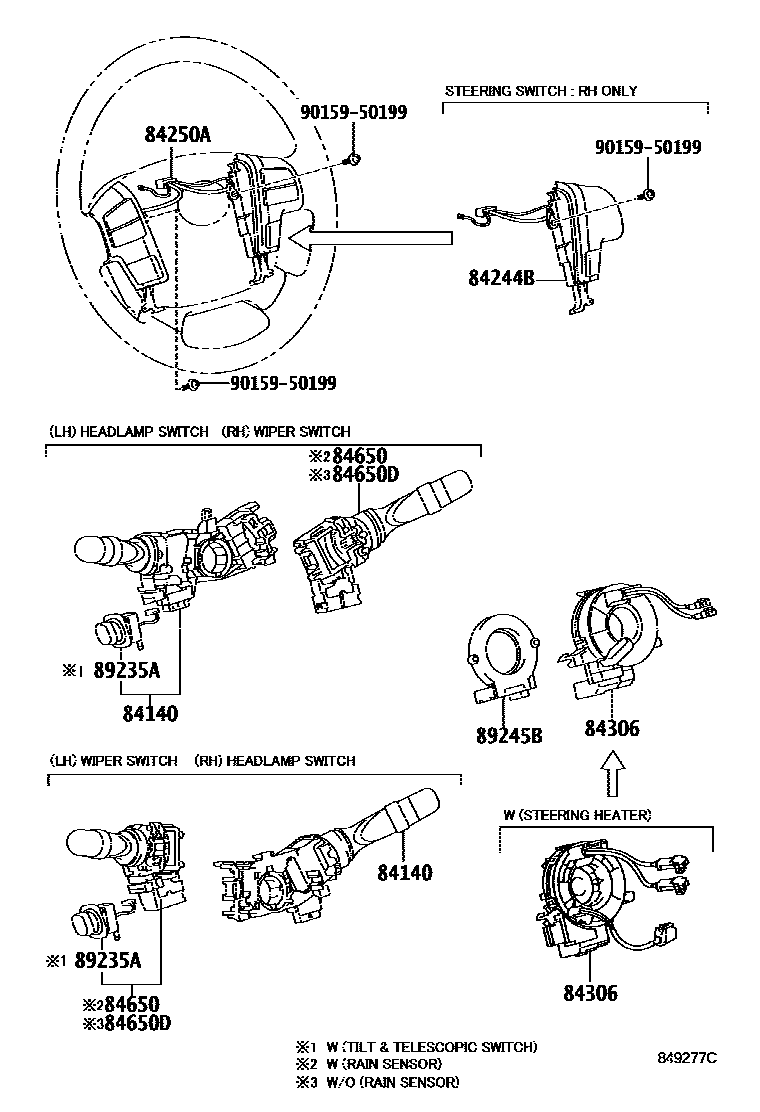

Diagram
8 parts
