Toyota Land-Cruiser 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82661-60171 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:VDJ200 Production:2009-07 – 2012-01 | |||
| 82663-0C060 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 82741-0C060 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 82660-0C100 | BLOCK ASSY, RELAY | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 82660-0H070 | BLOCK ASSY, RELAY | 8 | |
Note:VDJ200..RHD Production:2007-09 – 2012-01 | |||
| 82660-26270 | BLOCK ASSY, RELAY | 1 | |
Note:UZJ200,VDJ200..RHD Production:2007-09 – 2012-01 | |||
| 82660-42030 | BLOCK ASSY, RELAY | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 82660-52010 | BLOCK ASSY, RELAY | 3 | |
Note:VDJ200..RHD Production:2007-09 – 2012-01 | |||
| 90987-04010 | RELAY, DEFOGGER | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 90987-02027 | RELAY, SEAT HEATER | 1 | |
Note:UZJ200..08S;VDJ200..RHD Production:2010-08 – 2012-01 Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040 | |||
| 90987-02027 | RELAY, FOG LAMP | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 90987-02025 | RELAY, PTC HEATER | 3 | |
Note:VDJ200..08S Production:2010-08 – 2012-01 Spec:COLD SPEC Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040 | |||
| 90987-02027 | RELAY, STARTER CUT | 1 | |
Note:2UZFE,1VDFTV..UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 90987-02025 | RELAY, HEADLAMP | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 90987-02028 | RELAY CONDENSER FAN | 1 | |
Note:UZJ200,VDJ200..08S Production:2010-08 – 2012-01 Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040 | |||
| 90987-02025 | RELAY ASSY, STARTER | 1 | |
Note:1VDFTV..VDJ200 Production:2007-09 – 2012-01 | |||
| 90987-04004 | RELAY, BRAKE LAMP | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 90987-02025 | RELAY, HEADLAMP DIMMER | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 90982-09019 | ENGINE ROOM FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:25A,MINI FUSE | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:30A,MINI FUSE,GRN | |||
| 90982-08294 | FUSIBLE LINK | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:40A,FEMALE,GRN,58V | |||
| 90982-08295 | FUSIBLE LINK | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:30A,FEMALE,PNK,58V | |||
| 90982-08296 | FUSIBLE LINK | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 Spec:50A,FEMALE,RED,58V | |||
| 90987-02028 | RELAY, MAGNET-CLUTCH | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||
| 90987-02027 | RELAY, FR WIPER DEICER | 1 | |
Note:UZJ200,VDJ200..RHD Production:2010-08 – 2012-01 Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040 | |||
| — | Part does not apply to this vehicle configuration. | 82824L | — |
| 90987-02028 | RELAY, VISCOUS HEATER | 1 | |
Note:VDJ200 Production:2007-09 – 2012-01 | |||
| 28610-27010 | RELAY ASSY, INTAKE HEATER OR GLOW PLUG | 2 | |
Note:1VDFTV..VDJ200 Production:2007-09 – 2012-01 | |||
| 82620-60050 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:VDJ200 Production:2007-09 – 2012-01 | |||
| 82641-47020 | RELAY, INTEGRATION NO.1 | 1 | |
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01 | |||

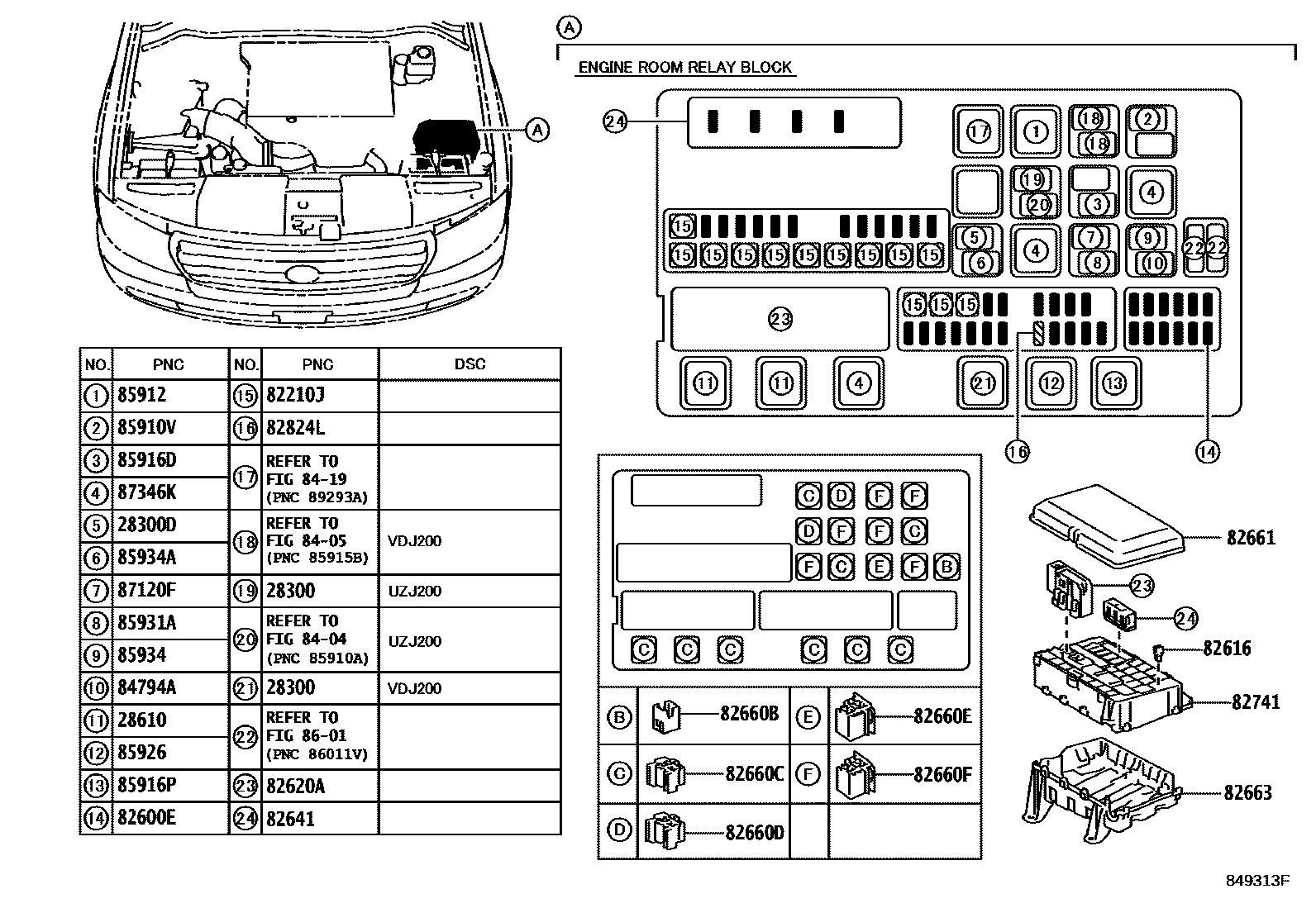

Diagram
35 parts
