Toyota Grnva-Hiace-Mjsty 2021 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84390B | — |
| 85530-42010 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH322..LHD..SG..P..GEN;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(D,P)..(ARL,GCC,NZ);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH300,322..4D..(PSOB,SG)..(D,N,Q)..(AGT,ARL,GCC,GEN,TH) Production:2019-02 – … | |||
| 85530-42010 | SOCKET ASSY, POWER OUTLET, NO.2 | 1 | |
Note:GDH320..RHD..SP;GDH320..LHD..SP..6F;GDH322..LHD..P..GEN;GDH320..SP..6FC..GCC;GDH322..P..(ARL,GCC,NZ);GDH30#,321,328,GRH30#,32#;GDH320,322..(GSOB,PSOB,SG)..(D,N,Q) Production:2019-02 – 2023-10 Rev.ref.no To:0022 Serial Ranges:Other: To 6022197 · GDH322 · · 00220060 | |||
| — | Part does not apply to this vehicle configuration. | 85532 | — |
| — | Part does not apply to this vehicle configuration. | 83150C | — |
| 85535-26070-C0 | COVER, POWER OUTLET SOCKET, NO.2 | 1 | |
Note:GDH320..RHD..SP;GDH320..LHD..SP..6F;GDH322..LHD..P..GEN;GDH320..SP..6FC..GCC;GDH322..P..(ARL,GCC,NZ);GDH30#,321,328,GRH30#,32#;GDH320,322..(GSOB,PSOB,SG)..(D,N,Q) Production:2019-02 – 2023-10 Spec:BLACK Rev.ref.no To:0022 Serial Ranges:Other: To 6022197 · GDH322 · · 00220060 | |||
| 85535-42060 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH322..LHD..SG..P..GEN;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(D,P)..(ARL,GCC,NZ);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH300,322..4D..(PSOB,SG)..(D,N,Q)..(AGT,ARL,GCC,GEN,TH) Production:2019-02 – … | |||
| 85539-60020 | LABEL, POWER OUTLET NOTICE | 1 | |
Note:GDH300..5D;GDH300..4D..6FC;GDH322..ARL,GCC;GRH301..RHD..6FC..N;GDH320..6FC..(ARL,GCC);GDH322..LHD..6F..P..GEN;GDH300..4D..6F..(GEN,TH);GDH320,GRH301..LHD..6F..D;GRH303,320..LHD..SG..(D,J);GRH321,322..(D,P,Q)..(GCC,GEN);GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC;GDH320,321,GRH300,301..RHD..D..(GEN,IDN);GDH306,320..LHD..5D..(PSOB,SG)..6FC..(D,G)..GEN;GDH301,303,304,321,322,328,GRH304..(D,G,H,J,N)..(ARL,GCC,GEN,NZ,PH,TH) Production:2019-02 – 2023-10 | |||
| 84332-26150 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:GDH322..LHD..6FC;GDH320..AGT,BZ,GCC;GDH320..LHD..6F..GEN;GRH322..LHD..(N,P,Q);GDH301..LHD..GSOB..6FC;GDH322..LHD..SG..6F..(GCC,GEN);GDH301,306,GRH301..LHD..SG..(D,J,N);GDH301,322,GRH322..LHD..GSOB..6F..(D,P);GDH320,GRH322..LHD..(PSOB,SG)..6FC..D..GEN;GDH300,303,304,328,GRH300,303,320,321..LHD..(PSOB,SG,SHP,SP)..(D,G,H,J,Q) Production:2019-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 84453 | — |
| 84988-33100 | SWITCH, VSC OFF | 1 | |
Note:GRH303,321;GDH306,321..RHD;GDH300..(HPSOB,SG)..6FC;GDH306,322..LHD..(J,P)..GEN;GDH301,322..LHD..GSOB..6FC..N;GDH301,322,GRH322..RHD..6F..N;GDH300..(GSOB,PSOB,SHP,SP)..(ARL,GCC,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH);GDH301,320,322,GRH300,320,322..(PSOB,SG,SHP,SP)..(AGT,ARL,BZ,GCC,NZ,TH) Production:2019-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| — | Part does not apply to this vehicle configuration. | 84794 | — |
| 90159-50327 | standard | — | |

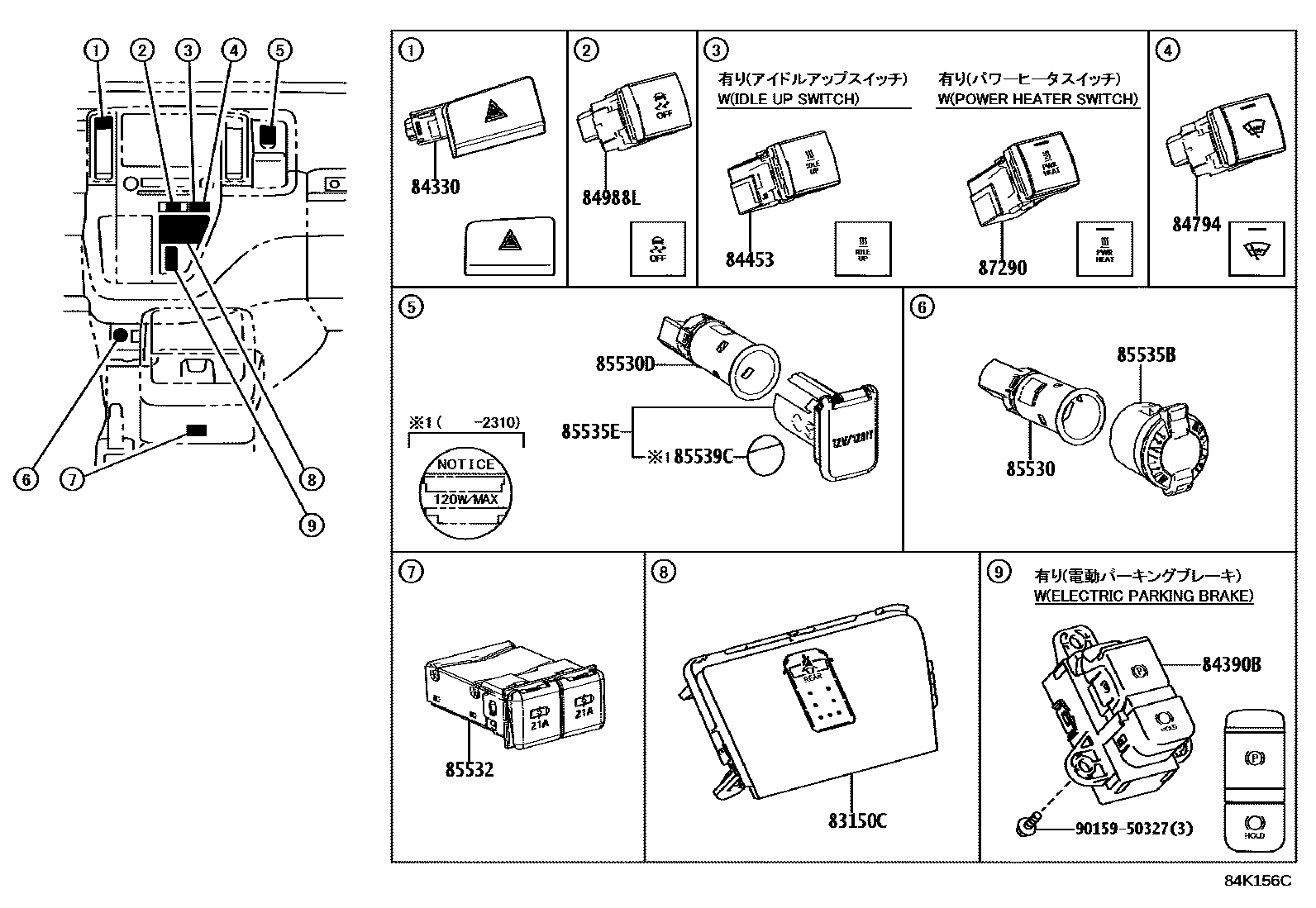

Diagram
8 parts
