USA / Canada 2021 GRNVA HIACE MJSTY GDH322L-EDFPYV
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: 4-DOOR Color Code: 058 Trim Code: FA11 Production: 201903-999999 Model Short: GDH322L-EDFPYV Region: NA Native Region: US

Toyota Grnva-Hiace-Mjsty 2021 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 82662B —
— Part does not apply to this vehicle configuration. 82660G —
82662-26460 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:GDH320..RHD;GDH320..LHD..6F;GDH320..6FC..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320..SG..6FC..GEN;GDH30#,321,322,328..D,G,H,J,N,Q Production:2020-06 – 2022-08
82616-58010 PULLER, FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – …
90982-09019 ENGINE ROOM FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:5A,MINI FUSE,TAN
90982-09020 ENGINE ROOM FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 ENGINE ROOM FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:10A,MINI FUSE,RED
90982-09022 ENGINE ROOM FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:15A,MINI FUSE,BLUE
90982-09023 ENGINE ROOM FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 ENGINE ROOM FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:25A,MINI FUSE
90982-09025 ENGINE ROOM FUSE 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:30A,MINI FUSE,GRN
82660-26480 BLOCK ASSY, RELAY 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
82660-26450 BLOCK ASSY, RELAY 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
82660-26460 BLOCK ASSY, RELAY 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
82660-26490 BLOCK ASSY, RELAY 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – …
82660-26470 BLOCK ASSY, RELAY 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
82663-26240 COVER, RELAY BLOCK, LOWER 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – …
82661-26200 COVER, RELAY BLOCK, NO.1 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – …
82661-26210 COVER, RELAY BLOCK, NO.2 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
82661-26170 COVER, RELAY BLOCK, NO.4 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – …
82661-26220 COVER, RELAY BLOCK, NO.3 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
— Part does not apply to this vehicle configuration. 82663A —
90982-08295 ENGINE ROOM FUSIBLE LINK 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:30A,FEMALE,PNK,58V
90982-08296 ENGINE ROOM FUSIBLE LINK 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:50A,FEMALE,RED,58V
82641-26070 RELAY, INTEGRATION NO.1 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
82620-26580 BLOCK ASSY, FUSIBLE LINK 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
82620-26570 BLOCK ASSY, FUSIBLE LINK 1
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – …
90987-02027 RELAY, WINDSHIELD WIPER 1
Note:GDH320..RHD..SP;GDH322..ARL,GCC,NZ;GDH320..LHD..SP..6F;GDH320..SP..6FC..GCC;GDH322..LHD..(P,Q)..GEN;GDH30#,321,328,GRH30#,32#;GDH320,322..(GSOB,PSOB,SG)..(D,N) Production:2019-02 – 2022-12
— Part does not apply to this vehicle configuration. 85930G —
90987-04010 RELAY, REAR COOLER 1
Note:GDH321..6FC;GDH322..GSOB..P;GDH322..6FC..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,328,GRH321,322..(D,P)..(ARL,BZ,GCC,NZ,TH) Production:2019-02 – …
— Part does not apply to this vehicle configuration. 85916T —
— Part does not apply to this vehicle configuration. 28300F —
90987-02027 RELAY, IGNITION, NO.4 1
Note:1GDFTV..GDH320..RHD..SP;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH320..LHD..SP..6F;1GDFTV..GDH320..SP..6FC..GCC;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH30#,321,328,GRH30#,32#;1GDFTV..GDH320,322..(GSOB,PSOB,SG)..(D,N) Production:2019-02 – 2022-11
90987-04010 RELAY, HEATER 1
Note:GDH321..RHD;GRH322..N,P,Q;GRH322..RHD..D;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH322..RHD..GSOB..N;GDH320..GSOB,PSOB,SG;GDH320..SP..6FC..GCC;GDH301..LHD..GSOB..6F;GDH300,328..SG..6FC..D;GDH322..6FC..(P,Q)..GEN;GDH300..4D..SP..(ARL,TH);GDH301,GRH301,320,321..PSOB,SG,SP;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN);GDH300,322,GRH300,322..LHD..(GSOB,SP)..(D,N)..GEN Production:2019-02 – …
90987-02025 RELAY, DEFOGGER 1
Note:GDH322..NZ,TH;GDH322..GSOB..P;GDH320..6FC..GCC;GDH300..4D..6F..ARL;GDH301..GSOB..6FC..N;GDH320..6F..(ARL,GCC);GDH322..LHD..6FC..(N,P,Q);GDH300,306..LHD..5D..(D,J);GDH322..LHD..SG..6F..(N,P,Q);GDH306,321,322..RHD..(G,J,N);GDH303,304,328,GRH304..GCC,GEN,TH,VN;GRH300,320..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH301,GRH301,303,321,322..SG..(G,J,N,P,Q) Production:2019-02 – …
28300-30050 RELAY ASSY, STARTER 1
Note:1GDFTV..GDH306,321..RHD;1GDFTV..GDH320..RHD..SP;7GRFKS..GRH322..RHD..6F;1GDFTV..GDH322..LHD..GSOB;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH320..LHD..SP..6F;1GDFTV..GDH320..GSOB,PSOB,SG;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH320..SP..6FC..GCC;1GDFTV..GDH300..4D..SP..(ARL,TH);7GRFKS..GRH322..LHD..6F..(N,P,Q);1GDFTV..GDH322..LHD..SG..(P,Q)..GEN;1GDFTV,7GRFKS..GDH300,GRH322..SG..6FC;1GDFTV,7GRFKS..GDH301,GRH322..LHD..GSOB..6F;1GDFTV..GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);1GDFTV..GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;1GDFTV,7GRFKS..GDH301,GRH301,303,320,321..PSOB,SG,SP;1GDFTV,7GRFKS..GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;1GDFTV..GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);1GDFTV,7GRFKS..GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);1GDFTV,7GRFKS..GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – …
— Part does not apply to this vehicle configuration. 85910Y —
— Part does not apply to this vehicle configuration. 89730A —
— Part does not apply to this vehicle configuration. 85916D —
90987-02024 RELAY ASSY, HORN 1
Note:GDH320..RHD..SP;GDH322..ARL,GCC,NZ;GDH320..LHD..SP..6F;GDH320..SP..6FC..GCC;GDH322..LHD..(P,Q)..GEN;GDH30#,321,328,GRH30#,32#;GDH320,322..(GSOB,PSOB,SG)..(D,N) Production:2019-02 – 2022-11
90987-02025 RELAY ASSY, INTAKE HEATER OR GLOW PLUG 1
Note:1GDFTV..GDH306,321..RHD;1GDFTV..GDH300..SG..6FC;1GDFTV..GDH320..RHD..SP;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..LHD..GSOB;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH320..LHD..SP..6F;1GDFTV..GDH320..GSOB,PSOB,SG;1GDFTV..GDH320..SP..6FC..GCC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH300..4D..SP..(ARL,TH);1GDFTV..GDH300,301..4D..(PSOB,SG);1GDFTV..GDH322..LHD..SG..(P,Q)..GEN;1GDFTV..GDH322..SG..(D,N)..(AGT,GEN);1GDFTV..GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);1GDFTV..GDH300,306..LHD..(SG,SP)..(D,J)..GEN;1GDFTV..GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;1GDFTV..GDH303,304,328..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-10 – … Spec:(J) Spec Note:(Japan made)
90987-T2002 RELAY ASSY, INTAKE HEATER OR GLOW PLUG 1
Note:1GDFTV..GDH306,321..RHD;1GDFTV..GDH300..SG..6FC;1GDFTV..GDH320..RHD..SP;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..LHD..GSOB;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH320..LHD..SP..6F;1GDFTV..GDH320..GSOB,PSOB,SG;1GDFTV..GDH320..SP..6FC..GCC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH300..4D..SP..(ARL,TH);1GDFTV..GDH322..LHD..SG..(P,Q)..GEN;1GDFTV..GDH300,306..LHD..(SG,SP)..(D,J)..GEN;1GDFTV..GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);1GDFTV..GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;1GDFTV..GDH303,304,328..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);1GDFTV..GDH300,301,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,NZ,TH) Production:2019-10 – … Replacements:90987-02025 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 896B1A —
— Part does not apply to this vehicle configuration. 87346K —
— Part does not apply to this vehicle configuration. 87120F —
— Part does not apply to this vehicle configuration. 85940F —
90987-02025 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 1
Note:GDH320..6F;GDH322..GCC,NZ;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH301..GSOB..6FC..D;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GDH322..LHD..GSOB..6FC;GDH300..RHD..4D..SP..6F;GDH322..GSOB..6F..(D,P);GDH301..LHD..GSOB..6F..D;GDH306,320..RHD..6FC..GEN;GDH320..LHD..(PSOB,SG)..6FC;GDH322..LHD..SG..(P,Q)..GEN;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH303,304,328..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH300,301,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH) Production:2019-02 – …
— Part does not apply to this vehicle configuration. 85910V —
90987-02028 RELAY, MAGNET-CLUTCH 1
Note:GDH321..6FC;GRH322..GSOB;GDH322..ARL,GCC,NZ,TH;GDH306,321..RHD..(G,J,N);GRH303,321,322..G,J,N,P,Q;GDH306,322..LHD..(J,P,Q)..GEN;GDH301,303,304,322,GRH301,304..(G,H,J,N)..(AGT,GCC,GEN,TH);GDH300,301,320,328,GRH300,320..(PSOB,SG,SHP,SP)..D..(BZ,GCC,NZ,TH,VN) Production:2019-02 – …
90987-02028 RELAY CONDENSER FAN 1
Note:GDH303..H;GDH322..GCC;GDH306..RHD;GDH300,303,304,320..5D..(GCC,TH) Production:2019-02 – …
90987-04004 RELAY, HEADLAMP 2
Note:GDH321..RHD;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300,GRH322..SG..6FC;GDH322..GSOB..6F..(D,P);GDH328,GRH320,321..D,P,Q;GDH301..LHD..GSOB..6F..D;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH300,GRH300,322..LHD..(GSOB,SP)..GEN;GDH300,GRH322..RHD..4D..(SG,SP)..6F..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,301,322,GRH301..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,NZ,TH) Production:2019-02 – …
— Part does not apply to this vehicle configuration. 87989A —
90987-02027 RELAY, ROOM LAMP CONTROL (REAR) 1
Note:GDH322,GRH322..ARL,GCC;GDH322..LHD..6F..P..GEN Production:2019-03 – 2021-07
— Part does not apply to this vehicle configuration. 82675B —
— Part does not apply to this vehicle configuration. 87989B —
82661-26190 COVER, RELAY BLOCK, NO.5 1
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – …
— Part does not apply to this vehicle configuration. 85276A —

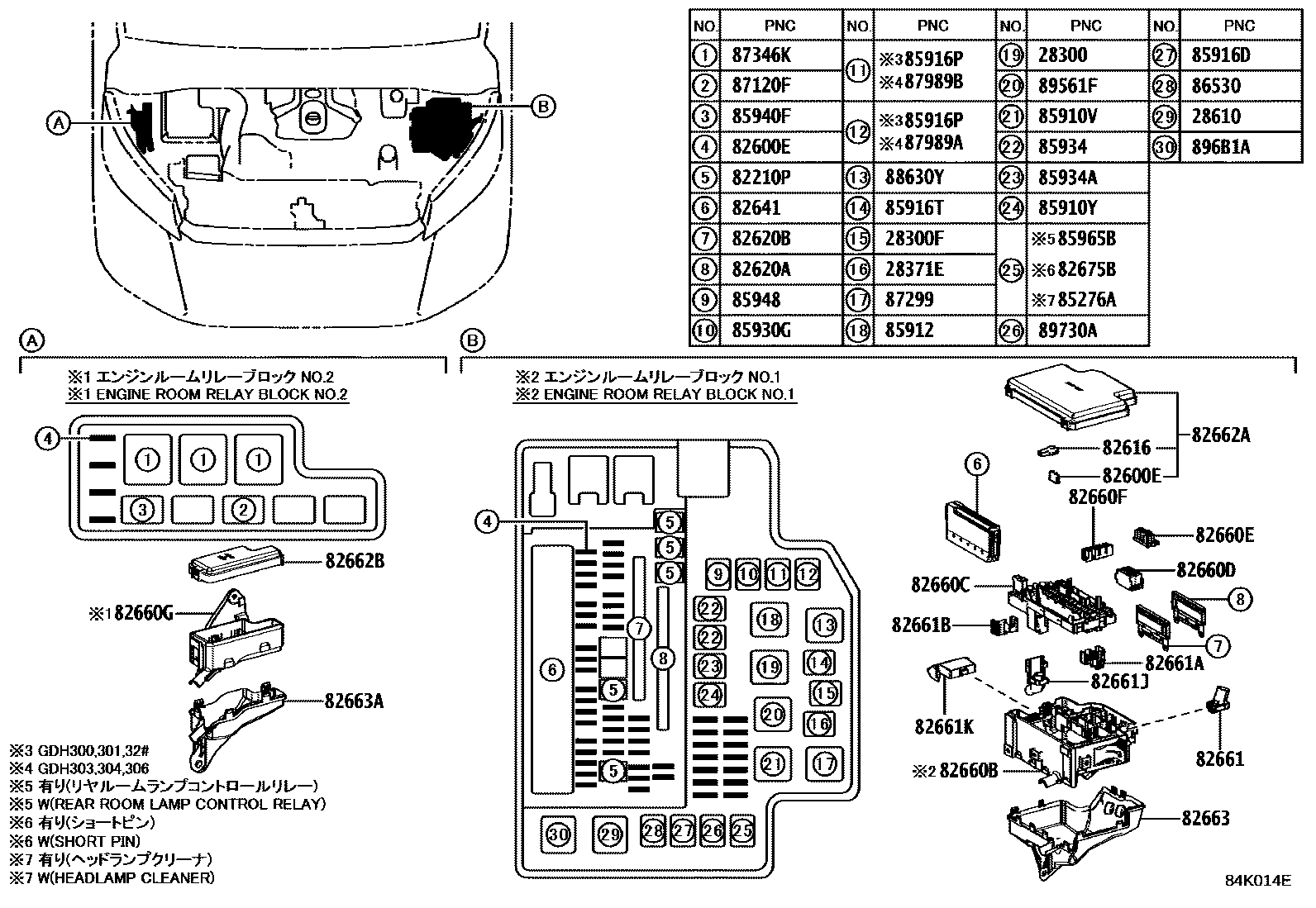

Diagram

39 parts
Toyota Grnva-Hiace-Mjsty 2021 — Switch & Relay & Computer
