Toyota Grnva-Hiace-Mjsty 2021 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84250A | — |
| 84652-33610 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:GRH322..GSOB;GDH320..LHD..6F..GEN;GDH320,GRH322..(D,P)..(AGT,BZ,GCC);GDH320,GRH322..LHD..(PSOB,SG)..6FC..D..GEN;GDH300,301,322,328,GRH300,301,320..LHD..(GSOB,PSOB,SG,SHP,SP)..(D,P)..(BZ,GCC,GEN) Production:2019-02 – … | |||
| 84052-71010 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:GDH321..RHD;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300,GRH322..SG..6FC;GDH322..GSOB..6F..(D,P);GDH328,GRH320,321..D,P,Q;GDH301..LHD..GSOB..6F..D;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH300,GRH300,322..LHD..(GSOB,SP)..GEN;GDH300,GRH322..RHD..4D..(SG,SP)..6F..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,301,322,GRH301..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,NZ,TH) Production:2019-02 – … | |||
| 84450-33040 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:GDH321..RHD;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300,GRH322..SG..6FC;GDH322..GSOB..6F..(D,P);GDH328,GRH320,321..D,P,Q;GDH301..LHD..GSOB..6F..D;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH300,GRH300,322..LHD..(GSOB,SP)..GEN;GDH300,GRH322..RHD..4D..(SG,SP)..6F..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,301,322,GRH301..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,NZ,TH) Production:2019-02 – … | |||
| 84308-26030 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:GDH300..SP..GCC;GDH300..PSOB..6F..GCC;GDH321..RHD..(GEN,IDN);GDH322,GRH322..RHD..6F..N;GDH320,322,GRH300,320,322..GCC Production:2019-02 – 2026-03 | |||
| 8924B-42010 | SENSOR, STEERING | 1 | |
Note:GDH320..6FC..GCC;GDH300..4D..6F..ARL;GDH320..6F..(ARL,GCC);GDH300..PSOB..6F..GCC;GDH300..5D..(HPSOB,PSOB)..6FC..(GCC,GEN);GDH300,322..(SG,SHP,SP)..(D,P)..(GCC,NZ,TH);GDH301,321,GRH300,32#..(PSOB,SG,SHP,SP)..(D,P)..(ARL,GCC,IDN,TH) Production:2019-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 84303 | — |
| 84329-26070 | SWITCH, TURN SIGNAL | 1 | |
Note:GRH320..SP..GCC;GDH300,320,322,GRH300,322..(PSOB,SG,SHP,SP)..(D,P)..GCC Production:2019-02 – … | |||
| 84319-11010 | HOUSING, STEERING WHEEL SWITCH | 1 | |
Note:GDH322..LHD..6FC;GDH320..AGT,BZ,GCC;GDH320..LHD..6F..GEN;GRH322..LHD..(N,P,Q);GDH301..LHD..GSOB..6FC;GDH322..LHD..SG..6F..(GCC,GEN);GDH301,306,GRH301..LHD..SG..(D,J,N);GDH301,322,GRH322..LHD..GSOB..6F..(D,P);GDH320,GRH322..LHD..(PSOB,SG)..6FC..D..GEN;GDH300,303,304,328,GRH300,303,320,321..LHD..(PSOB,SG,SHP,SP)..(D,G,H,J,Q) Production:2019-02 – … | |||
| 90159-50199 | standard | — | |

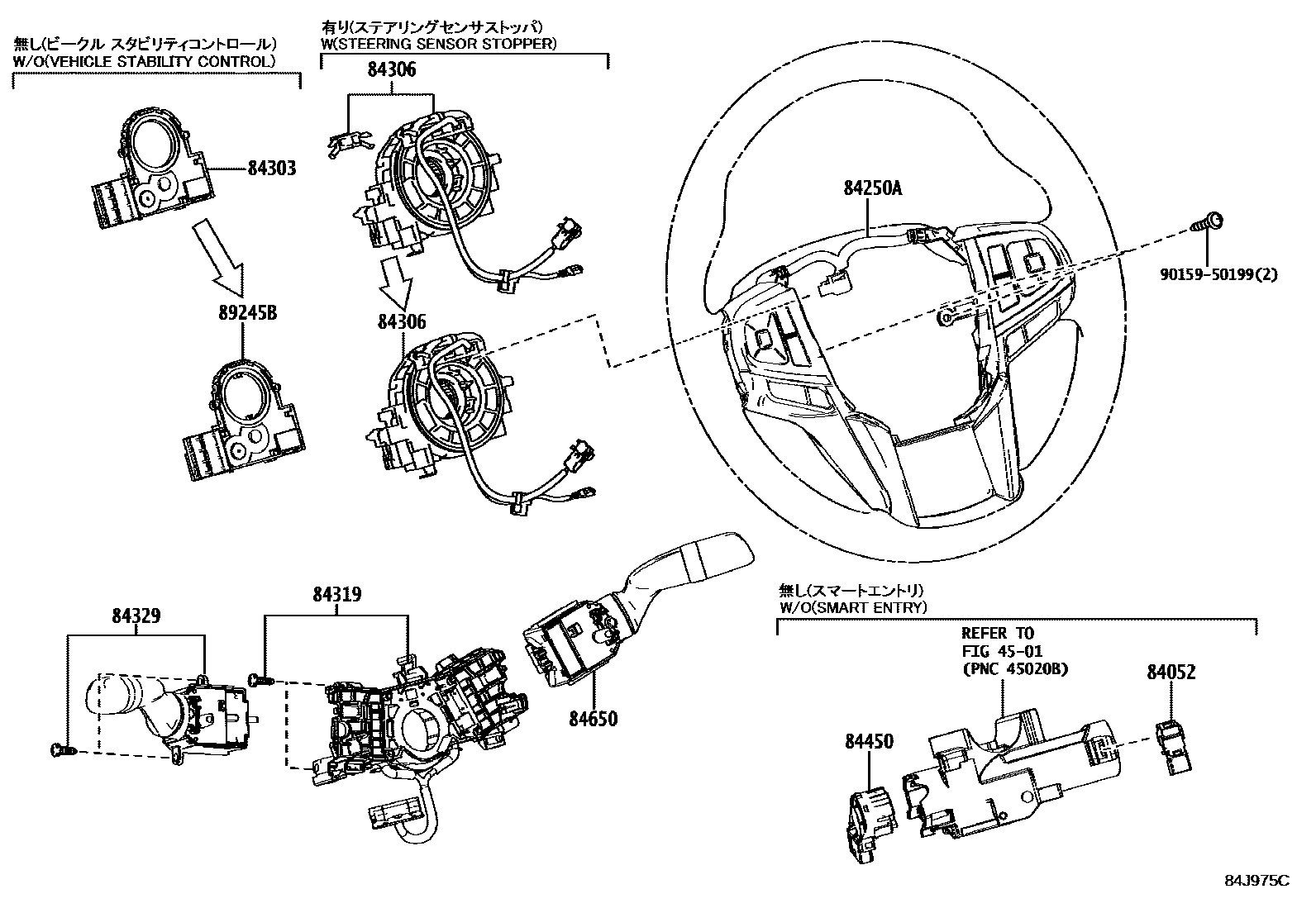

Diagram
8 parts
