Toyota Grnva-Hiace-Mjsty 2021 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 89481B | — |
| — | Part does not apply to this vehicle configuration. | 89425 | — |
| — | Part does not apply to this vehicle configuration. | 89425A | — |
| 83530-28010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:GDH306,321..RHD;GDH300..SG..6FC;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH301..LHD..GSOB..6F..D;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH303,304,328..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH300,301,322..4D..(PSOB,SG)..(D,N,Q)..(AGT,ARL,GCC,GEN,NZ,TH) Production:2019-02 – … Spec:DENSO | |||
| 83530-60010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:GDH306,321..RHD;GDH300..SG..6FC;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH301..LHD..GSOB..6F..D;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH303,304,328..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH300,301,322..4D..(PSOB,SG)..(D,N,Q)..(AGT,ARL,GCC,GEN,NZ,TH) Production:2019-02 – … Spec:YAZAKI | |||
| — | Part does not apply to this vehicle configuration. | 89425B | — |
| — | Part does not apply to this vehicle configuration. | 89425D | — |
| — | Part does not apply to this vehicle configuration. | 84545 | — |
| 89491-26190 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:GDH306,321..RHD;GDH300..SG..6FC;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH320..LHD..SP..6F;GDH320..SP..6FC..GCC;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301..LHD..GSOB..6F..D;GDH322..LHD..SG..(P,Q)..GEN;GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH303,304,328..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH300,301,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,NZ,TH) Production:2019-02 – … | |||
| 33576-26030 | BRACKET, BACK-UP LAMP SWITCH, NO.2 | 1 | |
Note:GDH301..SG..6F;GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P);GDH321,322,GRH322..RHD..6F..(D,N);GDH300,GRH322..(GSOB,PSOB,SHP,SP)..6F;GDH320,328,GRH300,301,320,321..(GSOB,PSOB,SG,SHP,SP)..6F..(ARL,GCC,GEN,VN) Production:2019-02 – … | |||
| 33576-0K040 | BRACKET, BACK-UP LAMP SWITCH, NO.1 | 1 | |
Note:GDH301..SG..6F;GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P);GDH321,322,GRH322..RHD..6F..(D,N);GDH300,GRH322..(GSOB,PSOB,SHP,SP)..6F;GDH320,328,GRH300,301,320,321..(GSOB,PSOB,SG,SHP,SP)..6F..(ARL,GCC,GEN,VN) Production:2019-02 – … | |||
| 84210-71050 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:GDH301..SG..6F;GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P);GDH321,322,GRH322..RHD..6F..(D,N);GDH300,GRH322..(GSOB,PSOB,SHP,SP)..6F;GDH320,328,GRH300,301,320,321..(GSOB,PSOB,SG,SHP,SP)..6F..(ARL,GCC,GEN,VN) Production:2019-02 – … | |||
| 90119-T0260 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 91671-80616 | standard | — | |
| 90179-06274 | standard | — | |
| 96221-10706 | standard | — | |
| 91551-80612 | standard | — | |
| 90105-T0066 | standard | — | |
Replacements:91551-80612 (fitment: unknown) | |||
| 90105-T0070 | standard | — | |
Replacements:91551-80614 (fitment: unknown) | |||
| 90430-18008 | standard | — | |
| 90430-18032 | standard | — | |
| 90178-T0007 | standard | — | |
Replacements:90179-06216 (fitment: unknown) | |||

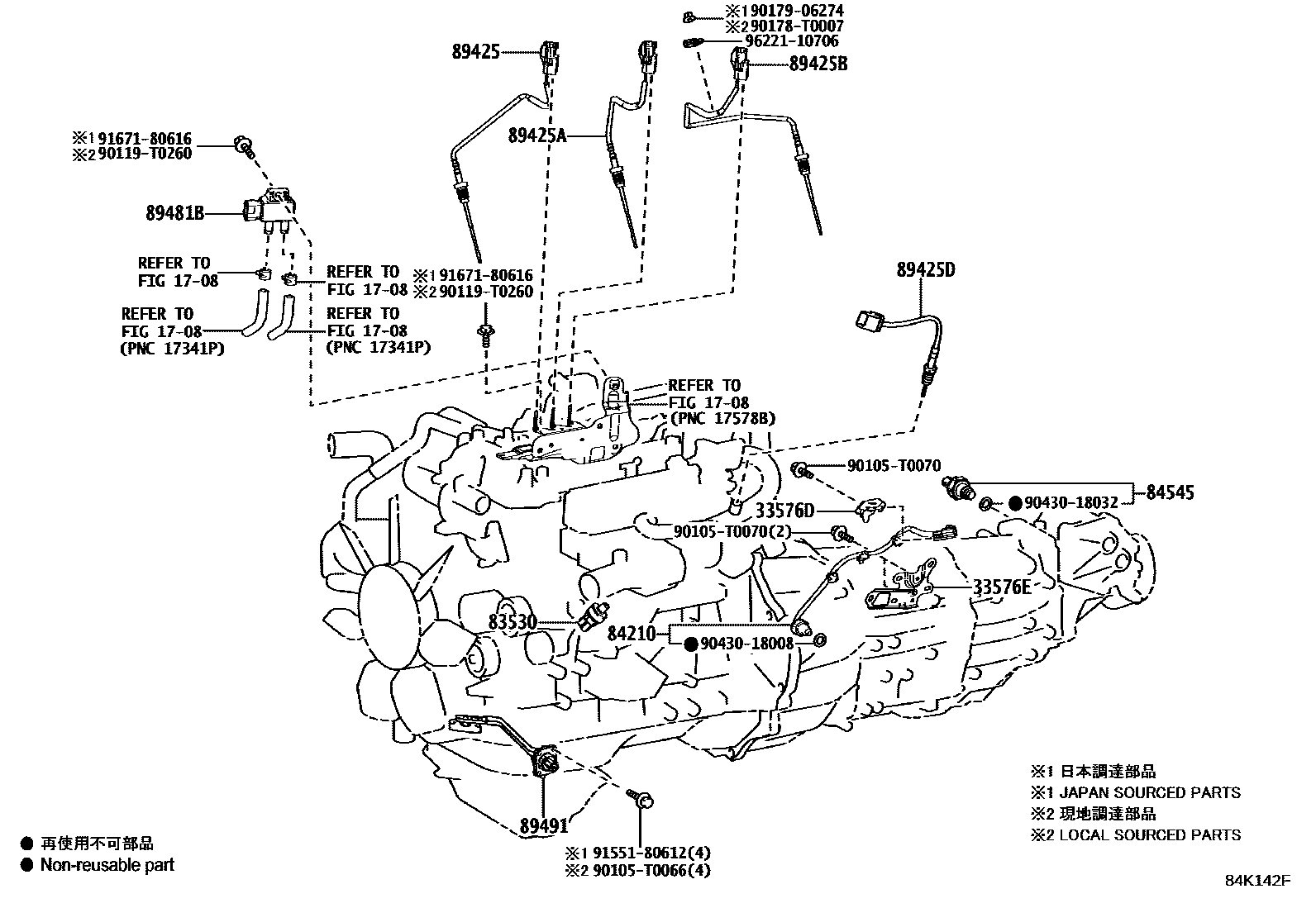

Diagram
16 parts
