General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 84520 —
89650-12450 COMPUTER ASSY, POWER STEERING 1
Note:NZE141..LX Production:2007-08 – 2010-07 Spec:ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
84550-16060 SWITCH ASSY, PARKING BRAKE 1
Note:CE140,NZE141,ZZE14#..RHD..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
84340-69025 SWITCH ASSY, STOP LAMP 1
Note:NZE141,ZZE14#..SED Production:2007-08 – 2009-09 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
81980-46010 FLASHER ASSY, TURN SIGNAL 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82730-12F70 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 1
Note:CE140,NZE141,ZZE142..RHD..(LX,XLI) Production:2007-08 – 2010-07 Spec:WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82673-12210 BRACKET, JUNCTION BLOCK, NO.2 1
Note:CE140,NZE141,ZZE14#..RHD..SED Production:2007-08 – 2010-07
82673-12200 BRACKET, JUNCTION BLOCK, NO.1 1
Note:CE140,NZE141,ZZE14#..RHD..SED Production:2007-08 – 2010-07
82755-12010 BLOCK ASSY, RELAY 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82755-12020 BLOCK ASSY, RELAY 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82817-12B50 PROTECTOR, WIRING HARNESS 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
84345-51010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90987-04010 RELAY ASSY (FOR HEATER BLOWER MOTOR) 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90987-02030 RELAY, IGNITION, NO.1 1
Note:1ZZFE..ZZE142..LHD..GEN;2C,1NZFE..CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
28300-28010 RELAY ASSY, STARTER 1
Note:1ZZFE..ZZE142..LHD..GEN;2C,1NZFE..CE140,NZE141..SED Production:2007-08 – 2010-07 Replacements:28300-21020 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90987-02027 RELAY 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90982-08294 FUSIBLE LINK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:40A,FEMALE,GRN,58V
90982-08295 FUSIBLE LINK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:30A,FEMALE,PNK,58V
90982-08296 FUSIBLE LINK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:50A,FEMALE,RED,58V
90982-09020 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:7.5A,MINI FUSE,BROWN
90982-09021 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:10A,MINI FUSE,RED
90982-09022 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:15A,MINI FUSE,BLUE
90982-09023 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:20A,MINI FUSE,YELLOW
90982-09024 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:25A,MINI FUSE
90982-09025 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:30A,MINI FUSE,GRN
82673-12230 BRACKET, JUNCTION BLOCK 1
Note:CE140,NZE141,ZZE14#..RHD..SED Production:2007-08 – 2010-07
— Part does not apply to this vehicle configuration. 895A1 —
94120-41000 standard —
93315-14012 standard —
90159-60613 standard —
90159-60431 standard —
94151-80600 standard —
90179-06110 standard —
91631-B0618 standard —
82711-1E320 standard —
90119-06952 standard —

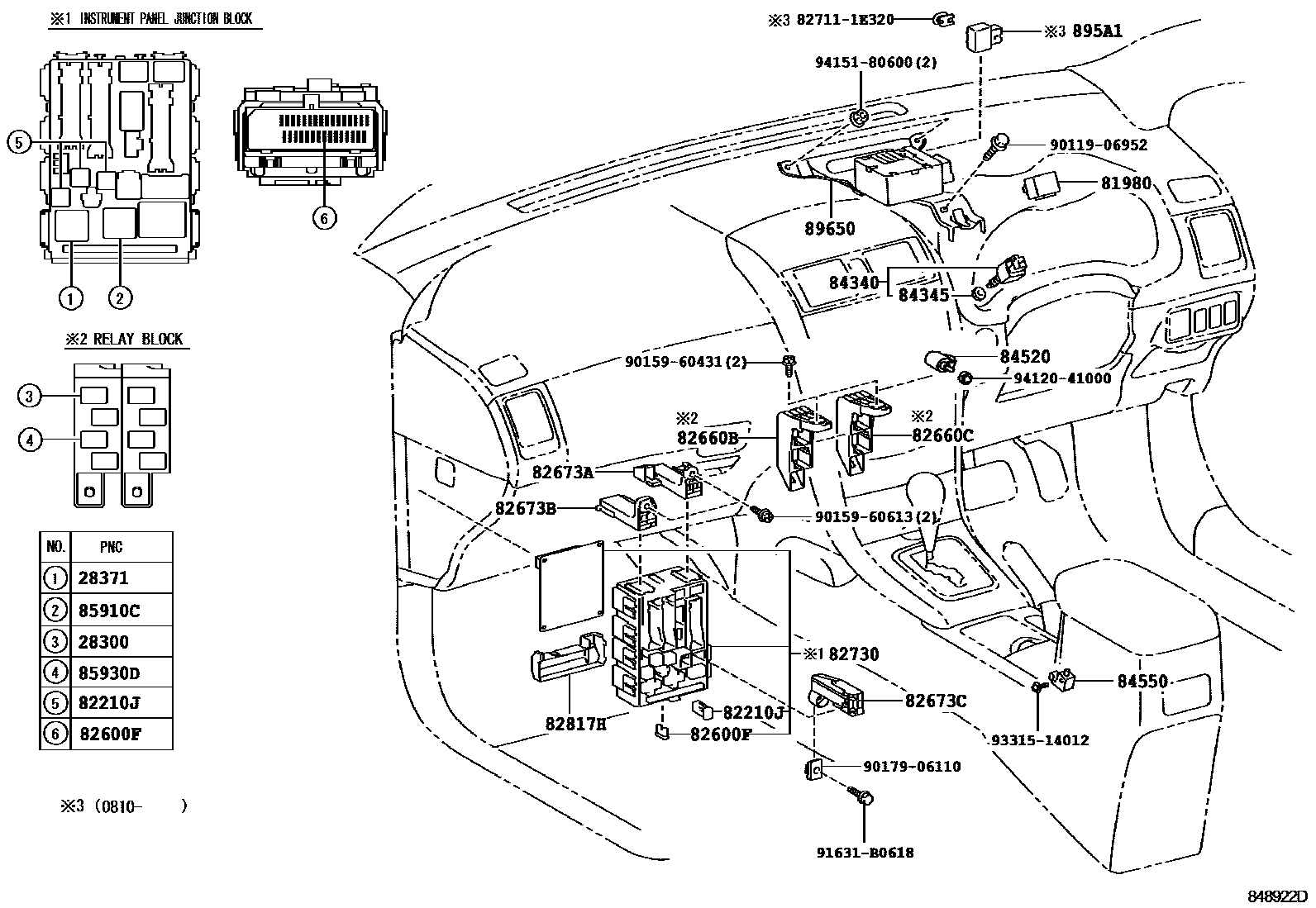

Diagram
