General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

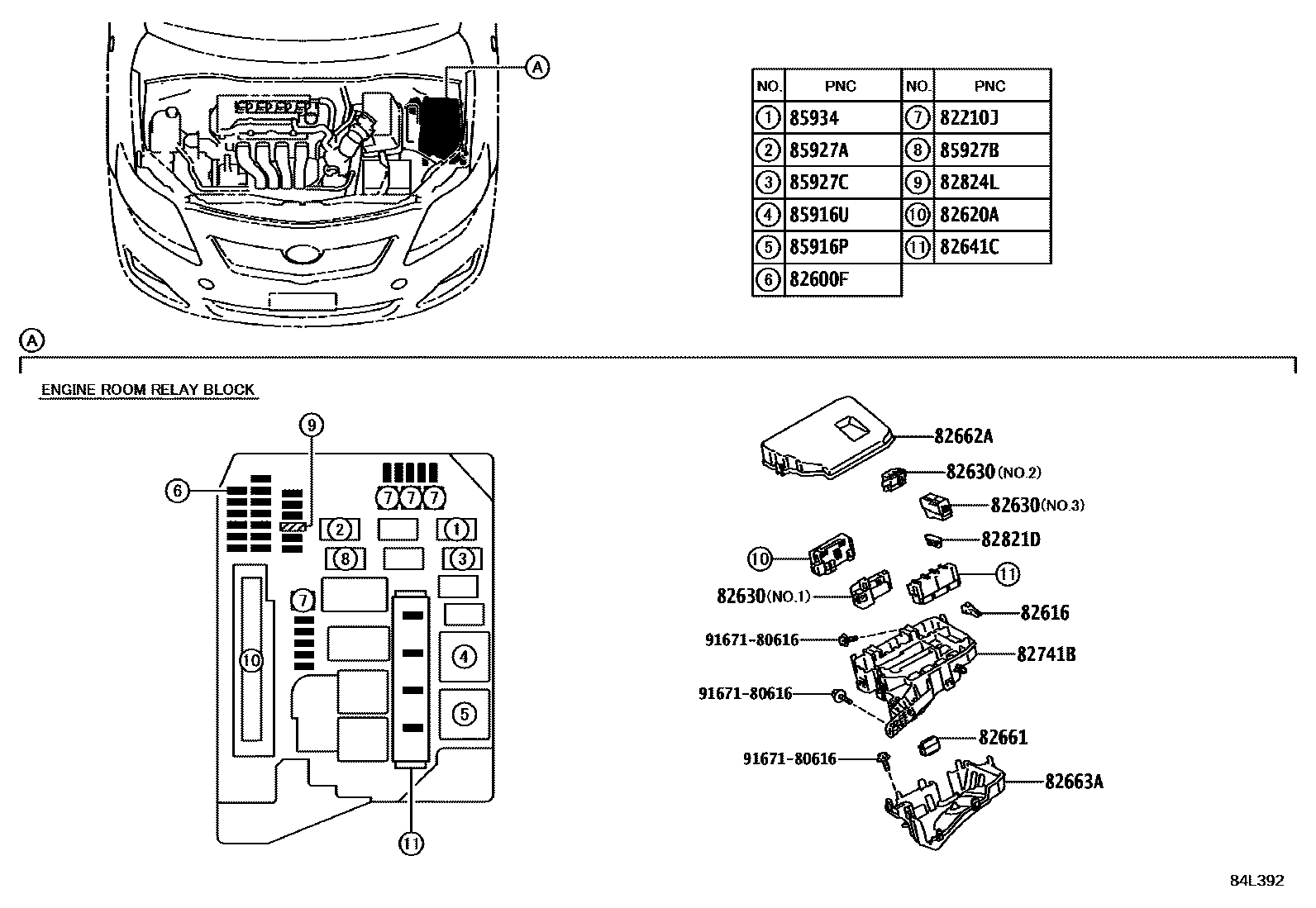

Toyota COROLLA-SED-WG 2007 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82663-12100 COVER, RELAY BLOCK, LOWER, NO.2 1
Note:NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82661-12310 COVER, RELAY BLOCK, NO.1 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82741-12110 BLOCK, ENGINE ROOM RELAY 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
— Part does not apply to this vehicle configuration. 85927C —
90987-02025 RELAY, HEADLAMP 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90987-04010 RELAY, HEADLAMP, NO.2 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2009-01 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90987-02027 RELAY, COOLING FAN, NO.2 1
Note:NZE141..4FC;ZZE142..LHD..GEN Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
— Part does not apply to this vehicle configuration. 85934 —
82631-12070 HOLDER ASSY, FUSE 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:NO.1 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82631-12080 HOLDER ASSY, FUSE 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:NO.2 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82631-12090 HOLDER ASSY, FUSE 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:NO.3 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82662-12370 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:ZZE142..LHD..GEN;CE140,NZE141..LX,XLI Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90982-09020 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:7.5A,MINI FUSE,BROWN
90982-09021 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:10A,MINI FUSE,RED
90982-09022 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:15A,MINI FUSE,BLUE
90982-09023 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:20A,MINI FUSE,YELLOW
90982-09024 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:25A,MINI FUSE
90982-09025 FUSE, FUSE BLOCK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:30A,MINI FUSE,GRN
90982-08294 FUSIBLE LINK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:40A,FEMALE,GRN,58V
90982-08295 FUSIBLE LINK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:30A,FEMALE,PNK,58V
90982-08296 FUSIBLE LINK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:50A,FEMALE,RED,58V
— Part does not apply to this vehicle configuration. 85927B —
82824-20140 PIN, SHORT 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82620-12280 BLOCK ASSY, FUSIBLE LINK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82641-47020 RELAY, INTEGRATION NO.2 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82616-58010 PULLER, FUSE 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82821-47090 COVER, CONNECTOR 2
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07
91671-80616 standard —

Diagram

25 parts
