Toyota COROLLA-ALTIS-SED-WG 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 28520 | — |
| 82673-12080 | BRACKET, JUNCTION BLOCK | 1 | |
Note:CE120,NZE120,ZZE12#..LHD Production:2004-04 – … | |||
| 82730-12150 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:CE120,NZE120,ZZE12#..LHD Production:2004-04 – … | |||
| 82673-12050 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:CE120,NZE120,ZZE12#..LHD Production:2004-04 – … | |||
| 82641-12240 | RELAY, INTEGRATION NO.1 | 1 | |
Note:NZE121..LX;ZZE121..LHD;ZZE122..WG..ARL;CE120,NZE120,ZZE122..GCC,GEN Production:2004-04 – … Replacements:82641-12320 (fitment: unknown) Spec:W(KEY LESS ENTRY) | |||
| 82641-12250 | RELAY, INTEGRATION NO.1 | 1 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| 82611-12120 | COVER, FUSE BLOCK | 1 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| 82672-12410 | COVER, JUNCTION BLOCK | 1 | |
Note:CE120,NZE12#,ZZE12#..ARL,GCC,GEN Production:2004-04 – … | |||
| 82673-12060 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:CE120,NZE120,ZZE12#..LHD Production:2004-04 – … | |||
| 84550-33010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:CE120,NZE120,ZZE12#..LHD Production:2004-04 – 2007-08 | |||
| — | Part does not apply to this vehicle configuration. | 84727 | — |
| — | Part does not apply to this vehicle configuration. | 85431 | — |
| 90987-02027 | RELAY, FOG LAMP | 1 | |
Note:NZE120..GLI..GEN;NZE121,ZZE12#..GLI,LX,ULT,XLI Production:2006-09 – 2007-08 | |||
| 81980-50030 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Spec:PART NUMBER LABEL=81980-50030 | |||
| 90982-09007 | FUSE, FUSE BLOCK | 1 | |
Note:CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09008 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:7.5A,MINI FUSE,BRN | |||
| 90982-09009 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09010 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09012 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:25A,MINI FUSE | |||
| 90982-09013 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:30A,MINI FUSE,GRN | |||
| 82824-30140 | PIN, SHORT | 1 | |
Note:ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) Production:2004-04 – … | |||
| 90987-02020 | RELAY, IGNITION, NO.1 | 1 | |
Note:1ZZFE..ZZE122..WG..ARL;2C,1NZFE,2NZFE,1ZZFE,3ZZFE..CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-02020 | RELAY, DEFOGGER | 1 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Replacements:90987-02027 (fitment: unknown) Spec:PART NUMBER LABEL=90987-02020 | |||
| 90987-02020 | RELAY ASSY, POWER WINDOW | 1 | |
Note:CE120,NZE12#,ZZE12#..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) Production:2004-04 – 2007-08 Replacements:90987-02027 (fitment: unknown) Spec:PART NUMBER LABEL=90987-02020 | |||
| 90987-04010 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| — | Part does not apply to this vehicle configuration. | 28300 | — |
| — | Part does not apply to this vehicle configuration. | 84345 | — |
| 84340-32050 | SWITCH ASSY, STOP LAMP | 1 | |
Note:NZE121..LX;NZE121..MTM..GLI;CE120,NZE120,ZZE12#..SED..(GCC,GEN) Production:2004-04 – 2007-08 Spec:TYPE A:REFER ILLUST. | |||
| 82672-12400 | COVER, JUNCTION BLOCK | 1 | |
Note:CE120,NZE12#,ZZE12#..ARL,GCC,GEN Production:2004-04 – … | |||
| 90159-50295 | standard | — | |
| 90159-50138 | standard | — | |
| 90159-70003 | standard | — | |
| 93315-14012 | standard | — | |

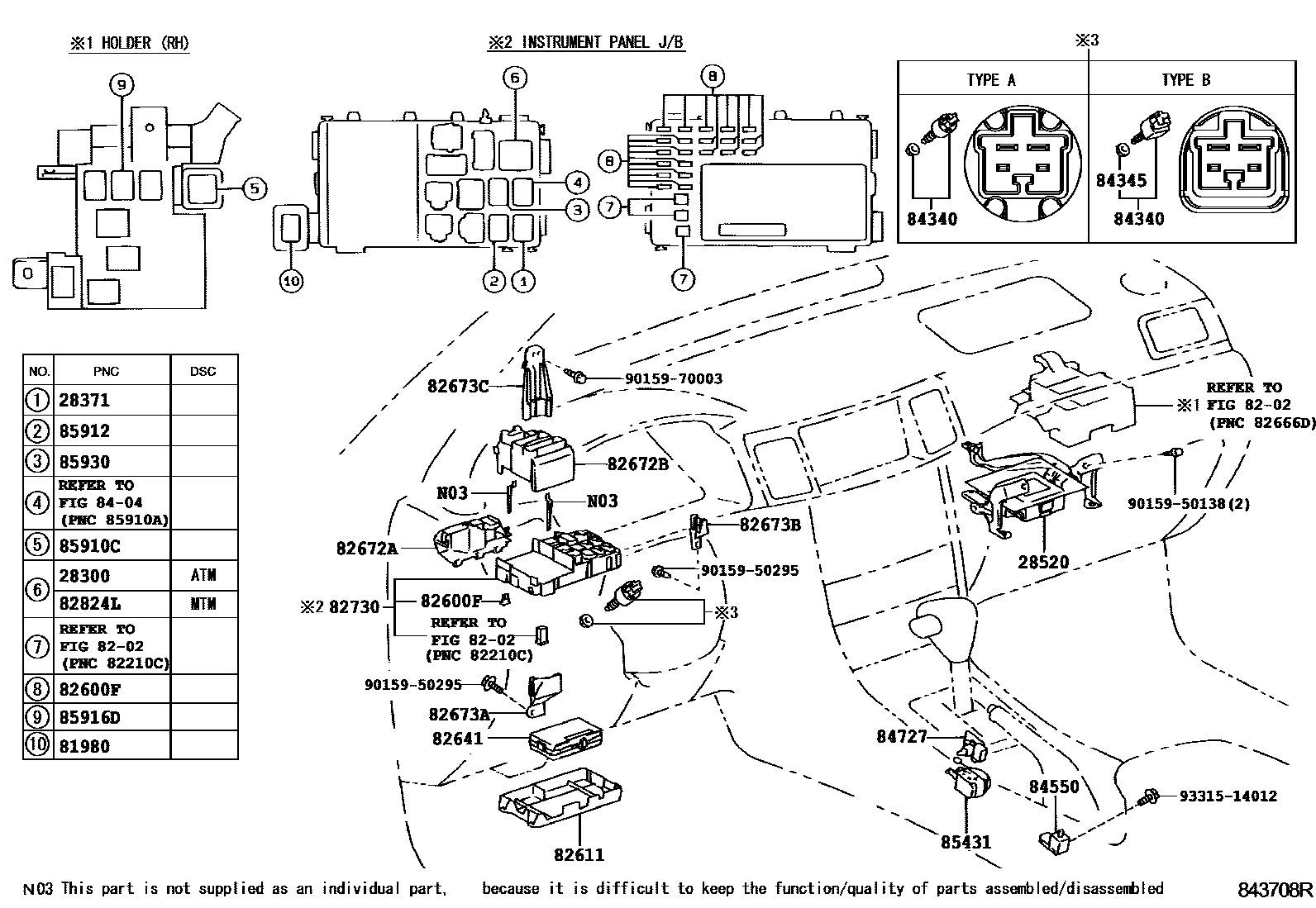

Diagram
28 parts
