Toyota COROLLA-ALTIS-SED-WG 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83181-12020 | SENSOR, SPEEDOMETER | 1 | |
Note:NZE121..MTM;ZZE122..GEN;NZE120,ZZE121..GCC,GEN;ZZE122..MTM..(ARL,GCC) Production:2004-04 – 2007-08 | |||
| 96711-24030 | RING, O (FOR SPEEDOMETER SENSOR) | 1 | |
Note:NZE121..MTM;ZZE122..GEN;ZZE122..SED..MTM..GCC;NZE120,ZZE121..GCC,GEN;ZZE122..WG..MTM..(ARL,GCC) Production:2004-04 – … | |||
| 89615-12120 | SENSOR, KNOCK CONTROL | 1 | |
Note:ZZE12#..GCC,GEN Production:2004-04 – 2007-08 | |||
| 83530-28020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Spec:DENSO | |||
| 83530-60020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Spec:YAZAKI | |||
| 84210-12040 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:CE120,NZE12#,ZZE12#..MTM..(ARL,GCC,GEN) Production:2004-04 – 2007-08 Replacements:84210-52050 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84540 | — |
| 89465-12620 | SENSOR, OXYGEN | 1 | |
Note:ZZE122..GCC;ZZE122..LHD..WG..GEN Production:2004-04 – … | |||
| 90430-18008 | standard | — | |
| 91651-40625 | standard | — | |
| 90179-08153 | standard | — | |
| 90126-08046 | standard | — | |
| 91651-40620 | standard | — | |
| 82715-2B340 | standard | — | |
| 91671-80612 | standard | — | |

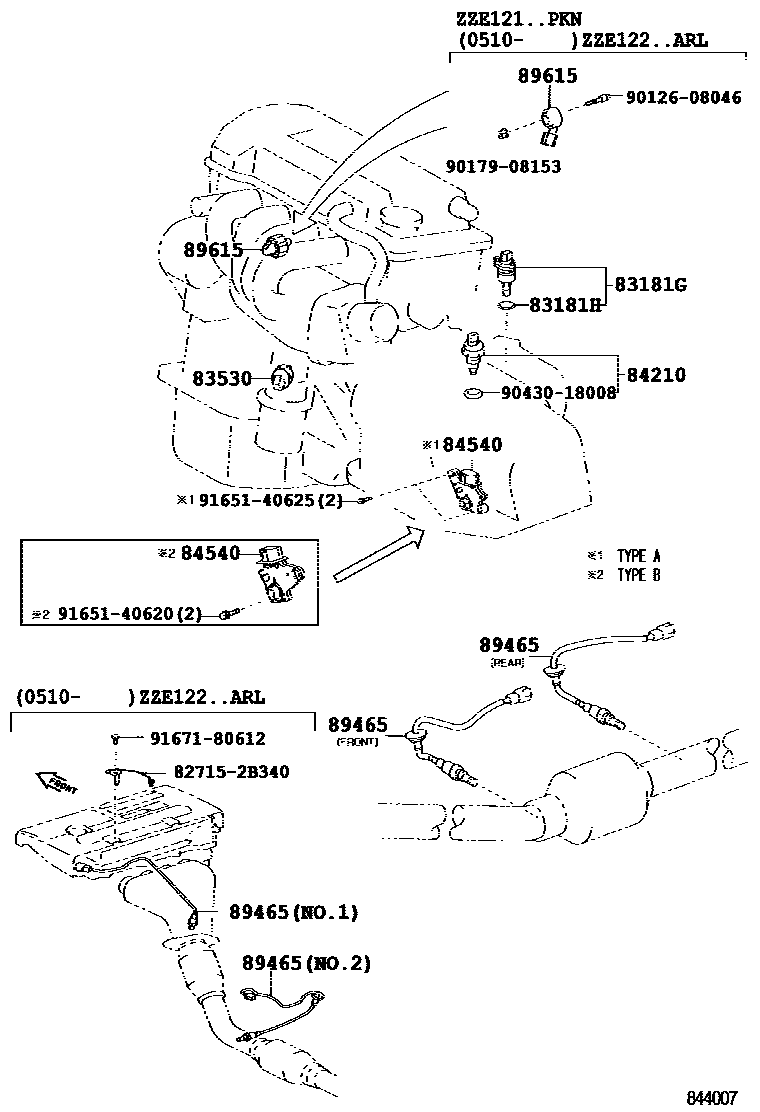

Diagram
14 parts
