Toyota Hilux 2009 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84052-0K020 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:TGN36..5F..CBU;TGN36..4FC..DLX;TGN10,15..GCC,SA;KUN15,35..SR..PHL;TGN36..ANCOM..IV3;TGN26..DCB..ANCOM;KUN15,TGN26..GCC,LA;KUN25..SCB..(LA,MA);KUN15,25..RHD..(SA,TH);KUN35..ANCOM,GEN,LA,SA,TH;KUN25..DCB..(ANCOM,GCC,LA);GGN15,35,KUN10,16,26,36,TGN11;GGN25,KUN25..(4FC,5FC)..(MA,SA);GGN25,TGN16..ANCOM,ARL,GCC,LA,TH;KUN25,TGN26..LHD..(SCB,THDCB,THSCB)..(ANCOM,GEN)..CBU Production:2008-08 – 2012-04 Replacements:84052-71010 (fitment: unknown) | |||
| 84450-0K010 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:TGN36..CBU;KUN25..SCB..MA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN25..(4FC,5FC)..(MA,SA);KUN25..ANCOM,GCC,GEN,LA,PKN,SA,TH;GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH Production:2008-08 – 2012-04 | |||
| 85432-0K010 | SOLENOID, KEY INTERLOCK | 1 | |
Note:TGN36..4FC..DLX;GGN15,25,35,KUN16,2#,36,TGN16,26..4FC,5FC Production:2008-08 – 2012-04 Replacements:85432-71010 (fitment: unknown) | |||
| 84140-0K010 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:KUN26..4FC..TH;GGN25,TGN16..(4FC,5FC)..(SA,TH);GGN25,KUN16..(DCB,XTR)..SR..(ARL,TH);GGN15,35,KUN15,2#,3#,TGN36..SR..(ARL,MA,SA) Production:2008-08 – 2011-08 | |||
| 84306-0K050 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:TGN26..SR..LA;GGN25,35..5FC..(LA,SA);KUN26,3#,TGN36..(DCB,THDCB)..SR..(GEN,LA,PHL,SA) Production:2008-08 – 2010-03 Replacements:84306-0K051 (fitment: unknown) Spec:TYPE A:REFER ILLUST. | |||
| — | Part does not apply to this vehicle configuration. | 84312 | — |
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84652-0K030 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:GGN25..5FC..SA;KUN15..RHD..DCR..(SA,TH);KUN16,25,TGN16..RHD..DLX..(MA,SA,TH);GGN35,KUN26,3#,LAN15,25,35,TGN15,36..RHD..SA Production:2008-08 – 2011-08 | |||
| 84250-71010-B0 | SWITCH ASSY, STEERING PAD | 1 | |
Note:KUN26..THDCB..SR;GGN25,35..5FC..(LA,SA);KUN26,3#,TGN26,36..DCB..SR..(LA,SA) Production:2008-08 – 2011-10 Spec:DK.GRAY,TRIM1# | |||
| — | Part does not apply to this vehicle configuration. | 84247A | — |
| 90159-T0007 | standard | — | |
Replacements:90159-50199 (fitment: unknown) | |||
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) | |||
| 90159-50199 | standard | — | |

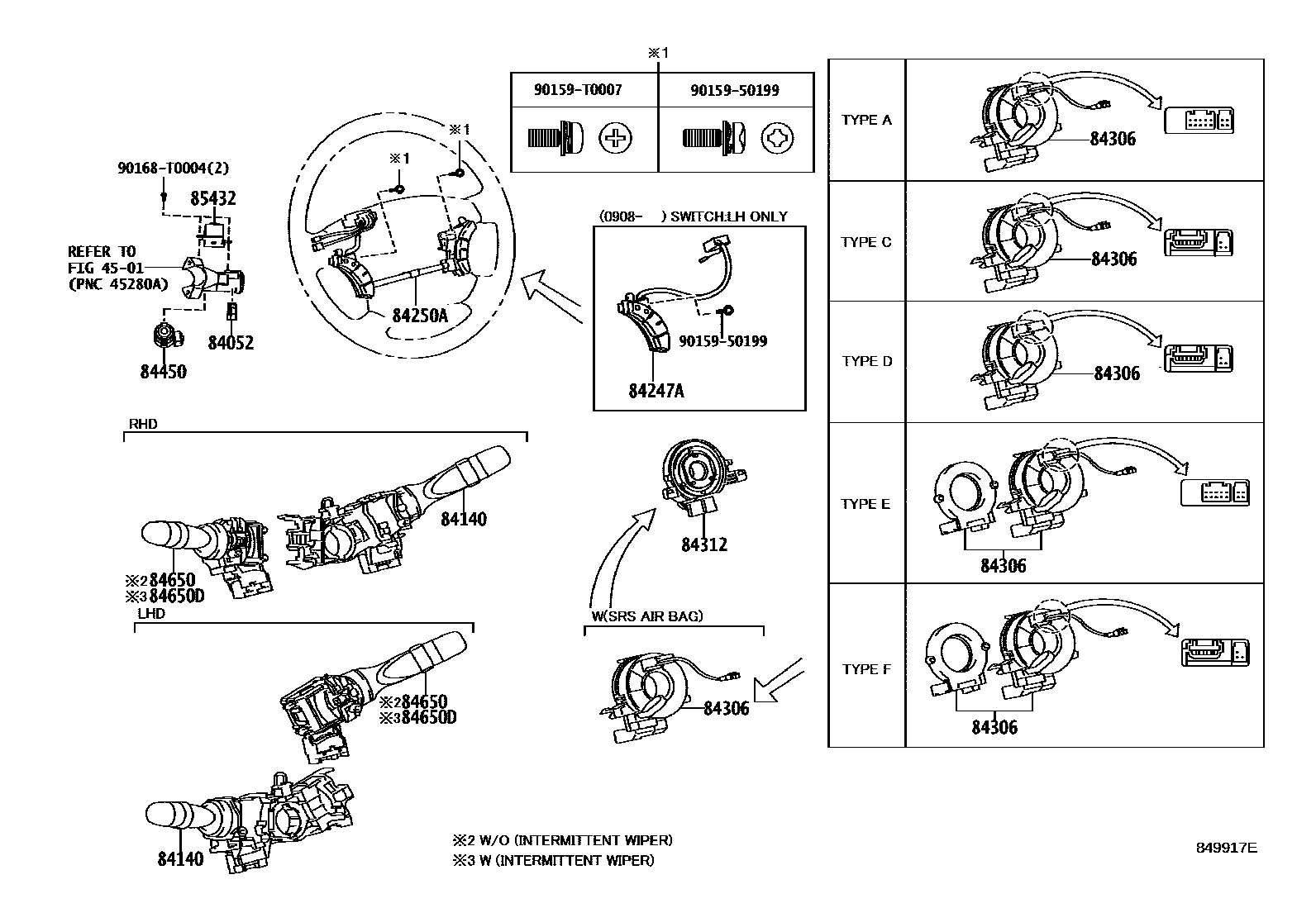

Diagram
10 parts
