General 2009 HILUX KUN26R-PRPSYN
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: ATM, 4-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: SOUTH AFRICA Doors Description: DOUBLE CAB Color Code: 1C0 Trim Code: FH10 Production: 200810-201108 Model Short: KUN26R-PRPSYN Region: OTHER Native Region: GR

Toyota Hilux 2009 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82741-0K010 BLOCK, ENGINE ROOM RELAY 1
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04
90982-09013 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:30A,MINI FUSE,GRN
90982-09020 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:7.5A,MINI FUSE,BROWN
90982-09021 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:10A,MINI FUSE,RED
90982-09022 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:15A,MINI FUSE,BLUE
90982-09023 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:20A,MINI FUSE,YELLOW
90982-09024 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:25A,MINI FUSE
82620-71012 BLOCK ASSY, FUSIBLE LINK 1
Note:TGN16,36..4FC..SR;GGN25,TGN15..ANCOM,GEN,LA;KUN26,3#..(DCB,SCB)..SR..SA Production:2008-08 – 2010-10
82641-71020 RELAY, INTEGRATION NO.1 1
Note:KUN15..PHL..CBU;KUN25..RHD..DLX;KUN25,36..SR..(LA,SA,TH);KUN26..LHD..SR..(GEN,LA);KUN15,LAN15,25..RHD..(DLX,SR);KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04
82663-0K010 COVER, RELAY BLOCK, LOWER 1
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04
82631-0K010 HOLDER ASSY, FUSE 1
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04
82744-0K010 BLOCK, ENGINE ROOM RELAY, NO.2 1
Note:KUN15..PHL..CBU;KUN25..RHD..DLX;KUN25,36..SR..(LA,SA,TH);KUN26..LHD..SR..(GEN,LA);KUN15,LAN15,25..RHD..(DLX,SR);KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04
82616-58010 PULLER, FUSE 1
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04
82662-0K150 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:KUN15..SCB..SA;KUN2#,3#,LAN15,25,35..(DCB,SCB)..SA Production:2009-10 – 2011-08
90987-02025 RELAY ASSY, STARTER 1
Note:1KDFTV..KUN16..4FC;1KDFTV..KUN26..4FC..SA;1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN16..SCB,SMT,XTR;1KDFTV..KUN26..(SCB,XTR)..SA;2KDFTV..KUN25..ANCOM,GCC,GEN,LA,PKN,TH;1KDFTV,2KDFTV,5LE..KUN3#,LAN15,25,35..DLX,SR;1KDFTV,2KDFTV..KUN10,15,26..ARL,GCC,GEN,LA,PHL,TH Production:2008-08 – …
28610-54390 RELAY ASSY, INTAKE HEATER OR GLOW PLUG 1
Note:1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV,5LE..KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) Production:2008-08 – … Replacements:28610-27010 (fitment: unknown)
82661-0K010 COVER, RELAY BLOCK, NO.1 1
Note:KUN25..DLX;TGN15,36..CBU;TGN16..GCC,SA,TH;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;KUN15..LHD..SCB..SA;KUN16..(SCB,SMT)..CBU;KUN26..4FC..(LA,PHL,SA);KUN15..LHD..(GCC,GEN,PHL);KUN26..5F..(LA,PHL,SA,TH);TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN16..(4FC,5FC)..(SA,TH);KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN15,26,TGN16..(THDCB,XTR)..(GEN,TH);GGN25,KUN25..(DCB,SMT)..5F..SR..(ARL,TH);GGN35,KUN10,3#,LAN15,25,35,TGN10,11..DLX,SR Production:2008-08 – … Spec:EXCEPT SOUTH AFRICA
82661-0K020 COVER, RELAY BLOCK, NO.1 1
Note:KUN25..DLX;TGN15,36..CBU;TGN16..GCC,SA,TH;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;KUN15..LHD..SCB..SA;KUN16..(SCB,SMT)..CBU;KUN26..4FC..(LA,PHL,SA);KUN15..LHD..(GCC,GEN,PHL);KUN26..5F..(LA,PHL,SA,TH);TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN16..(4FC,5FC)..(SA,TH);KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN15,26,TGN16..(THDCB,XTR)..(GEN,TH);GGN25,KUN25..(DCB,SMT)..5F..SR..(ARL,TH);GGN35,KUN10,3#,LAN15,25,35,TGN10,11..DLX,SR Production:2008-08 – … Spec:SOUTH AFRICA
90119-06923 standard —
82715-0K800 standard —

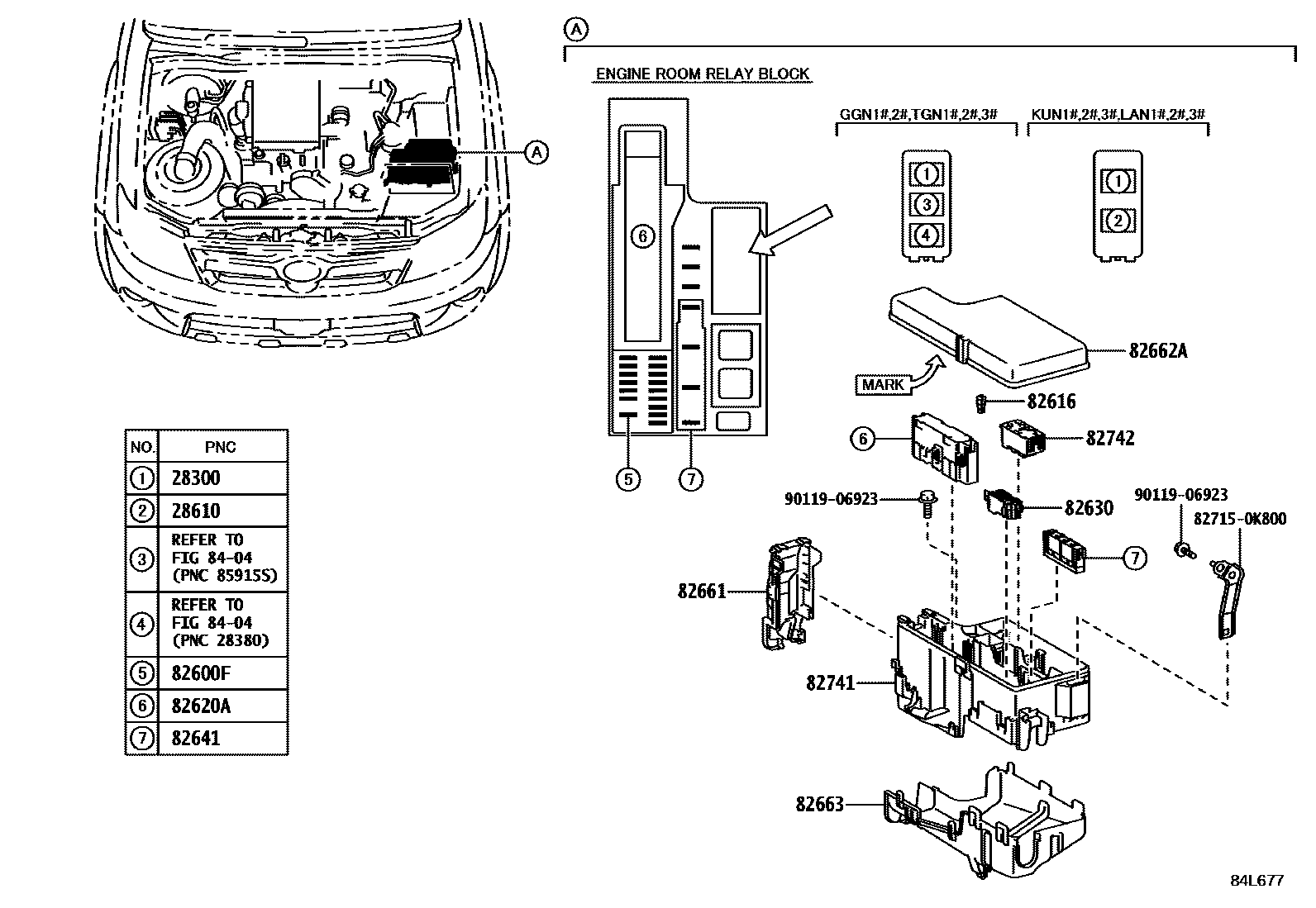

Diagram

20 parts
