Toyota Hilux 2020 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-0K320-C1 | SWITCH ASSY, STEERING PAD | 1 | |
Note:GUN126,136..H..BZAGT;GUN126..ADC..M..HDCR Production:2018-08 – 2020-10 Spec:BLACK/SILVER 21SV85,TRIM20,4#,TYPE B:REFER ILLUST. Fitment:Matches · model | |||
| 84052-0K020 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:GUN136..TDC..S;GUN136..TDC..LA;KUN126..LA,PKN,SA;GGN125,GUN126..L,S,X;GUN125,135..MDC..(L,X);KUN126..(L,M,S)..(GEN,VN);GGN120,135,GUN112,120,122,123;GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GGN125,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH);GUN125,135,KUN112,122,125,13#,LAN125,TGN11#,12#,138..(ADC,ASC,KDC,KSC,MSC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X) Production:2015-05 – 2021-05 Replacements:84052-71010 (fitment: unknown) Fitment:Matches · model | |||
| 84450-02040 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:GUN136..TDC..S;GUN136..TDC..LA;KUN126..LA,PKN,SA;GGN125,GUN126..L,S,X;GUN125,135..MDC..(L,X);KUN126..(L,M,S)..(GEN,VN);GGN120,135,GUN112,120,122,123;GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GGN125,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH);GUN125,135,KUN112,122,125,13#,LAN125,TGN11#,12#,138..(ADC,ASC,KDC,KSC,MSC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X) Production:2015-05 – 2021-05 Replacements:84450-12320 (fitment: unknown) Fitment:Matches · model | |||
| 85432-0D010 | SOLENOID, KEY INTERLOCK | 1 | |
Note:GUN135..6FC..L;GUN136..TDC..6FC..S;KUN126..5FC..(LA,PKN,SA);KUN126..5FC..(L,M,S)..GEN;GGN125,GUN126..6FC..(L,S,X);GUN136..(ADC,SDC,SSC,SXT,TXT)..6FC..(M,S);GGN125,GUN126..6FC..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA);GGN120,135,GUN120,125,135,KUN125,TGN121,126,128,13#..(ADC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM..(L,M,S,X) Production:2015-05 – 2021-05 Replacements:85432-52010 (fitment: unknown) Fitment:Matches · model | |||
| 84307-0K090 | CABLE SUB-ASSY, SPIRAL W/SENSOR | 1 | |
Note:TGN136..S..LA;GUN126..6FC..PH;GUN136..H..BZAGT;TGN126..TDC..S..GCC;GUN126..6FC..S..GCC;GUN125..TXT..6F..IV3;GUN126..M..(GCC,LA,TAIW);GUN126..6FC..H..(BZAGT,TH,VN);GUN125,136..(ADC,TSC)..6FC..(M,X);GUN126..(TSC,TXT)..6F..(ARL,GCC)..CBU;GUN126..RHD..(KDC,MDC,SDC,SXT)..(H,M);GUN125,136..(SDC,SXT,TDC)..M..(IDN,SA);GUN125..LHD..(SSC,TDC)..6F..S..(GCC,GEN,SA);GGN12#,135,GUN123,KUN125..(5F,5FC,6FC)..(H,M,S);GUN122,126,KUN126..(5F,5FC,6F)..(H,X)..(DCR,HDCR)..(ARL,BZAGT,VN) Production:2015-05 – 2021-05 Replacements:84307-0K091 (fitment: unknown) Fitment:Matches · model | |||
| 84308-0D020 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:TGN136..S..LA;GUN126..6FC..PH;GUN136..H..BZAGT;TGN126..TDC..S..GCC;GUN126..6FC..S..GCC;GUN125..TXT..6F..IV3;GUN126..M..(GCC,LA,TAIW);GUN126..6FC..H..(BZAGT,TH,VN);GUN125,136..(ADC,TSC)..6FC..(M,X);GUN126..(TSC,TXT)..6F..(ARL,GCC)..CBU;GUN126..RHD..(KDC,MDC,SDC,SXT)..(H,M);GUN125,136..(SDC,SXT,TDC)..M..(IDN,SA);GUN125..LHD..(SSC,TDC)..6F..S..(GCC,GEN,SA);GGN12#,135,GUN123,KUN125..(5F,5FC,6FC)..(H,M,S);GUN122,126,KUN126..(5F,5FC,6F)..(H,X)..(DCR,HDCR)..(ARL,BZAGT,VN) Production:2015-05 – 2021-05 Spec:TYPE A:REFER ILLUST. Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84652-06260 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:GGN125,GUN125,126,136,KUN125,126,136,TGN126,128,13#..LHD..(ADC,SDC)..(H,M) Production:2015-11 – 2020-10 Fitment:Matches · model | |||
| 84140-06600 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:GUN126,136,KUN125,126,136,TGN126,136..LHD..(ADC,SDC)..M..(LA,SA) Production:2015-11 – 2020-10 Fitment:Matches · model | |||
| 8924B-0D020 | SENSOR, STEERING | 1 | |
Note:TGN138..M,S;TGN126..M..LA;TGN121..ARL,GCC,SA;TGN126,136..ADC..S;GUN126..RHD..SDC..M;GUN126..6F..ARL..IV3;TGN126..(L,X)..(GCC,LA);GUN125..(ADC,TDC)..6F..LA;GUN135..LHD..(ADC,SDC,TDC)..(LA,SA);GUN125..LHD..(SSC,TDC)..S..(GEN,SA);GUN125..(ADC,TDC,TSC)..6F..(ARL,BZAGT,GCC);GUN125..(ADC,TDC,TXT)..6FC..(ARL,GCC,IDN,LA);GUN136..(ADC,SDC,SXT,TDC)..(H,M)..(ARL,BZAGT,LA,SA);GUN125,TGN136..LHD..(ASC,SDC)..(M,X)..(BZAGT,SA)..CBU;GUN126,TGN136..(ADC,TDC)..(L,X)..(HTWC,IART)..(BZAGT,LA);GUN13#..(ADC,TDC,TSC,TXT)..(L,S,X)..HDCR..(ARL,BZAGT,GEN);GUN135,TGN126..(ASC,TDC,TSC)..(M,S,X)..(BZAGT,GCC,GEN)..CBU;GGN125,GUN112,122,TGN11#,120,128..(H,L,M,S)..(BZAGT,GCC,LA,SA);GUN126..(ADC,KDC,PDC,SXT,TDC,TSC)..6F..(H,M,S,X)..HDCR..(ARL,BZAGT,GCC,KEN,LA,PKN,SA)..CBU;GUN126..(ADC,KDC,MDC,PDC,SXT,TDC,TSC,TXT)..6FC..(ARL,BZAGT,GCC,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN) Production:2015-05 – 2021-05 Fitment:Matches · model | |||
| 90159-50199 | standard | — | |
Fitment:Matches · model | |||
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) Fitment:Matches · model | |||

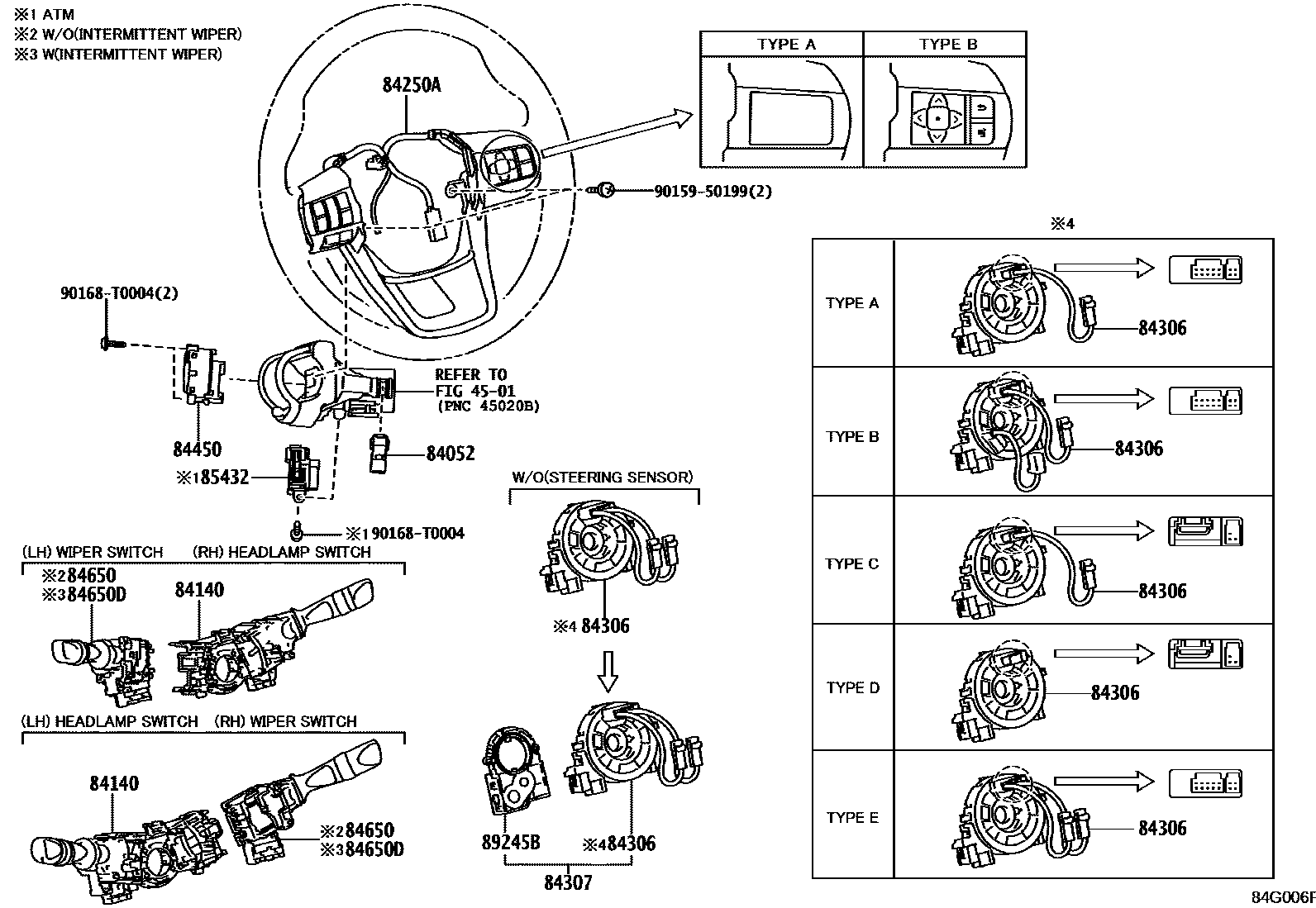

Diagram
11 parts
