Open RegionYearModelModelCode Details
USA / Canada 2018 HILUX GUN125L-DGFXHF
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA Doors Description: ARGENTINE PRODUCED DOUBLE CAB Color Code: 3T6 Trim Code: FG20 Production: 201511-202010 Model Short: GUN125L-DGFXHF Region: NA Native Region: US

Toyota Hilux 2018 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
88280-42010 SWITCH ASSY, CLUTCH 1
Note:TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,125,126,13#,KUN112,12#,13#,TGN11#,120,121,126,138..MTM Production:2015-05 – 2021-05 Fitment:Matches · model
69065-0K010 CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH 1
Note:GUN135..L..MA;KUN125..X..GEN;GUN126..L..BZAGT;GUN135..6F..S..MA;GUN125..6F..S..LA;GUN125..RHD..6FC..(L,M);GUN125..TDC..(M,X)..(LA,VN);GUN125..(ADC,ASC,TSC)..X..(GEN,LA);GUN125..(L,S,X)..(BZAGT,IDN,MA,PH,TH,VN);GUN136,KUN136,TGN128,13#..BZAGT,GEN,LA,TH;GUN135..(L,M,S,X)..(BZAGT,GEN,LA,PH,TH,VN);GUN122,125..LHD..TDC..(5F,6FC)..HDCR..(GEN,LA);GUN126,TGN126..(H,M,S,X)..(BZAGT,LA,MA,PH,PKN,TH,VN);GGN125,GUN112,120,122,123,KUN112,125,126,135,TGN110,121..IDN,LA,PH,TH,VN Production:2015-05 – 2021-05 Fitment:Matches · model
84520-42010 SWITCH ASSY, CLUTCH START 1
Note:TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..MTM Production:2015-05 – 2021-05 Fitment:Matches · model
84550-02030 SWITCH ASSY, PARKING BRAKE 1
Note:TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138 Production:2015-05 – 2021-05 Replacements:84550-16060 (fitment: unknown) Fitment:Matches · model
— Part does not apply to this vehicle configuration. 8598A —
— Part does not apply to this vehicle configuration. 89120A —
— Part does not apply to this vehicle configuration. 89530C —
89533-71092 COMPUTER, 4 WHEEL DRIVE CONTROL 1
Note:TGN126..SA;KUN125..LHD..S..SA;GUN126..TDC..6F..LA;GUN126..ADC..6FC..X;GGN125,LAN125,TGN128..LHD;KUN125..LHD..(M,X)..(GEN,SA);GUN126..TDC..6FC..M..(GCC,LA);GUN126..LHD..(ADC,SDC)..(H,L,M,S);GUN125..TDC..(M,S,X)..(GCC,LA,PH,VN);GUN125..LHD..TDC..6F..(L,X)..(GCC,GEN);GUN126..LHD..(ASC,TDC)..(BZAGT,GEN,PH,VN);KUN126,TGN126..LHD..(5F,5FC,6F)..(H,M)..(BZAGT,GEN,LA,SA,VN);GUN125..LHD..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..(BZAGT,GEN,LA,SA) Production:2017-06 – 2020-10 Spec:DIFFERENTIAL LOCK-WITH Fitment:Matches · model
90982-09019 INSTRUMENT PANEL FUSE 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:5A,MINI FUSE,TAN Fitment:Matches · model
90982-09020 INSTRUMENT PANEL FUSE 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · model
90982-09021 INSTRUMENT PANEL FUSE 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:10A,MINI FUSE,RED Fitment:Matches · model
90982-09022 INSTRUMENT PANEL FUSE 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:15A,MINI FUSE,BLUE Fitment:Matches · model
90982-09023 INSTRUMENT PANEL FUSE 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:20A,MINI FUSE,YELLOW Fitment:Matches · model
90982-09024 INSTRUMENT PANEL FUSE 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:25A,MINI FUSE Fitment:Matches · model
90982-09025 INSTRUMENT PANEL FUSE 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:30A,MINI FUSE,GRN Fitment:Matches · model
82673-0K010 BRACKET, JUNCTION BLOCK, NO.1 1
Note:GUN135..M..PH;GUN125,135..LHD..(BZAGT,GCC,GEN,LA,SA,VN);GGN125,GUN112,122,126,136,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD Production:2015-05 – 2020-10 Fitment:Matches · model
82730-0K570 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 1
Note:GUN126,135..LHD..X;GUN125..TSC..L..GCC;GUN112,122..LHD..(L,X);GUN125..LHD..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN125..LHD..(ASC,SDC,SSC,TSC)..(S,X)..(BZAGT,LA,SA) Production:2015-05 – 2019-05 Fitment:Matches · model
82672-0K010 COVER, JUNCTION BLOCK 1
Note:GUN126..6F..IV3;GUN126..L..BZAGT;GUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN122..6F..(L,S,X);GUN123..(TSC,TXT)..CBU;GUN125..6F..(L,M)..GCC;GUN125..TDC..6F..S..GCC;GUN112,120,136..DCR,HDCR;GUN125..(TDC,TXT)..6FC..IV3;GUN122..(L,S,X)..(GCC,PH,SA);GUN125..(ASC,TXT)..(M,S,X)..CBU;GUN125..6FC..(ARL,GCC,GEN,LA,SA)..CBU;GUN126..(ASC,TDC)..6F..(ARL,BZAGT)..CBU;GUN135..(ARL,BZAGT,GEN,LA,PH,SA,TH)..CBU;GUN126..6F..HDCR..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH);GUN126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC..(H,M,S,X);GUN125..(ADC,SDC,SSC,SXT,TDC,TSC)..6F..(ARL,BZAGT,GEN,LA,PH,SA,TH) Production:2015-05 – 2019-05 Fitment:Matches · model
89221-0K051 COMPUTER, BODY 1
Note:GUN126..TDC..6F..X;GUN126..LHD..H..GEN;GUN125,KUN136..LA,VN;GUN125..LHD..TDC..M..GEN;GUN126,KUN125,126,135,TGN126..(M,S)..LA;GUN135,TGN136..LHD..(ADC,TDC)..(GEN,LA) Production:2017-08 – 2020-10 Fitment:Matches · model
82673-0K020 BRACKET, JUNCTION BLOCK, NO.2 1
Note:TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138..ADC,ASC,KDC,KSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT Production:2015-05 – 2021-05 Fitment:Matches · model
90982-08294 INSTRUMENT PANEL FUSIBLE LINK 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:40A,FEMALE,GRN,58V Fitment:Matches · model
90982-08295 INSTRUMENT PANEL FUSIBLE LINK 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – … Spec:30A,FEMALE,PNK,58V Fitment:Matches · model
84340-09041 SWITCH ASSY, STOP LAMP 1
Note:GUN125..TDC..6FC..(L,M,S);GUN126..TXT..6F..ARL..CBU;GUN125..(ADC,MDC,SDC,SSC,TSC)..6FC;GUN125..(TDC,TSC)..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,SXT,TXT)..6F;GUN126,13#,TGN121..BZAGT,GCC,GEN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,126,128,13# Production:2017-06 – 2021-05 Replacements:84340-19026 (fitment: unknown) Fitment:Matches · model
— Part does not apply to this vehicle configuration. 89111 —
84345-0K010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13# Production:2015-05 – 2021-05 Replacements:84345-51010 (fitment: unknown) Fitment:Matches · model
— Part does not apply to this vehicle configuration. 89960 —
90159-T0003 standard —
Fitment:Matches · model
90178-T0018 standard —
Fitment:Matches · model
90119-T0313 standard —
Replacements:91673-80620 (fitment: unknown) Fitment:Matches · model
90178-T0007 standard —
Replacements:90179-06216 (fitment: unknown) Fitment:Matches · model
82715-KK300 standard —
Fitment:Matches · model
90170-T0005 standard —
Replacements:94120-41000 (fitment: unknown) Fitment:Matches · model
90119-06915 standard —
Fitment:Matches · model
90119-T0130 standard —
Replacements:90119-06915 (fitment: unknown) Fitment:Matches · model
90178-W0019 standard —
Replacements:94151-80600 (fitment: unknown) Fitment:Matches · model
94151-80600 standard —
Fitment:Matches · model

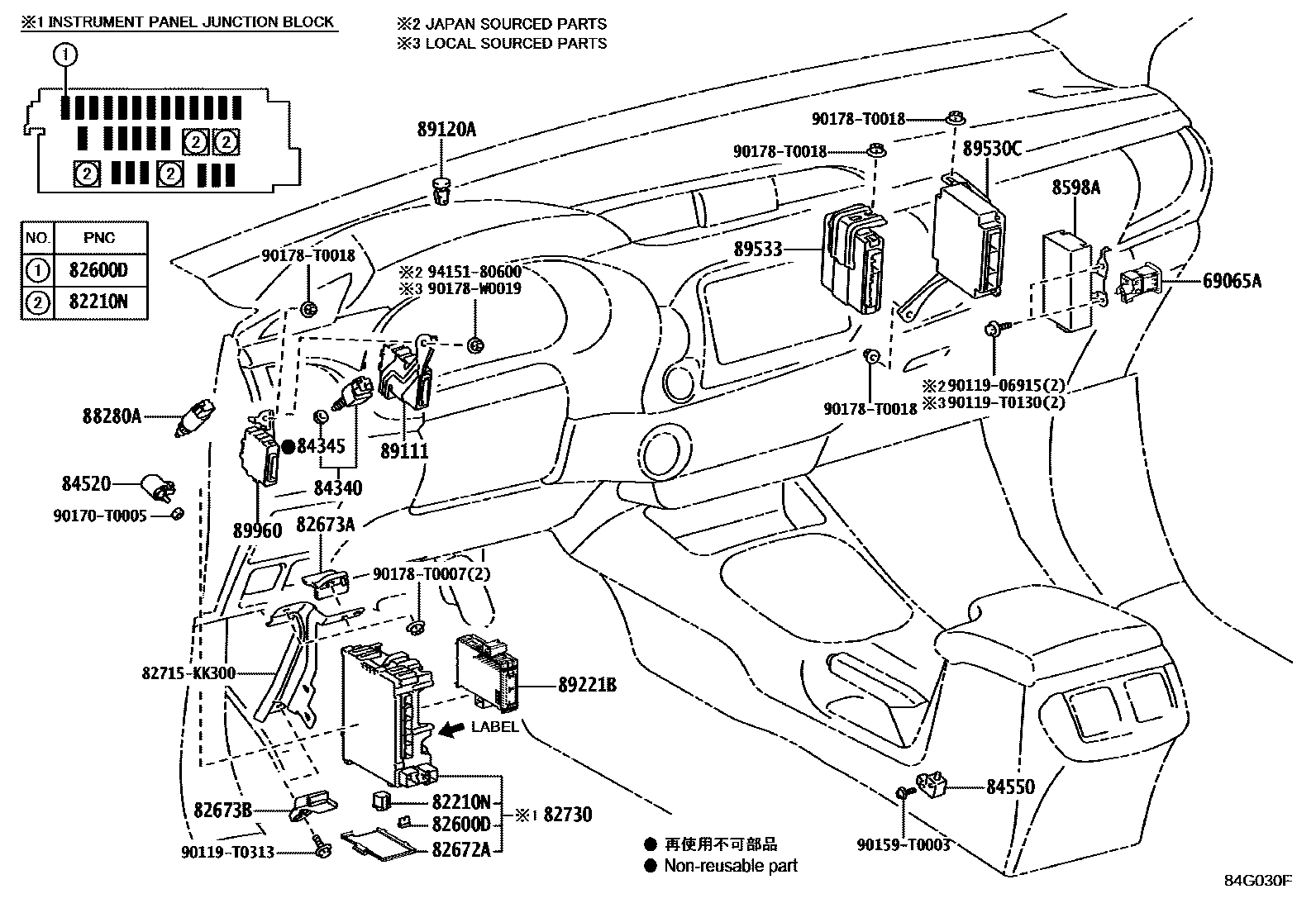

Diagram

31 parts
Toyota Hilux 2018 — Switch & Relay & Computer
