Open RegionYearModelModelCode Details
USA / Canada 2018 HILUX GUN125L-DGFXHF
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA Doors Description: ARGENTINE PRODUCED DOUBLE CAB Color Code: 3T6 Trim Code: FG20 Production: 201511-202010 Model Short: GUN125L-DGFXHF Region: NA Native Region: US

Toyota Hilux 2018 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84210-71050 SWITCH ASSY, BACK-UP LAMP 1
Note:GUN122,125,126,13#,KUN125,126,13#..6F Production:2015-05 – 2021-05 Fitment:Matches · model
— Part does not apply to this vehicle configuration. 84545 —
— Part does not apply to this vehicle configuration. 84540 —
33576-0K010 BRACKET, BACK-UP LAMP SWITCH, NO.1 1
Note:GUN122,125,126,13#,KUN125,126,13#..6F Production:2015-05 – 2021-02 Spec:TYPE A:REFER 33-01 Fitment:Matches · model
33576-0K040 BRACKET, BACK-UP LAMP SWITCH, NO.1 1
Note:GUN122,125,126,KUN125,126,13#..6F;GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN) Production:2015-05 – 2021-05 Spec:TYPE B:REFER 33-01 Fitment:Matches · model
33576-0K020 BRACKET, BACK-UP LAMP SWITCH, NO.2 1
Note:GUN122,125,126,13#,KUN125,126,13#..6F Production:2015-05 – 2021-02 Spec:TYPE A:REFER 33-01 Fitment:Matches · model
33576-0K050 BRACKET, BACK-UP LAMP SWITCH, NO.2 1
Note:GUN122,125,126,KUN125,126,13#..6F;GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN) Production:2015-05 – 2021-05 Spec:TYPE B:REFER 33-01 Fitment:Matches · model
33576-0K030 BRACKET, BACK-UP LAMP SWITCH, NO.3 1
Note:GUN122,125,126,13#,KUN125,126,13#..6F Production:2015-05 – 2021-02 Spec:TYPE A:REFER 33-01 Fitment:Matches · model
33576-0K060 BRACKET, BACK-UP LAMP SWITCH, NO.3 1
Note:GUN122,125,126,KUN125,126,13#..6F;GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN) Production:2015-05 – 2021-05 Spec:TYPE B:REFER 33-01 Fitment:Matches · model
82715-71120 standard —
Fitment:Matches · model
82715-0K680 standard —
Replacements:82715-71120 (fitment: unknown) Fitment:Matches · model
90461-08365 standard —
Fitment:Matches · model
90119-08C62 standard —
Fitment:Matches · model
90105-T0070 standard —
Replacements:91551-80614 (fitment: unknown) Fitment:Matches · model
90430-18008 standard —
Fitment:Matches · model
90430-18032 standard —
Fitment:Matches · model

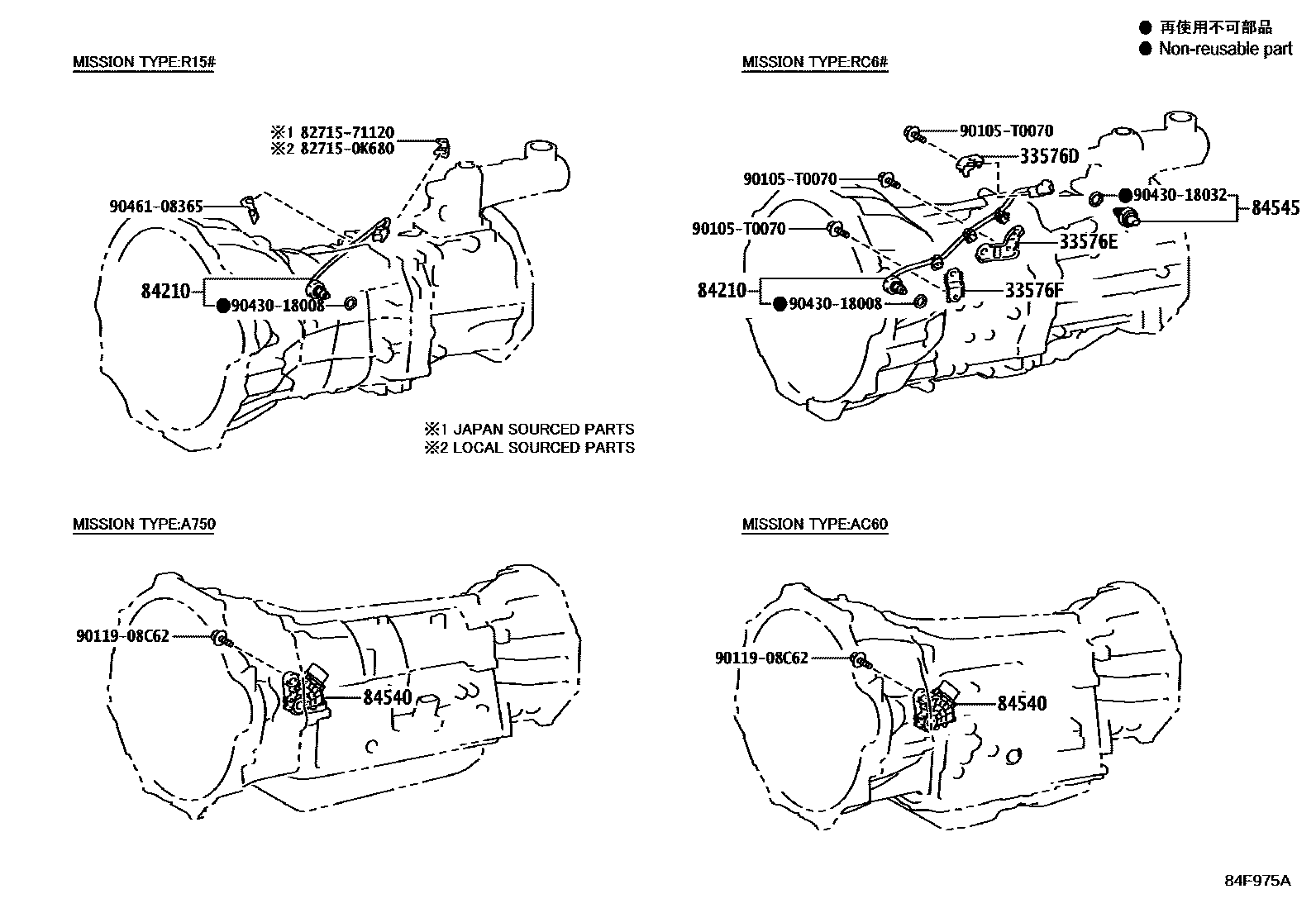

Diagram

14 parts
Toyota Hilux 2018 — Switch & Relay & Computer
