Toyota Corolla 2014 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90080-87024 | RELAY, HEATER | 1 | |
Note:ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD) Production:2013-08 – 2016-08 Replacements:90987-02025 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85916D | — |
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:30A,FEMALE,PNK,32V | |||
| 90982-09019 | FUSE, FUSE BLOCK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | FUSE, FUSE BLOCK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | FUSE, FUSE BLOCK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | FUSE, FUSE BLOCK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | FUSE, FUSE BLOCK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:25A,MINI FUSE | |||
| 89220-02350 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:ZRE172..GEN Production:2014-04 – 2016-08 | |||
| 84550-02020 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:ZRE172 Production:2013-08 – 2016-08 | |||
| — | Part does not apply to this vehicle configuration. | 89120A | — |
| 84345-08010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:84345-51010 (fitment: unknown) | |||
| 84340-09070 | SWITCH ASSY, STOP LAMP | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:84340-09310 (fitment: unknown) | |||
| 82755-02040 | BLOCK, CENTER RELAY | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 | |||
| 84520-42010 | SWITCH ASSY, CLUTCH START | 1 | |
Note:ZRE172..6F Production:2013-08 – 2016-08 | |||
| 89650-02A60 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:ZRE172..GEN Production:2014-04 – 2015-08 | |||
| — | Part does not apply to this vehicle configuration. | 69065A | — |
| 82672-02090 | COVER, JUNCTION BLOCK | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 | |||
| 82730-02F40 | BLOCK ASSY, DRIVER SIDE JUNCTION | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-02 Replacements:82730-02F42 (fitment: unknown) | |||
| 90159-70004 | standard | — | |
| 90080-15052 | standard | — | |
Replacements:93315-14012 (fitment: unknown) | |||
| 90170-A0002 | standard | — | |
| 90178-A0023 | standard | — | |
Replacements:94151-80600 (fitment: unknown) | |||
| 90119-A0334 | standard | — | |
Replacements:90119-06952 (fitment: unknown) | |||
| 90183-06019 | standard | — | |
| 90080-15077 | standard | — | |
Replacements:90159-60431 (fitment: unknown) | |||

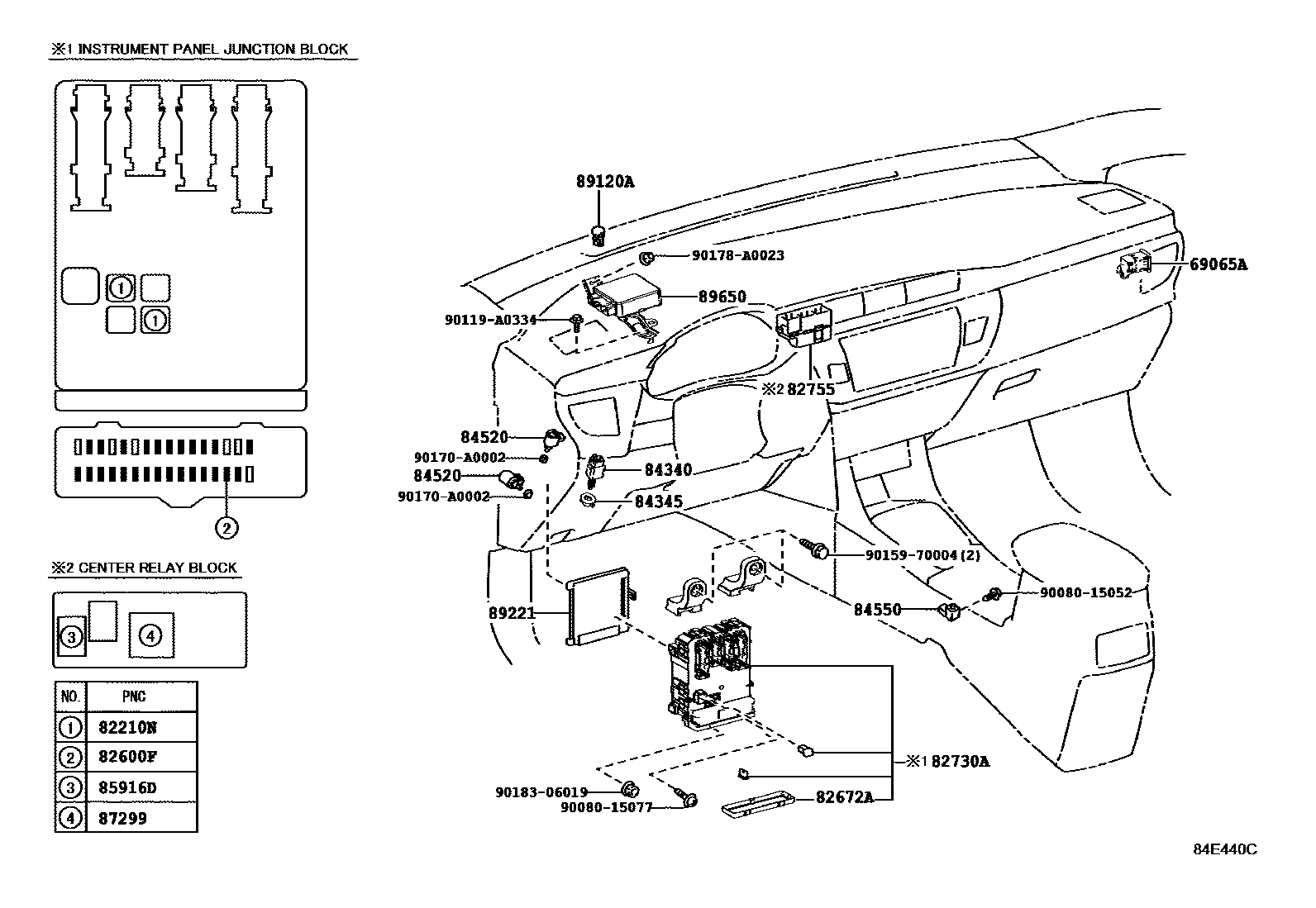

Diagram
24 parts
