Toyota Corolla 2014 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89615-06010 | SENSOR, KNOCK CONTROL | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:89615-20090 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made) | |||
| 83530-12050 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:ZRE172 Production:2014-01 – 2015-02 Replacements:83530-12060 (fitment: unknown) Spec:PAINTED | |||
| 83530-12060 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:ZRE172 Production:2014-01 – 2016-08 Spec:NO PAINTED | |||
| — | Part does not apply to this vehicle configuration. | 89429F | — |
| 89467-02070 | SENSOR, AIR FUEL RATIO | 1 | |
Note:ZRE172..GEN Production:2014-04 – 2016-08 | |||
| 89465-02400 | SENSOR, OXYGEN | 1 | |
Note:ZRE172..GEN Production:2014-04 – 2016-08 | |||
| — | Part does not apply to this vehicle configuration. | 84540 | — |
| 84210-52050 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:ZRE172..6F Production:2013-08 – 2016-08 | |||
| 90105-A0105 | standard | — | |
| 90430-12221 | standard | — | |
| 82715-20C40 | standard | — | |
| 90105-A0120 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 91551-80835 | standard | — | |
| 82715-42710 | standard | — | |
| 91651-40620 | standard | — | |
| 90430-18008 | standard | — | |

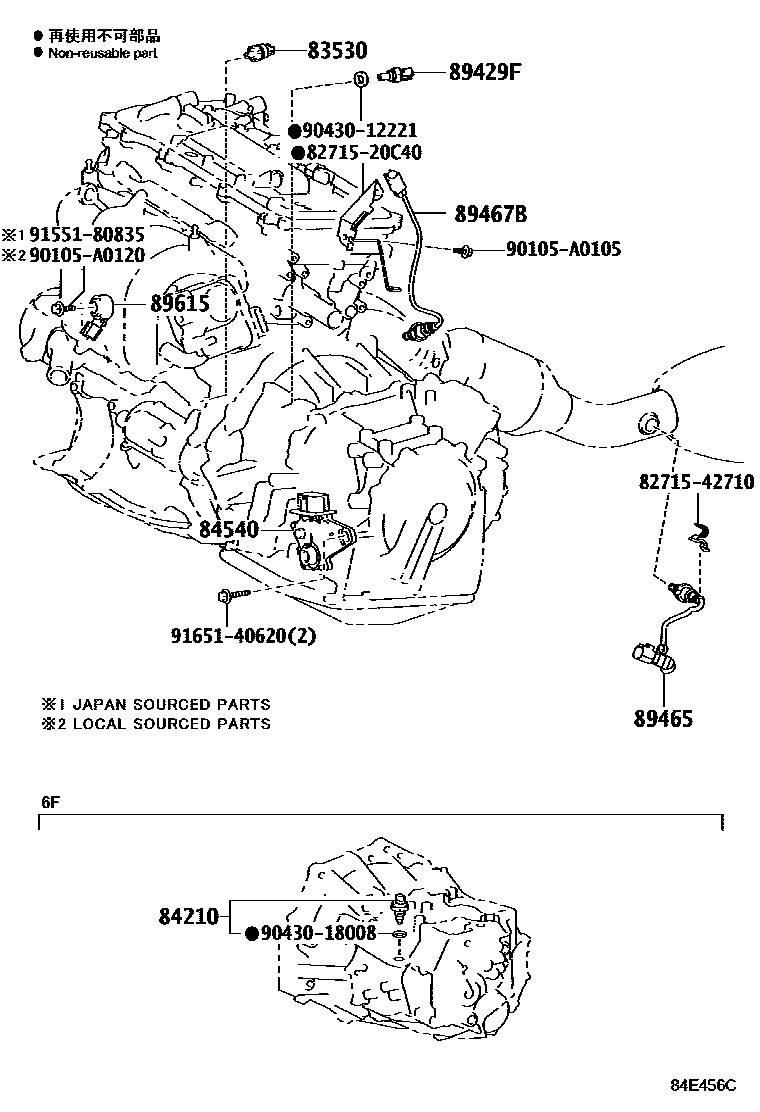

Diagram
15 parts
