Lexus ES350-300H 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89430-33300 | COMPUTER ASSY, OUTER MIRROR CONTROL, RH | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&ULTRA LUXURY PACKAGE&BLIND SPOT MONITOR-WITH | |||
| 84810-33140 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2020-08 | |||
| 84930-33140 | SWITCH ASSY, DOOR CONTROL | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 84927-33160 | SWITCH, SEAT MEMORY, RH | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&ULTRA LUXURY PACKAGE | |||
| 84231-30380 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 84810-33140 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2020-08 | |||
| 84231-50190 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 84040-33180 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2020-08 | |||
| 84872-78020 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&ULTRA LUXURY PACKAGE | |||
| 84927-33150 | SWITCH, SEAT MEMORY, LH | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&ULTRA LUXURY PACKAGE | |||
| 89430-33290 | COMPUTER ASSY, OUTER MIRROR CONTROL, LH | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&ULTRA LUXURY PACKAGE&BLIND SPOT MONITOR-WITH | |||
| 90159-60303 | standard | — | |
| 90189-06227 | standard | — | |
| 90164-40105 | standard | — | |
| 90166-70001 | standard | — | |
| 90164-40103 | standard | — | |

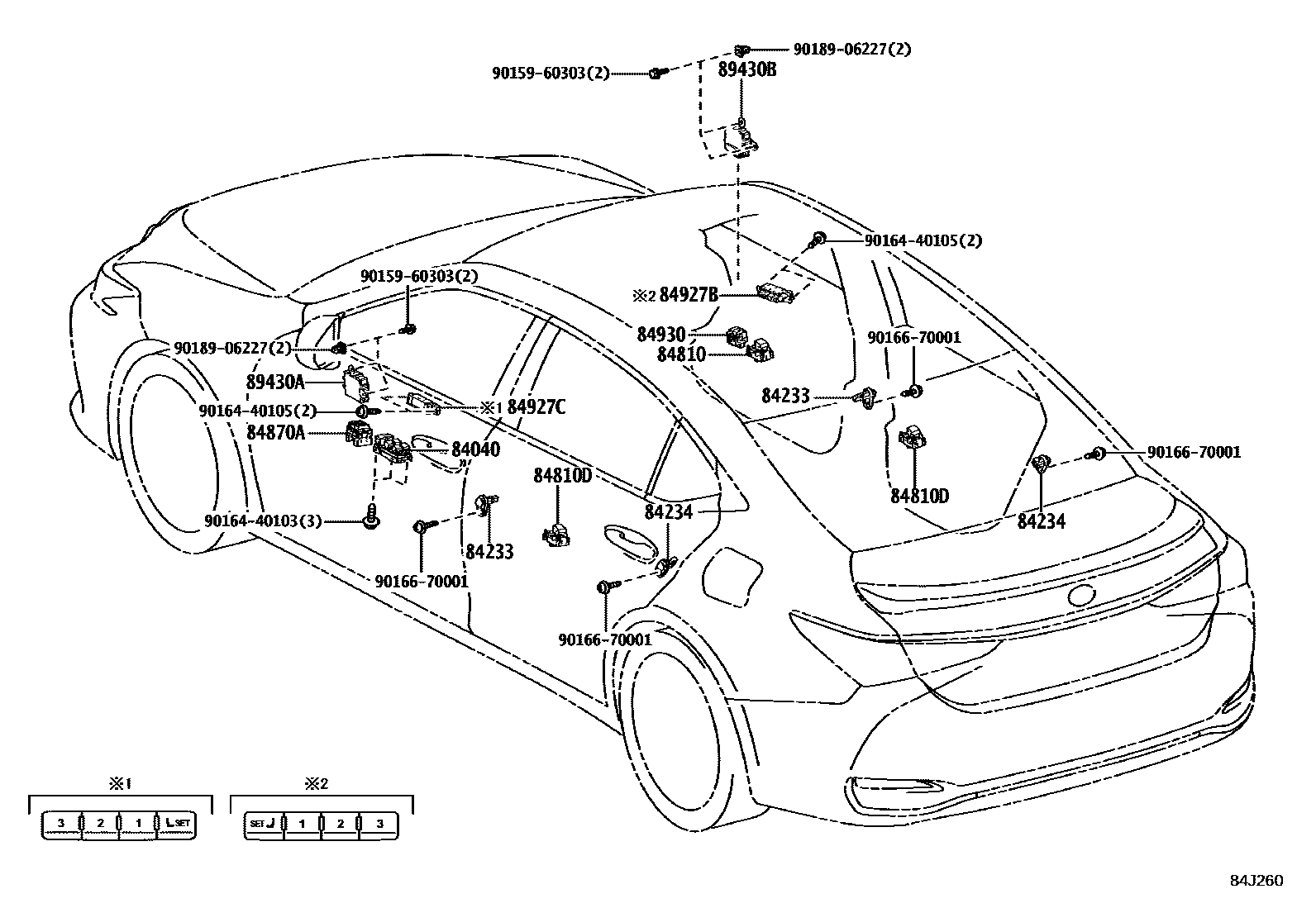

Diagram
16 parts
