Lexus ES350-300H 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 89429-12010 | SENSOR, TEMPERATURE | 1 | |
Note:AXZH10 Production:2018-07 – 2019-07 | |||
| 89467-33210 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXZH1# Production:2018-07 – … | |||
| 89467-33290 | SENSOR, AIR FUEL RATIO | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 82715-33K11 | BRACKET, WIRING HARNESS CLAMP | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 83520-33010 | GAGE ASSY,OIL PRESSURE SENDER | 1 | |
Note:AXZH10 Production:2018-07 – 2019-07 | |||
| 89491-33051 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:AXZH1# Production:2018-07 – … Replacements:89491-33052 (fitment: unknown) | |||
| 89451-10010 | SENSOR, SHIFT LEVER POSITION | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 89422-33040 | SENSOR, WATER TEMPERATURE, NO.2 | 1 | |
Note:AXZH1# Production:2018-07 – … | |||
| 90430-12031 | standard | — | |
| 90468-14044 | standard | — | |
| 90468-15007 | standard | — | |
| 94151-80600 | standard | — | |
| 82715-33K30 | standard | — | |
| 91551-80612 | standard | — | |
| 90119-06A23 | standard | — | |
| 91551-80835 | standard | — | |
| 91551-80825 | standard | — | |

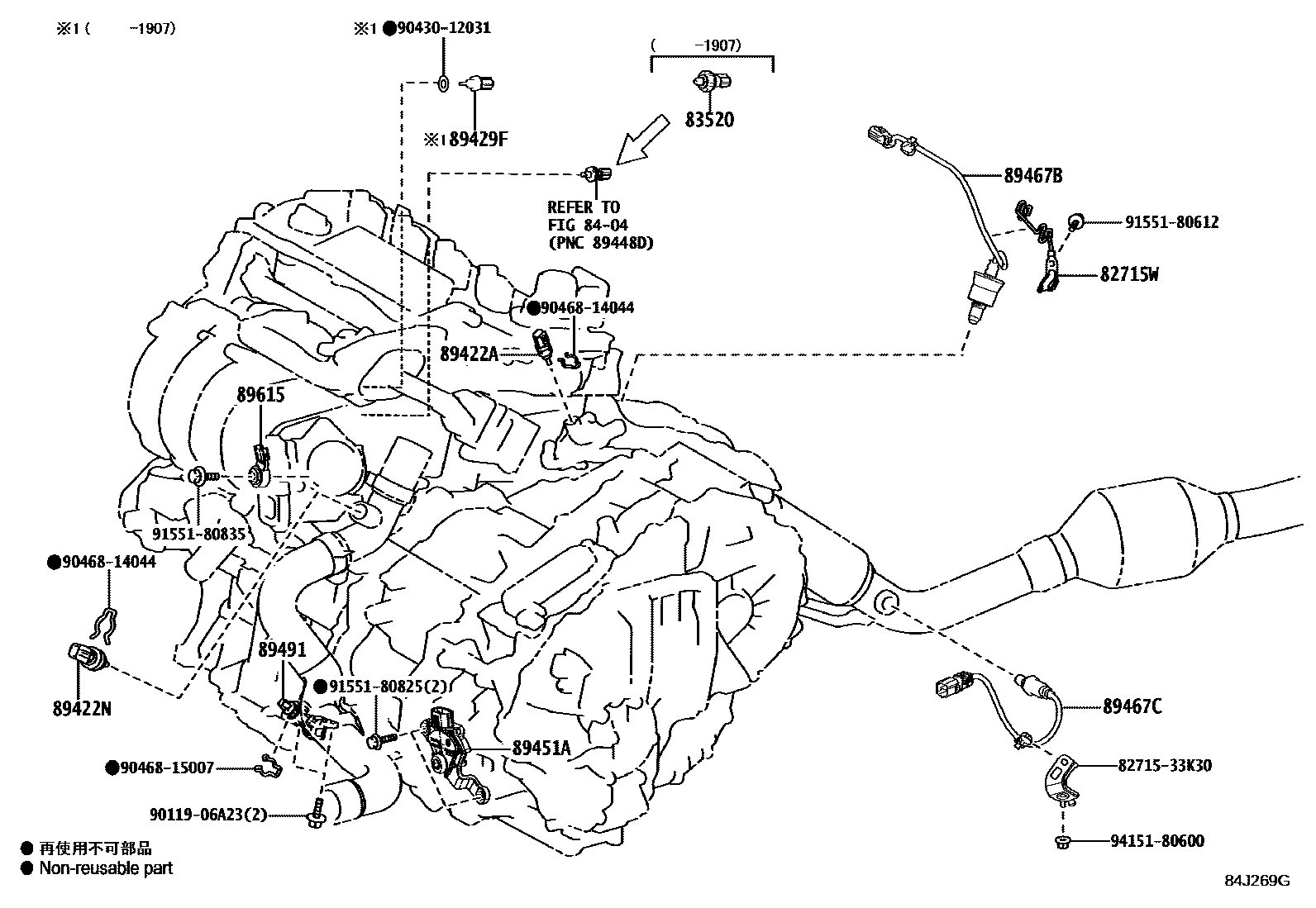

Diagram
19 parts
