Open RegionYearModelModelCode Details
USA / Canada 2018 ES350 300H AXZH10L-AEXGBA
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Color Code: 4X8 Trim Code: LC11 Production: 201807-999999 Model Short: AXZH10L-AEXGBA Region: NA Native Region: US

Lexus ES350-300H 2018 — Battery & Battery Cable

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
G9510-33110 BATTERY ASSY, HV SUPPLY 1
Note:AXZH10 Production:2018-07 – 2021-10 Replacements:G9510-33111 (fitment: unknown)
G92J5-47030 PACKING, HYBRID BATTERY, NO.1 1
Note:AXZH10 Production:2018-07 – 2021-10
G9282-33030 THERMISTOR, HYBRID BATTERY 1
Note:AXZH10 Production:2018-07 – 2021-10
G928E-47010 CLAMP, HV BATTERY 4
Note:AXZH10 Production:2018-07 – 2021-10
82817-47Q60 PROTECTOR, WIRING HARNESS 1
Note:AXZH10 Production:2018-07 – 2021-10
G9288-48040 LABEL, BATTERY CAUTION 1
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC,TYPE A:REFER ILLUST.
90178-06023 standard —
90105-06345 standard —

Diagram

8 parts

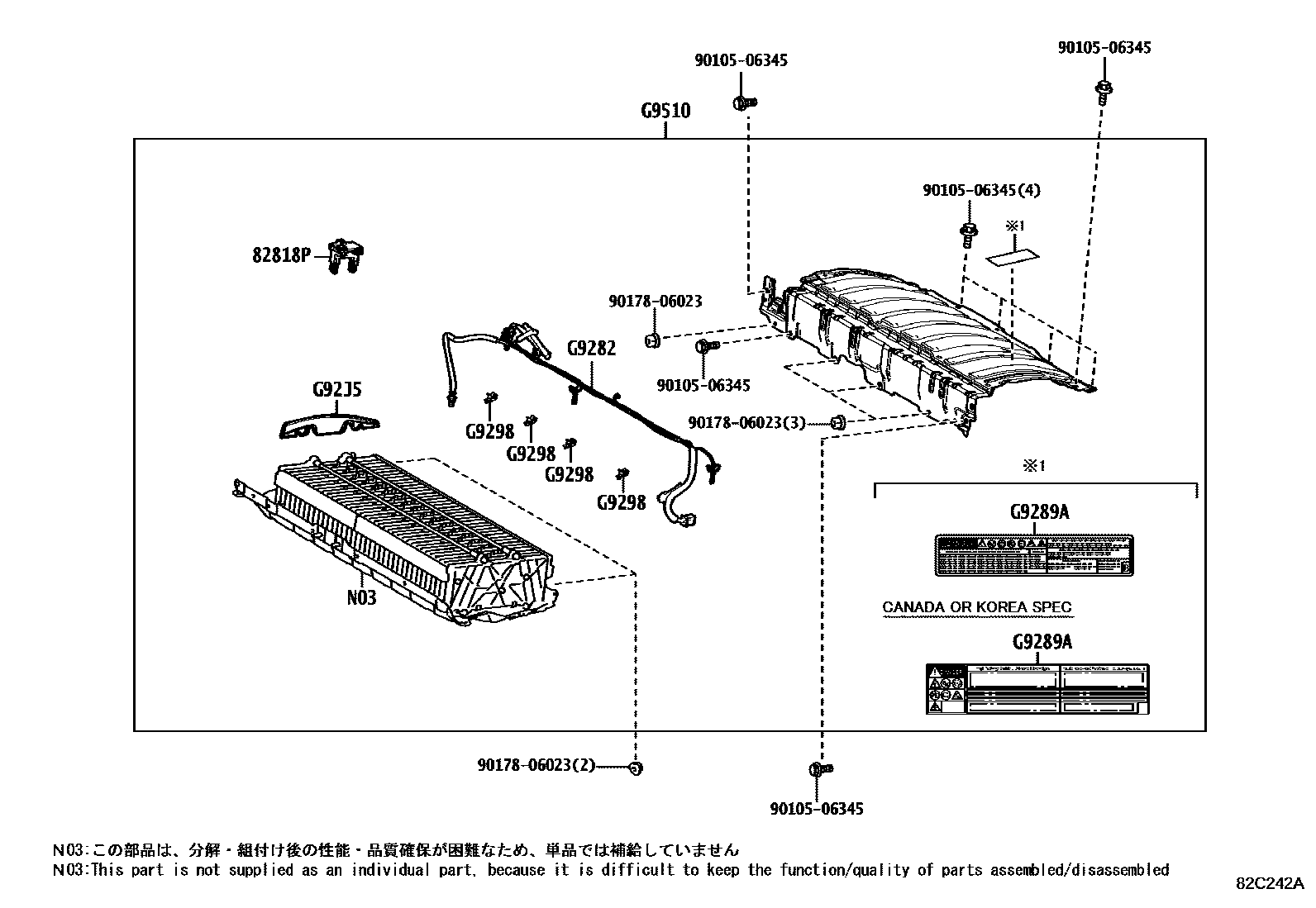

Lexus ES350-300H 2018 — Battery & Battery Cable
