Lexus ES350-300H 2018 — Battery & Battery Cable
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| G920G-33010 | PLATE SUB-ASSY, HV BATTERY END, NO.4 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| G920K-33010 | PLATE SUB-ASSY, HV BATTERY END, NO.5 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| G920S-33020 | SHIELD SUB-ASSY, HV BATTERY, NO.3 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| G3834-47050 | GRIP, SERVICE PLUG | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| G920T-33020 | SHIELD SUB-ASSY, HV BATTERY, NO.4 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| G92Z0-33041 | BLOCK ASSY, HV BATTERY JUNCTION | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 Replacements:G92Z0-47100 (fitment: unknown) | |||
| G920R-33030 | SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| G92N4-33040 | PANEL, HV BATTERY RH COVER, NO.1 | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| G9295-30020 | STRIKER, BATTERY COVER LOCK | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| G92F1-33020 | DUCT, HYBRID BATTERY EXHAUST, NO.1 | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| G92E1-33020 | DUCT, HV BATTERY INTAKE, NO.1 LH | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| G92Q1-33050 | PANEL, HV BATTERY SHIELD, NO.1 | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| G92Z2-47070 | BLOCK, HYBRID BATTERY TERMINAL | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 89892-33040 | SENSOR, BATTERY VOLTAGE | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| 94151-80800 | standard | — | |
| 90119-08A87 | standard | — | |
| 91673-E0860 | standard | — | |
| 90119-08C69 | standard | — | |
| 90179-06274 | standard | — | |
| 90119-06961 | standard | — | |
| 90467-06121 | standard | — | |
| 90178-06023 | standard | — | |
| 90467-07215 | standard | — | |
| 82711-1E350 | standard | — | |
| 90105-06345 | standard | — | |

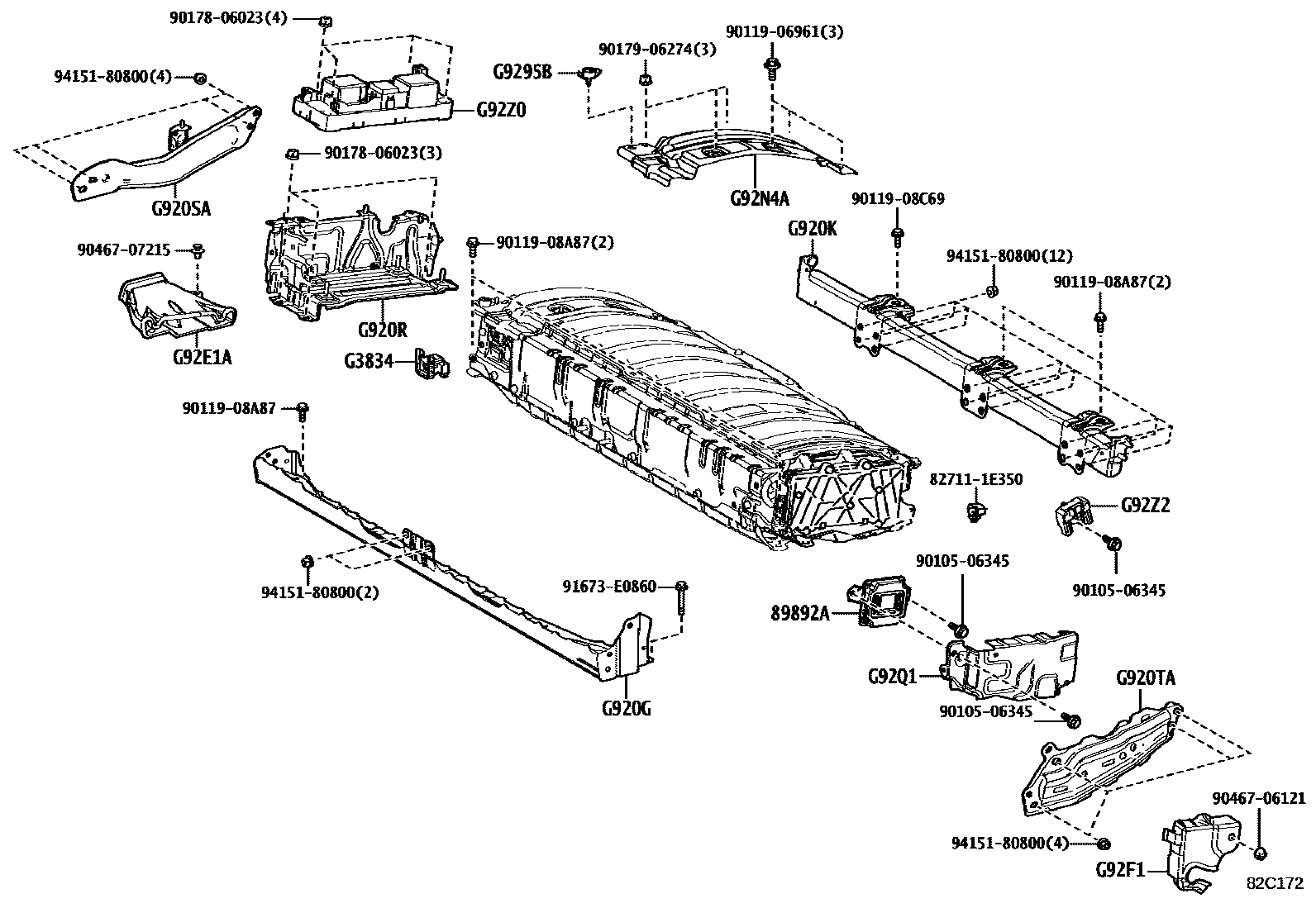

Diagram
25 parts
