Engine / Fuel / Tool Parts Diagrams for Toyota Avanza
0901 STANDARD TOOL

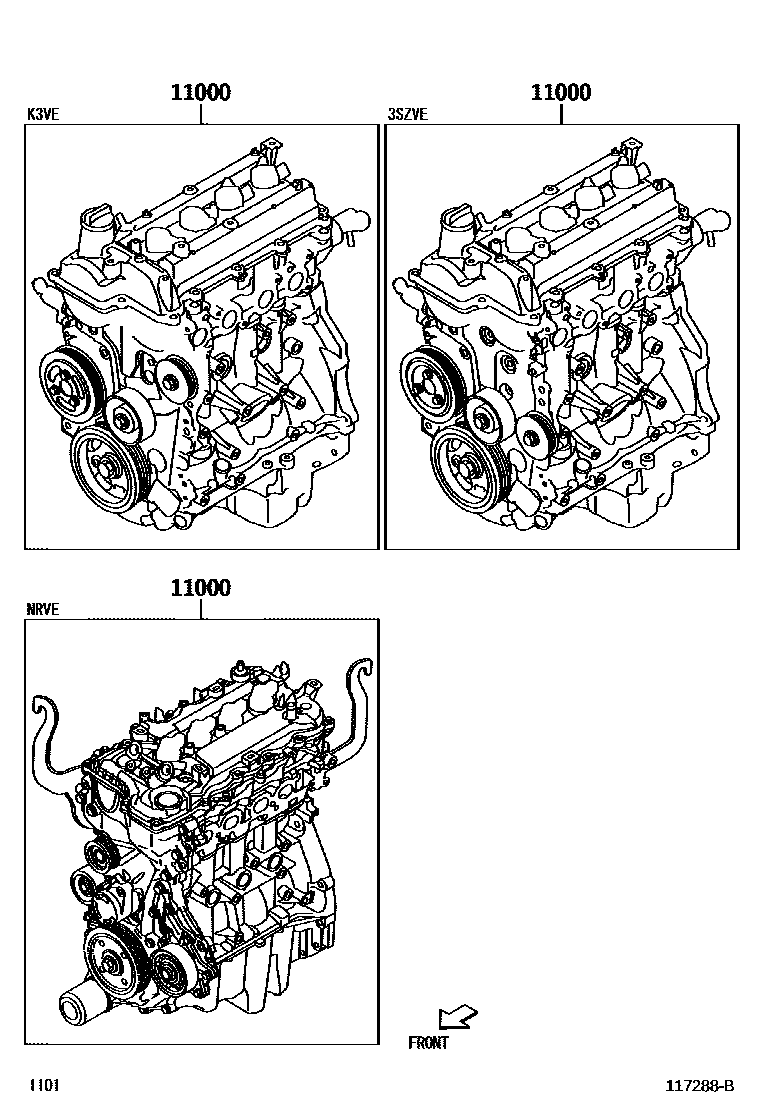

1101 PARTIAL ENGINE ASSEMBLY
1102 SHORT BLOCK ASSEMBLY
1103 ENGINE OVERHAUL GASKET KIT
1104 CYLINDER HEAD

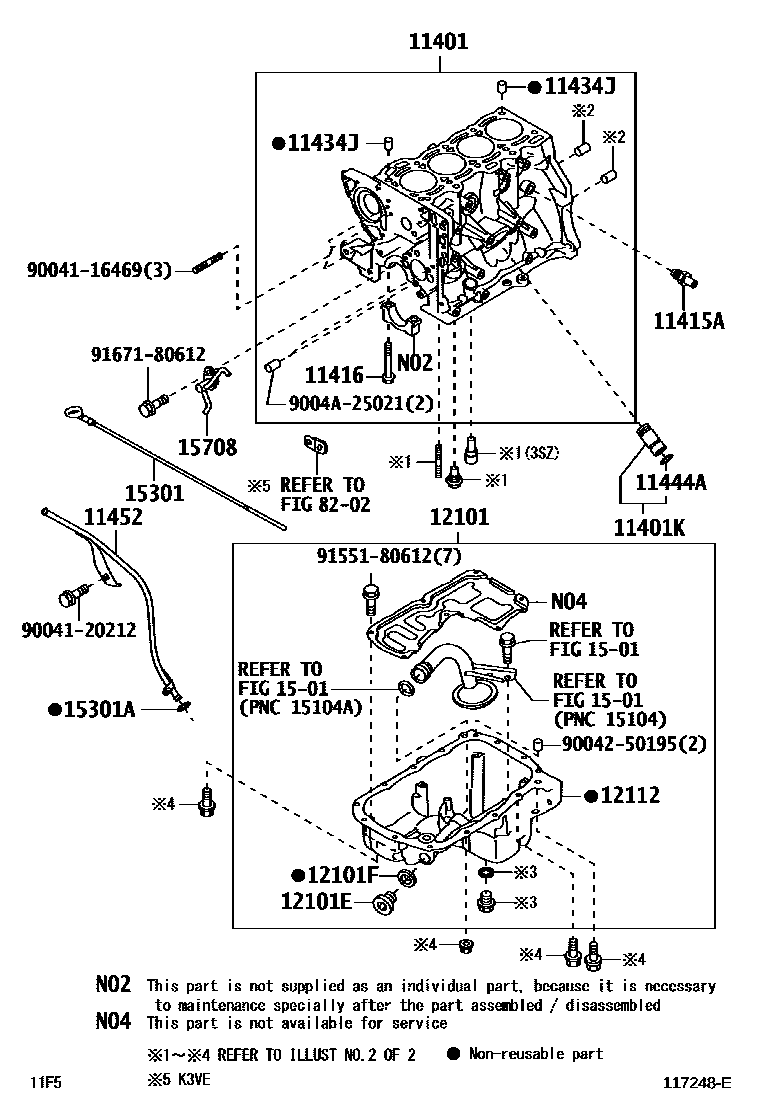

1105 CYLINDER BLOCK
1106 TIMING GEAR COVER & REAR END PLATE
1107 MOUNTING
1201 VENTILATION HOSE

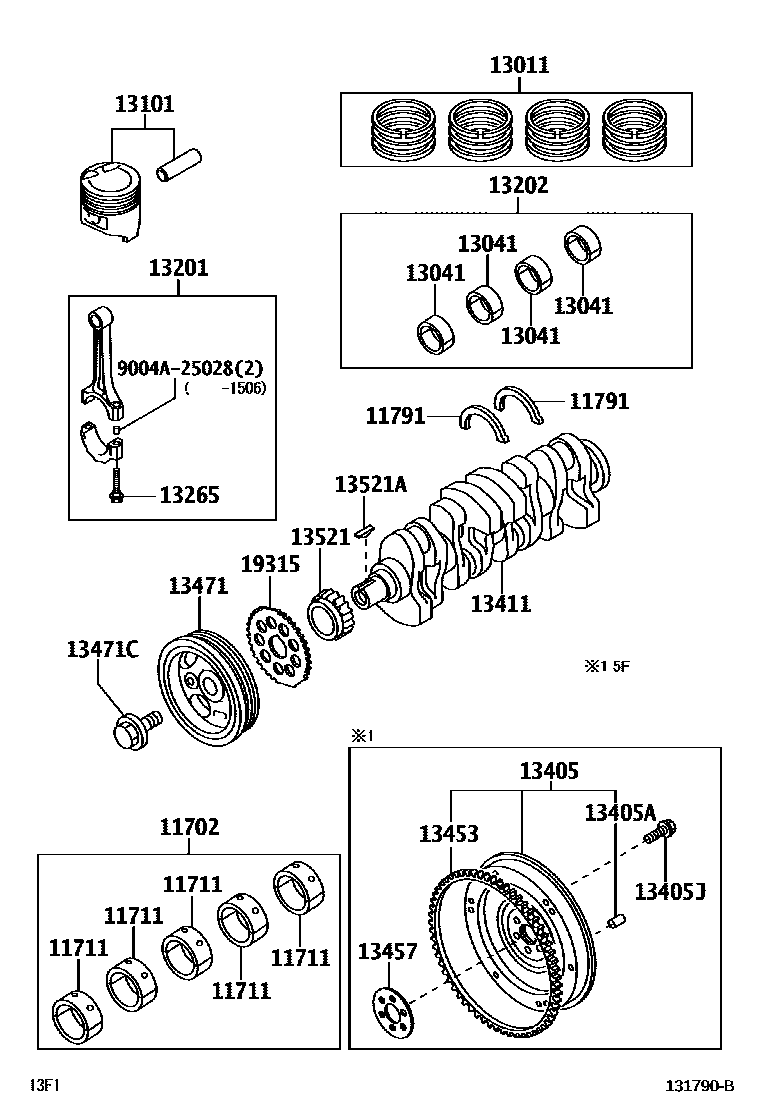

1301 CRANKSHAFT & PISTON
1302 CAMSHAFT & VALVE

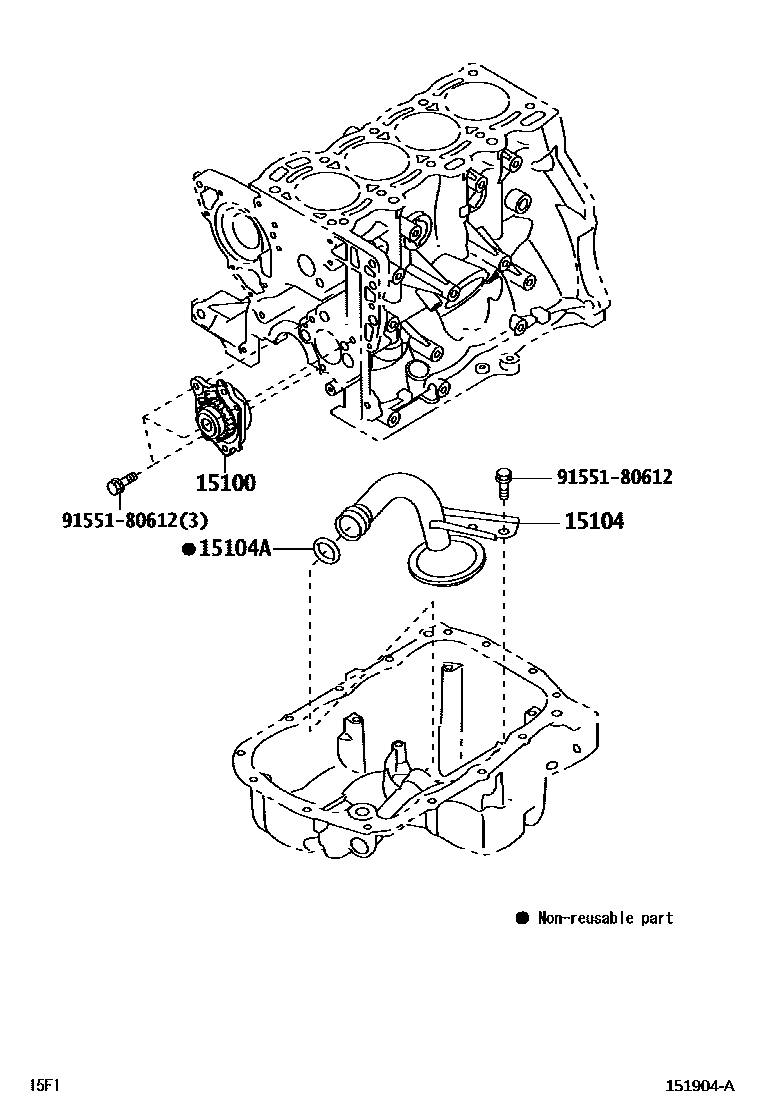

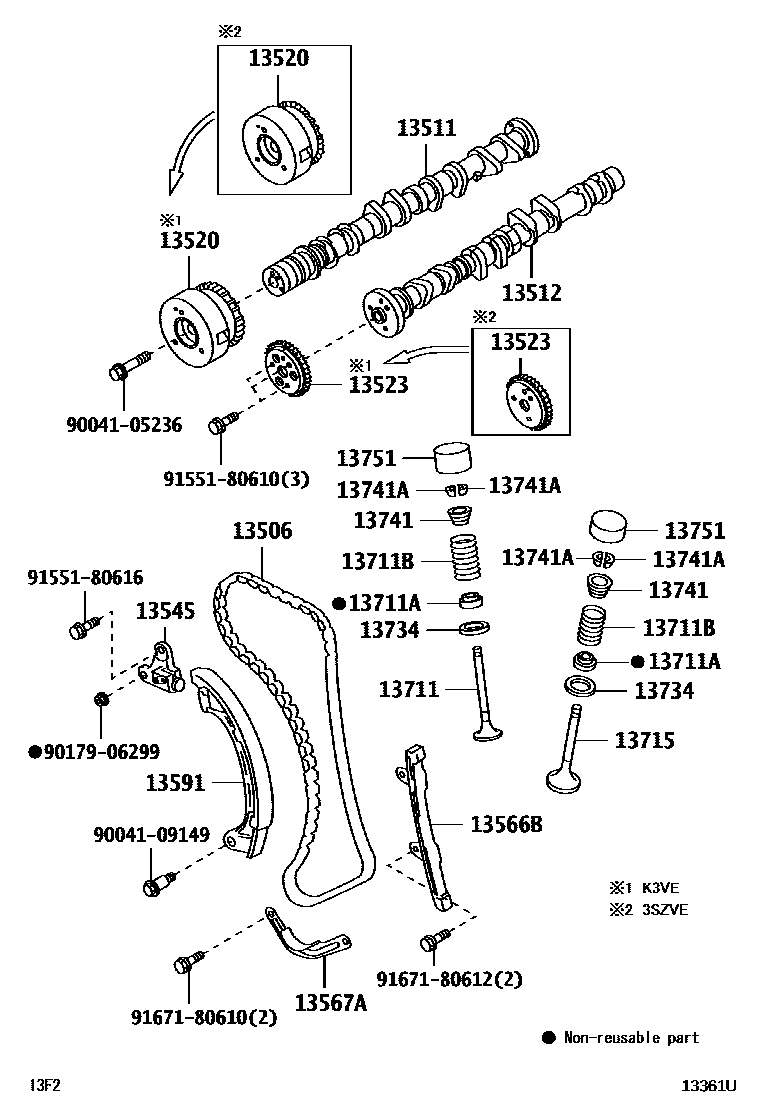

1501 ENGINE OIL PUMP
1502 OIL FILTER
1601 WATER PUMP
1603 RADIATOR & WATER OUTLET
1605 V-BELT

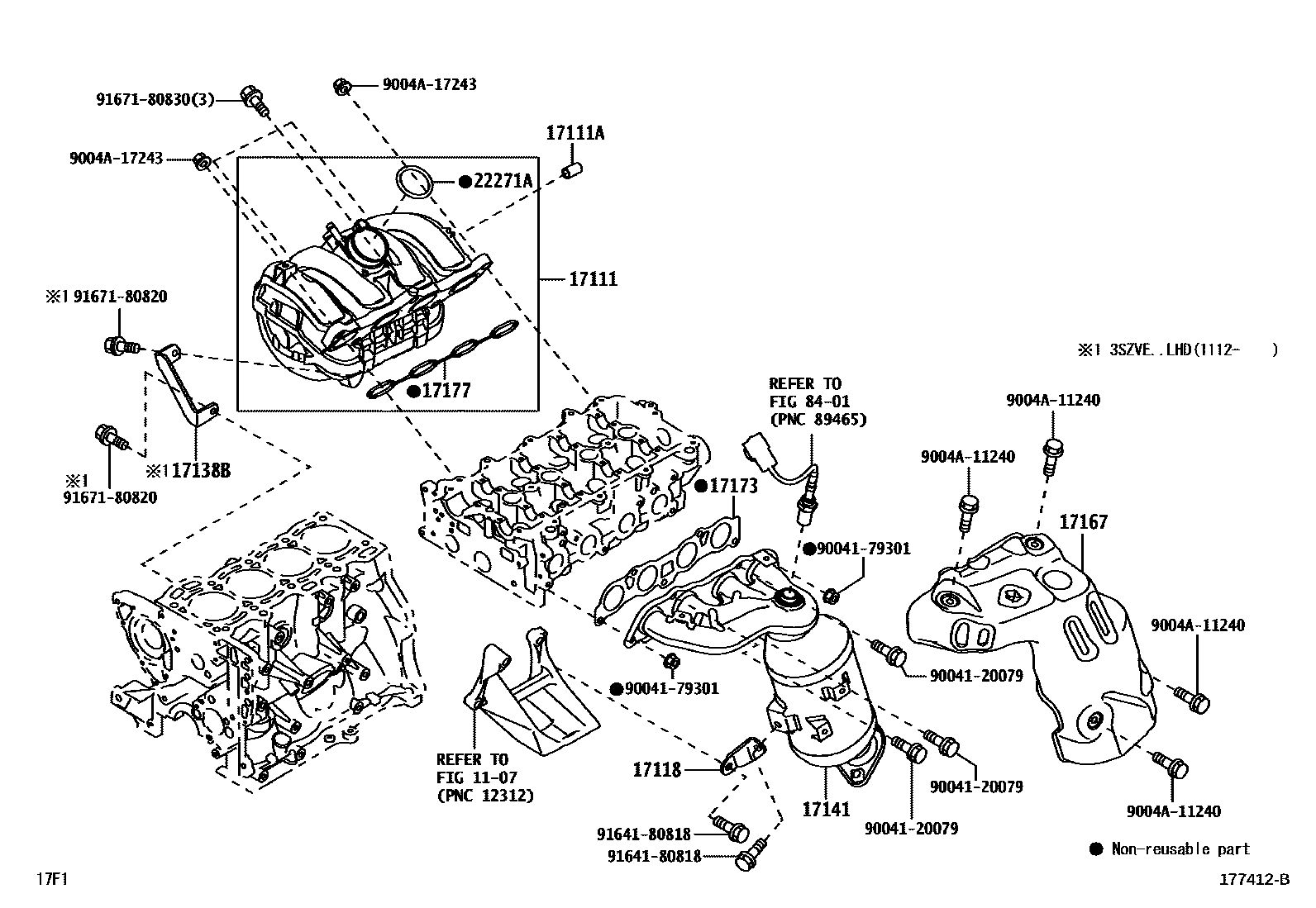

1701 MANIFOLD
1702 EXHAUST PIPE
1703 AIR CLEANER
1708 VACUUM PIPING
1901 IGNITION COIL & SPARK PLUG / GLOW PLUG
1903 ALTERNATOR
1904 STARTER
2211 FUEL INJECTION SYSTEM
