Toyota YARIS-HYBRID-FRP 2014 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:25A,MINI FUSE | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:30A,FEMALE,PNK,32V | |||
| 89220-0D120 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:KSP130,NLP130,NSP130..LHD..MTM Production:2014-07 – 2014-10 Replacements:89220-0D121 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 88152 | — |
| — | Part does not apply to this vehicle configuration. | 88150A | — |
| 89690-0D120 | COMPUTER, POWER MANAGEMENT CONTROL | 1 | |
Note:KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 85940 | — |
| 69065-02010 | CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Replacements:69065-12460 (fitment: unknown) | |||
| 84550-33010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:KSP130,NHP130,NLP130,NSP130 Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 85970A | — |
| 89650-0D294 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:KSP130,NLP130,NSP130..LHD..(G,N,R) Production:2014-07 – 2015-05 | |||
| — | Part does not apply to this vehicle configuration. | 84520E | — |
| 84520-42010 | SWITCH ASSY, CLUTCH START | 1 | |
Note:KSP130,NLP130,NSP130..MTM Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 85903 | — |
| 82730-52K40 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| 82672-52090 | COVER, JUNCTION BLOCK | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| 84340-09020 | SWITCH ASSY, STOP LAMP | 1 | |
Note:KSP130,NLP130,NSP130..5D..(G,S);KSP130,NHP130,NLP130,NSP130..N,R Production:2014-07 – 2017-03 | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 89120A | — |
| 82660-52100 | BLOCK ASSY, RELAY | 1 | |
Note:KSP130,NLP130,NSP130 Production:2014-07 – 2015-05 | |||
| 90080-87031 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:NLP130,NSP130..5D..S;KSP130,NLP130,NSP130..N,R Production:2014-07 – 2017-03 Replacements:90987-04010 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-04010 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:NLP130,NSP130..5D..S;KSP130,NLP130,NSP130..N,R Production:2014-07 – 2017-03 Spec:(J) Spec Note:(Japan made) | |||
| 82660-48020 | BLOCK ASSY, RELAY | 1 | |
Note:KSP130,NLP130,NSP130 Production:2014-07 – 2015-05 | |||
| 90987-02027 | RELAY, LAMP CUT | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 89111 | — |
| — | Part does not apply to this vehicle configuration. | 85919E | — |
| — | Part does not apply to this vehicle configuration. | 89420F | — |
| — | Part does not apply to this vehicle configuration. | 89980 | — |
| — | Part does not apply to this vehicle configuration. | 89539E | — |
| 90159-70003 | standard | — | |
| 90159-60613 | standard | — | |
| 90159-60550 | standard | — | |
| 90178-W0019 | standard | — | |
Replacements:94151-80600 (fitment: unknown) | |||
| 93315-14012 | standard | — | |
| 90170-W0002 | standard | — | |
| 90119-W0174 | standard | — | |
Replacements:91673-80620 (fitment: unknown) | |||
| 90119-W0143 | standard | — | |
Replacements:91672-L1230 (fitment: unknown) | |||
| 82715-0DE00 | standard | — | |
Replacements:82715-52X50 (fitment: unknown) | |||
| 82715-0DE20 | standard | — | |

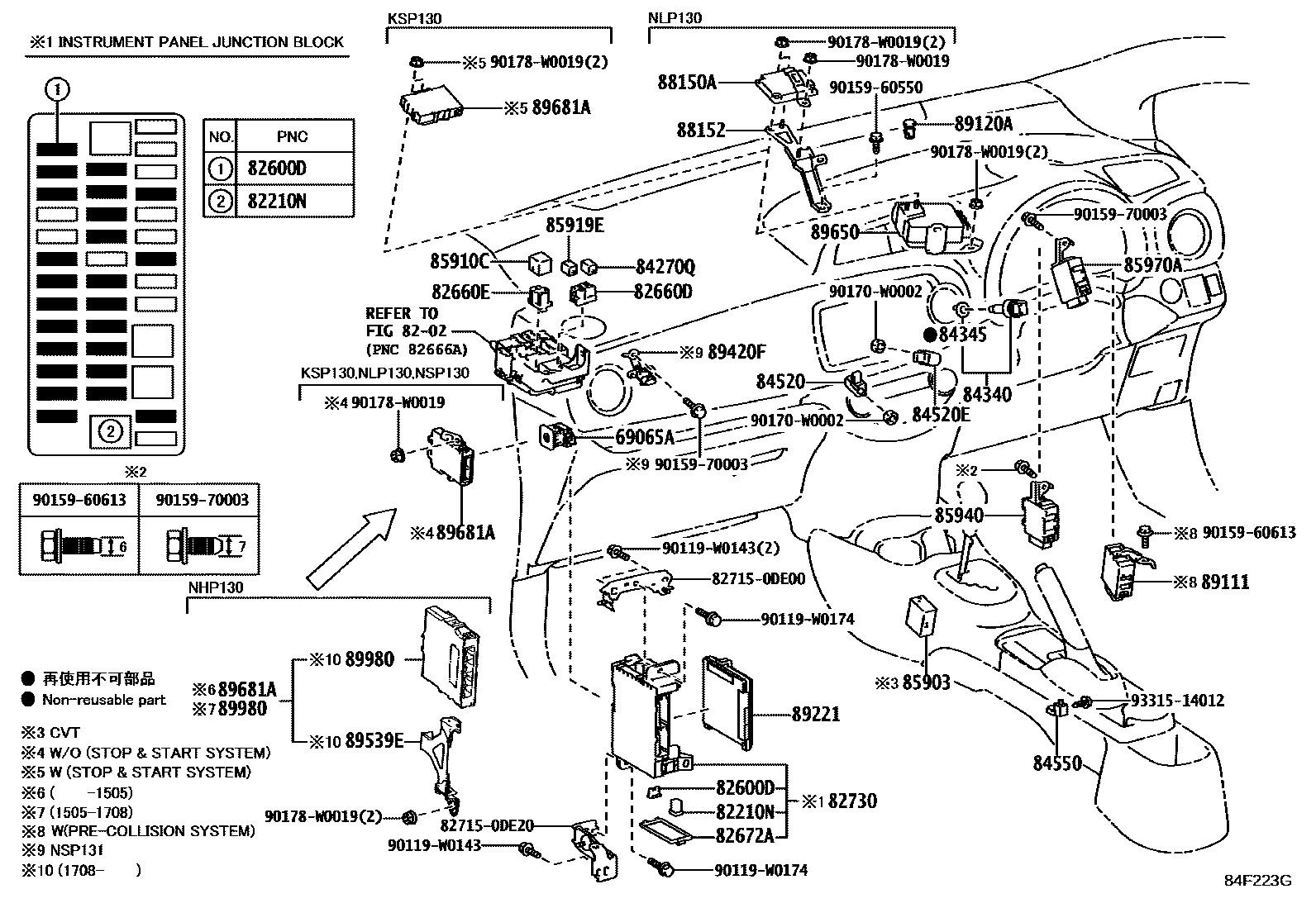

Diagram
32 parts
