Toyota YARIS-HYBRID-FRP 2017 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84540-52070 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:NSP130..CVT Production:2014-07 – 2017-03 | |||
| 89465-52740 | SENSOR, OXYGEN | 1 | |
Note:NSP130..N,R;NSP130..5D..(G,S) Production:2014-09 – 2017-03 | |||
| 83530-05010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:NHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Replacements:83530-60020 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 83530-28020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:NHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:(J),DENSO Spec Note:(Japan made),DENSO | |||
| 83530-60020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:NHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Spec:(J),YAZAKI Spec Note:(Japan made),YAZAKI | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:NHP130;NSP130..N,R;NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 84545 | — |
| — | Part does not apply to this vehicle configuration. | 84210 | — |
| 89467-52110 | SENSOR, AIR FUEL RATIO | 1 | |
Note:NSP130..N,R;NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| 91651-40620 | standard | — | |
| 82715-52W60 | standard | — | |
| 82715-52N30 | standard | — | |
| 82715-52W50 | standard | — | |
| 91671-80816 | standard | — | |
| 90105-W0086 | standard | — | |
Replacements:91553-81014 (fitment: unknown) | |||
| 91551-80835 | standard | — | |
| 90430-18008 | standard | — | |
| 90430-18032 | standard | — | |

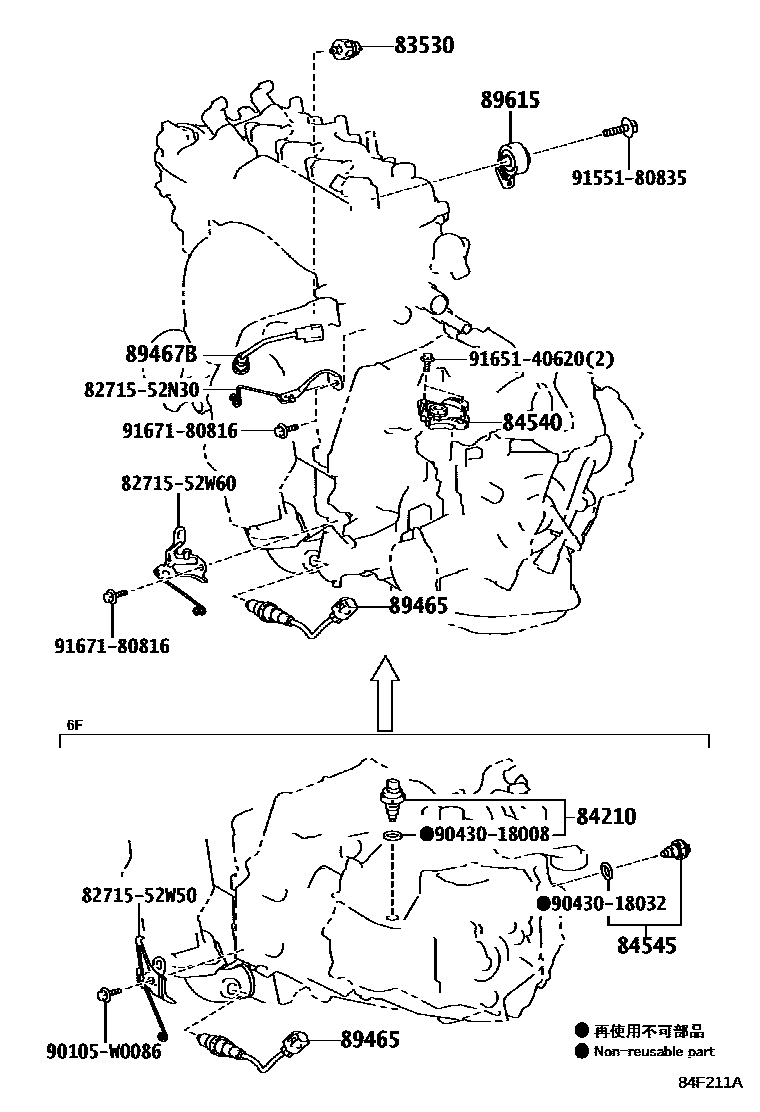

Diagram
16 parts
