Toyota YARIS-FRP 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0D051 | GAGE ASSY, FUEL SENDER | 1 | |
Note:KSP90,NLP90,NSP90..FRP Production:2008-11 – 2011-07 Replacements:83320-52261 (fitment: unknown) | |||
| 84231-0D030 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:KSP90,NLP90,NSP90..FRP Production:2008-11 – … Replacements:84231-60070 (fitment: unknown) | |||
| 84231-0D040 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:KSP90,NLP90,NSP90..FRP..5D Production:2008-11 – … | |||
| 84810-0D030 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:KSP90,NLP90,NSP90..FRP Production:2008-11 – … | |||
| 84810-0D021-B0 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:KSP90,NLP90,NSP90..FRP..5D..SOL Production:2010-01 – 2011-07 Spec:WEST PACKAGE&POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO),DK.GRAY,TRIM1# | |||
| 84820-02210 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:KSP90,NLP90,NSP90..FRP..LHD..5D..SOL Production:2010-01 – … Spec:WEST PACKAGE&POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO) | |||
| 895A0-52011 | RELAY ASSY, STOP LAMP CONTROL | 1 | |
Note:KSP90,NLP90,NSP90..FRP Production:2008-11 – … | |||
| 90164-40103 | standard | — | |
| 90166-60004 | standard | — | |
| 90119-W0017 | standard | — | |
Replacements:90119-06390 (fitment: unknown) | |||

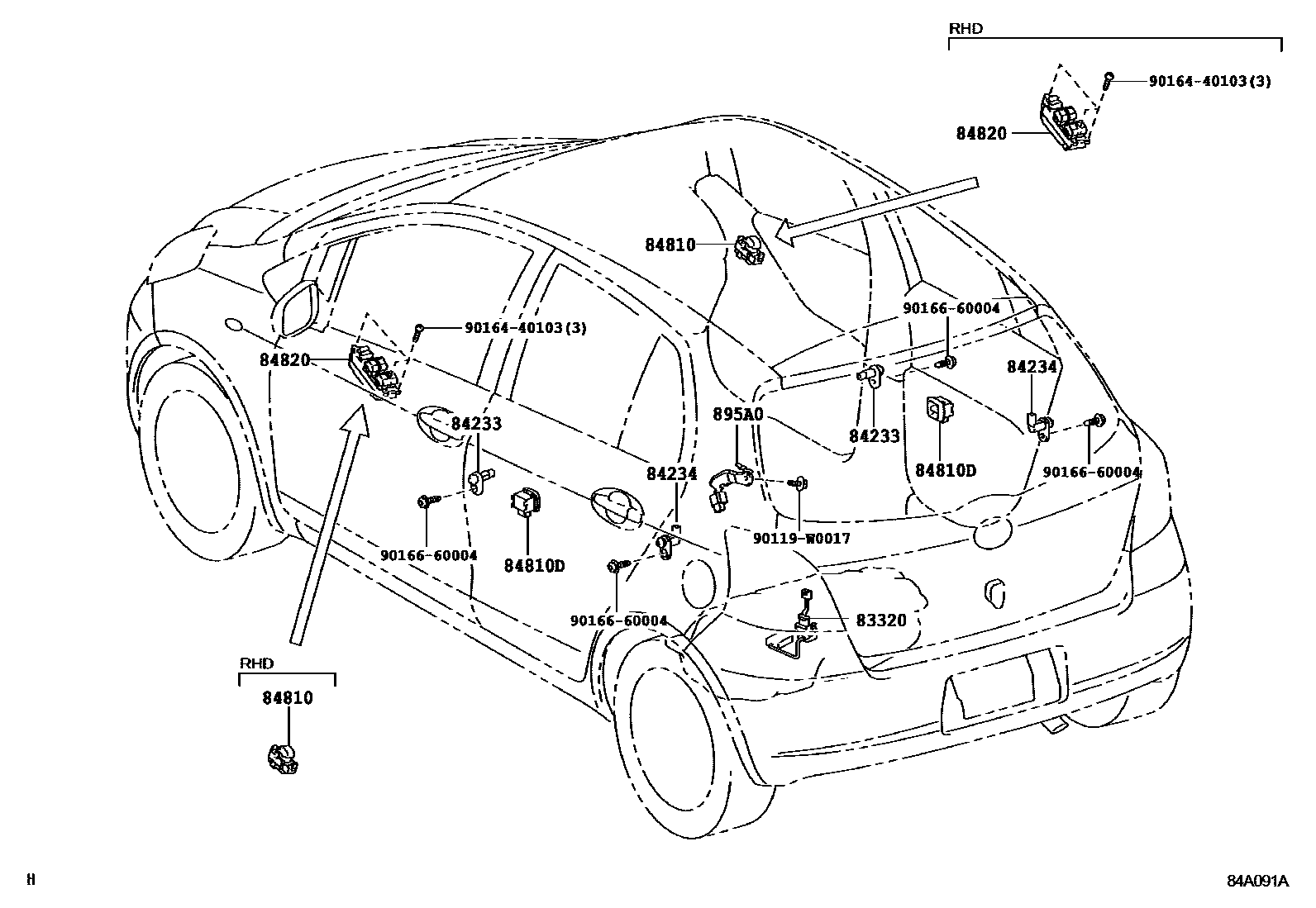

Diagram
10 parts
