Open RegionYearModelModelCode Details
Europe 2016 YARIS HYBRID FRP NHP130L-CHXNBW
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Doors Description: 5-DOOR Color Code: 1G2 Trim Code: FL21 Production: 201407-201703 Model Short: NHP130L-CHXNBW Region: EU Native Region: EU

Toyota YARIS-HYBRID-FRP 2016 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84810-0D030 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:KSP130,NHP130,NLP130,NSP130..5D..(N,S) Production:2014-07 – 2017-03 Spec:POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
84810-0D030 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03
84231-0D030 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Replacements:84231-60070 (fitment: unknown)
84231-0D040 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:KSP130,NHP130,NLP130,NSP130..5D Production:2014-07 – 2017-03
84840-05040 SWITCH ASSY, BACK DOOR OPENER 1
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2015-10 – 2017-03 Replacements:84840-28030 (fitment: unknown)
84820-02320 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:NHP130..LHD..N Production:2014-07 – 2017-03 Spec:POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
83320-52280 GAGE ASSY, FUEL SENDER 1
Note:NHP130 Production:2014-07 – 2017-03
28865-21030 SENSOR, BATTERY THERMOMETER 1
Note:1NZFXE..NHP130 Production:2014-07 – 2017-03
90164-40103 standard —
90166-70001 standard —
90166-60004 standard —

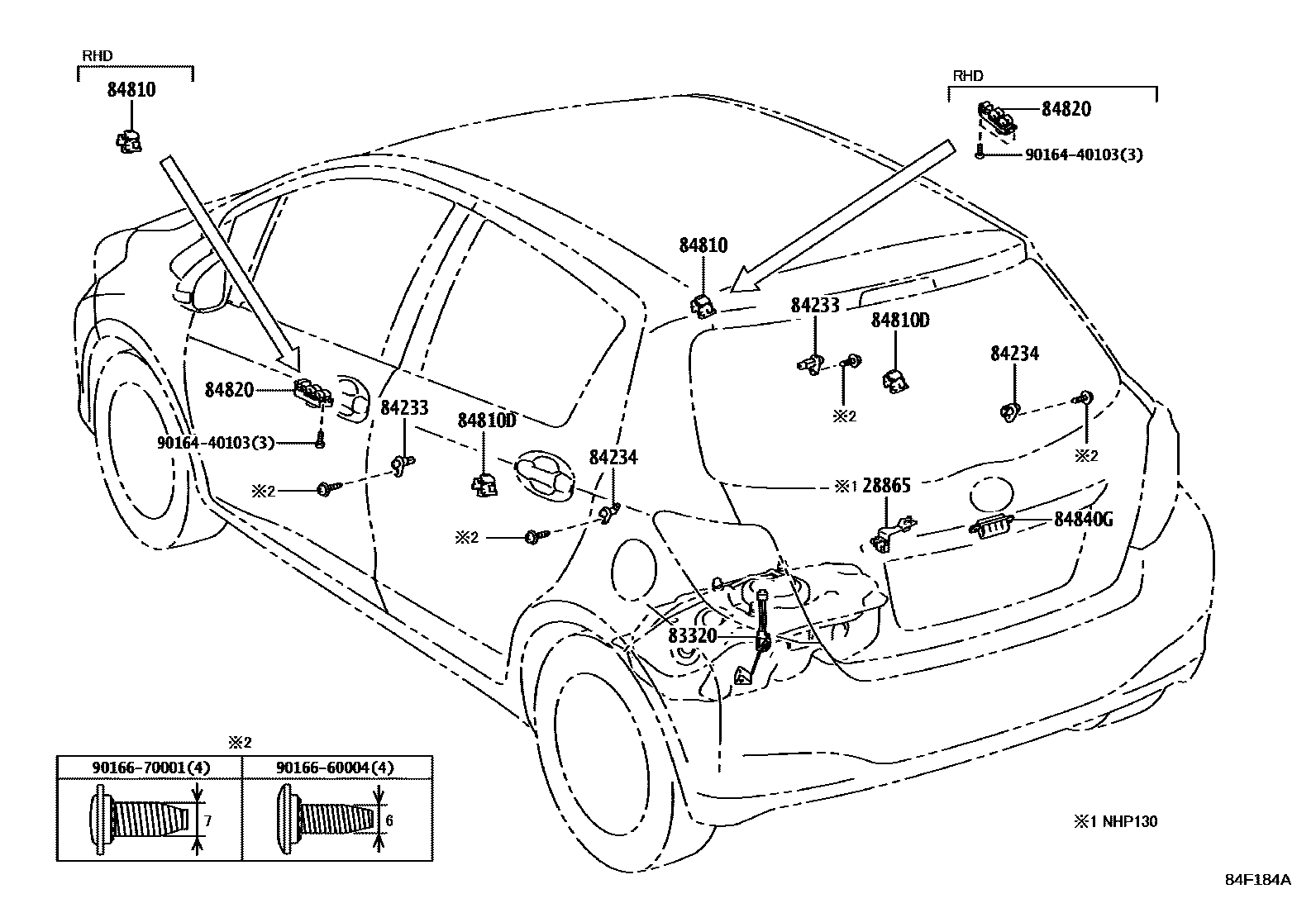

Diagram

11 parts
Toyota YARIS-HYBRID-FRP 2016 — Switch & Relay & Computer
