Toyota YARIS-FRP 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85535-30020 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| 85530-42010 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| 84970-K0010 | SWITCH ASSY, COMBINATION | 1 | |
Note:MXPA11..LHD..CVT..N Production:2020-07 – 2024-01 Spec:WITH(STOP & START SYSTEM) | |||
| 84152-0D290 | SWITCH, HEADLAMP LEVELING | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| 84332-0D220 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| 83950-K0010 | LAMP ASSY, TELLTALE | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| — | Part does not apply to this vehicle configuration. | 89611 | — |
| 84153-02110 | SWITCH, AUTO HIGH BEAM | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| — | Part does not apply to this vehicle configuration. | 84255 | — |
| — | Part does not apply to this vehicle configuration. | 84751F | — |
| — | Part does not apply to this vehicle configuration. | 84751G | — |
| — | Part does not apply to this vehicle configuration. | 84390B | — |
| — | Part does not apply to this vehicle configuration. | 85532 | — |
| 90167-W0007 | standard | — | |
Replacements:93568-55014 (fitment: unknown) | |||

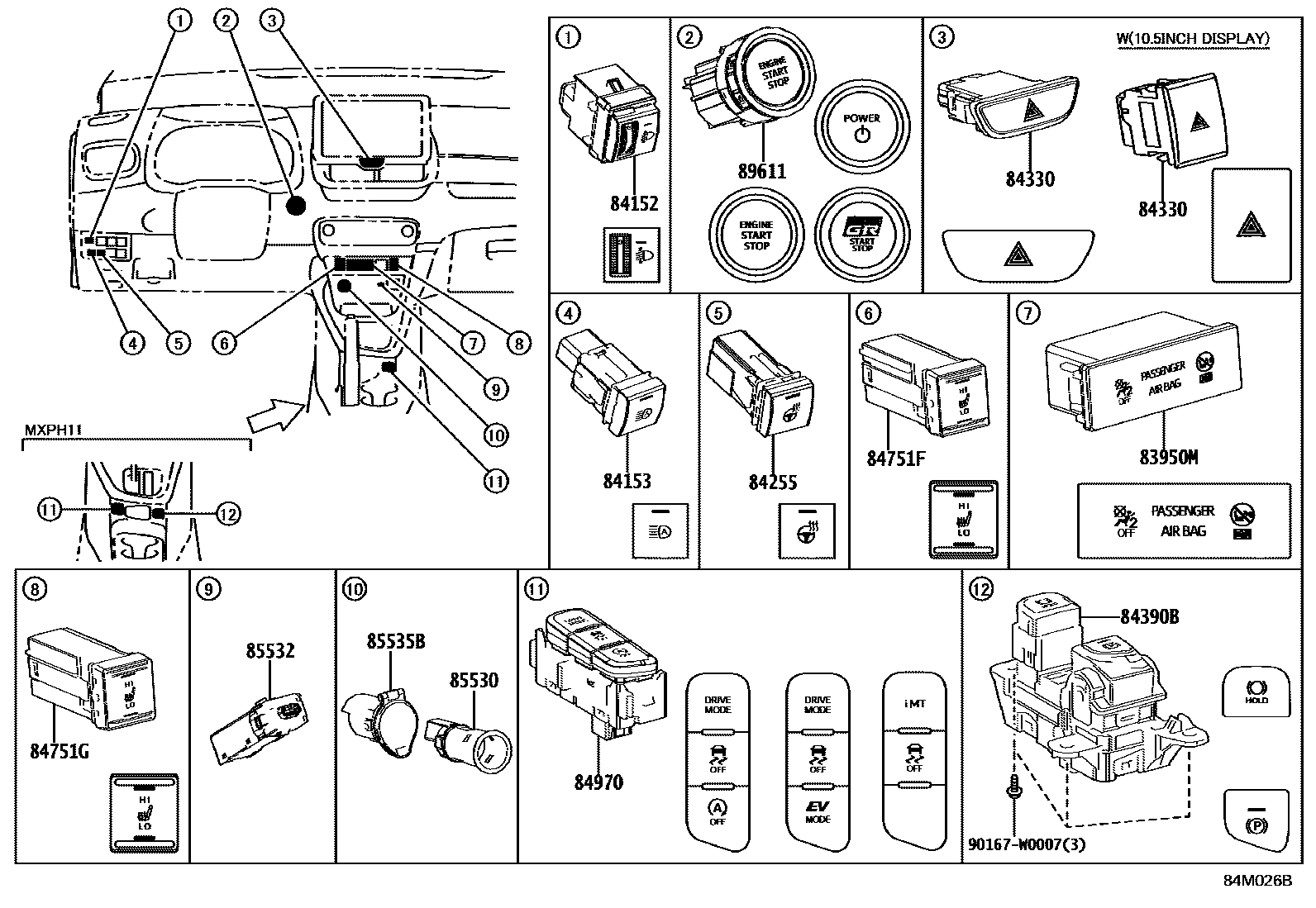

Diagram
8 parts
