Toyota YARIS-FRP 2005 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90080-87013 | RELAY ASSY, HORN | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90987-02012 (fitment: unknown) Spec:PART NUMBER LABEL=90080-87013 | |||
| 90080-87019 | RELAY ASSY, HORN | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90080-87021 (fitment: unknown) Spec:PART NUMBER LABEL=90080-87019 | |||
| — | Part does not apply to this vehicle configuration. | 87346K | — |
| — | Part does not apply to this vehicle configuration. | 87346L | — |
| — | Part does not apply to this vehicle configuration. | 89530D | — |
| 90080-82020 | FUSE, FUSE BLOCK | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90982-09008 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN | |||
| 90080-82021 | FUSE, FUSE BLOCK | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90982-09009 (fitment: unknown) Spec:10A,MINI FUSE,RED | |||
| 90080-82022 | FUSE, FUSE BLOCK | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90982-09010 (fitment: unknown) Spec:15A,MINI FUSE,BLUE | |||
| 90080-82023 | FUSE, FUSE BLOCK | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90982-09011 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW | |||
| 90080-82024 | FUSE, FUSE BLOCK | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90982-09013 (fitment: unknown) Spec:30A,MINI FUSE,GREEN | |||
| 90080-82033 | FUSE, FUSE BLOCK | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90982-09012 (fitment: unknown) Spec:25A,MINI FUSE | |||
| 90080-87019 | RELAY, COOLING FAN | 1 | |
Note:SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F Production:2003-02 – … Replacements:90080-87021 (fitment: unknown) Spec:PART NUMBER LABEL=90080-87019 | |||
| 90080-87012 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:90987-04004 (fitment: unknown) | |||
| 90987-04010 | RELAY, DAY TIME RUNNING LIGHT, NO.1 | 1 | |
Note:NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) Production:2003-02 – … | |||
| 90987-02025 | RELAY, HEADLAMP | 1 | |
Note:NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) Production:2003-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 28300 | — |
| — | Part does not apply to this vehicle configuration. | 85934 | — |
| 82663-0D010 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:SCP1#..FRP Production:2003-02 – … | |||
| 85928-52010 | RESISTOR, COOLING FAN | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … Replacements:85928-52011 (fitment: unknown) | |||
| 83482-02010 | SENSOR, OUTER AMBIENT TEMPERATURE | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 28610 | — |
| — | Part does not apply to this vehicle configuration. | 85959A | — |
| 82662-0D020 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:SCP1#..FRP..(SOL,TRSTD) Production:2003-02 – … | |||
| 82616-20010 | PULLER, FUSE | 1 | |
Note:NLP10,SCP1#..FRP Production:2003-02 – … | |||
| 82741-0D010 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:SCP1#..FRP Production:2003-02 – … | |||
| 82741-0D020 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:SCP1#..FRP..LHD..(SOL,TRSTD) Production:2003-02 – … Spec:COLD SPEC & W(DAY TIME RUNNING LIGHT SYSTEM) | |||
| — | Part does not apply to this vehicle configuration. | 83390 | — |
| 82742-52010 | BLOCK, ENGINE ROOM RELAY, NO.2 | 1 | |
Note:SCP1#..FRP..LHD..(SOL,TRSTD) Production:2003-02 – … | |||
| 82662-52051 | COVER, RELAY BLOCK, UPPER, NO.2 | 1 | |
Note:NLP10..FRP;SCP1#..FRP..LHD..(SOL,TRSTD) Production:2003-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 84233D | — |
| — | Part does not apply to this vehicle configuration. | 84243 | — |
| 91631-60622 | standard | — | |
| 91631-J0612 | standard | — | |
| 91651-40614 | standard | — | |
| 90179-06292 | standard | — | |
| 91651-60612 | standard | — | |
| 82715-52010 | standard | — | |

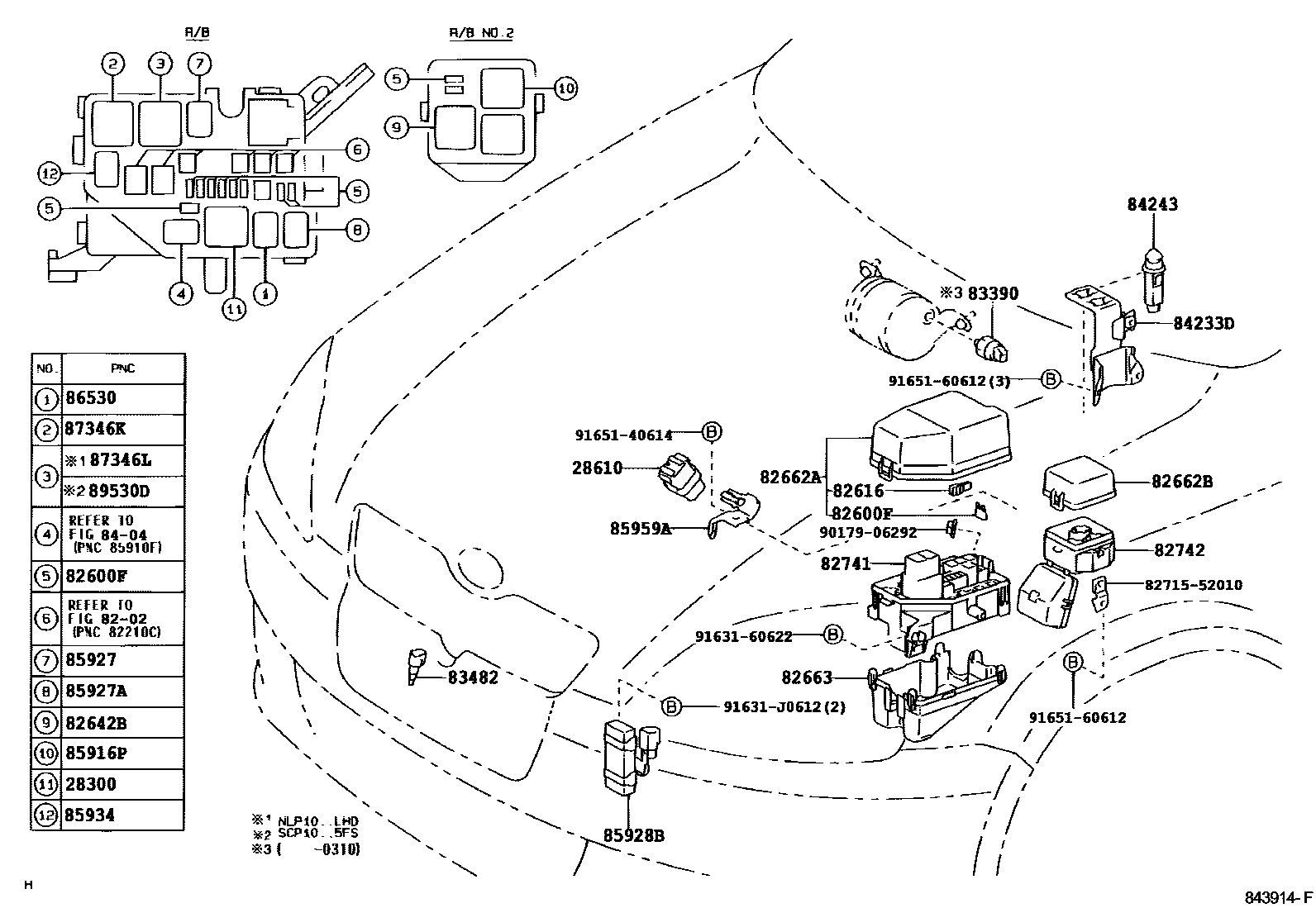

Diagram
27 parts
