Toyota YARIS-FRP 2003 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89650-0D021 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:SCP1#..RHD Production:2002-05 – 2003-02 Rev.ref.no To:0004 Fitment:Matches · configuration Serial Ranges:Other: To A186309 · SCP10 · · 00040020 | |||
| 82674-0D010 | COVER, JUNCTION BLOCK LOWER | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Fitment:Matches · configuration | |||
| 82666-0D010 | HOLDER, CONNECTOR | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Rev.ref.no To:0004 Fitment:Matches · configuration Serial Ranges:Other: To A186309 · SCP10 · · 00040020 | |||
| — | Part does not apply to this vehicle configuration. | 85916D | — |
| 85980-0D010 | RELAY ASSY, DOOR CONTROL | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:85980-52031 (fitment: unknown) Rev.ref.no To:0004 Fitment:Matches · configuration Serial Ranges:Other: To A186309 · SCP10 · · 00040020 | |||
| 85980-0D020 | RELAY ASSY, DOOR CONTROL | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:85980-52051 (fitment: unknown) Spec:W(KEY LESS ENTRY) Rev.ref.no To:0004 Fitment:Matches · configuration Serial Ranges:Other: To A186309 · SCP10 · · 00040020 | |||
| 85980-0D030 | RELAY ASSY, DOOR CONTROL | 1 | |
Note:SCP1#..RHD Production:2001-01 – 2003-02 Replacements:85980-52080 (fitment: unknown) Spec:W(DOUBLE-LOCK) Rev.ref.no To:0004 Fitment:Matches · configuration Serial Ranges:Other: To A186309 · SCP10 · · 00040020 | |||
| — | Part does not apply to this vehicle configuration. | 82660B | — |
| — | Part does not apply to this vehicle configuration. | 85916L | — |
| 82732-0D010 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Spec:TYPE A:REFER TO ILLUSTRATION Fitment:Matches · configuration | |||
| 82732-52060 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Spec:TYPE B:REFER TO ILLUSTRATION Fitment:Matches · configuration | |||
| 90987-04006 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90987-04010 (fitment: unknown) Fitment:Matches · configuration | |||
| 84340-32050 | SWITCH ASSY, STOP LAMP | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Fitment:Matches · configuration | |||
| 90080-87013 | RELAY, POWER WINDOW | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90987-02012 (fitment: unknown) Spec:PART NUMBER LABEL=90080-87013 Fitment:Matches · configuration | |||
| 90080-87019 | RELAY, POWER WINDOW | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90080-87021 (fitment: unknown) Spec:PART NUMBER LABEL=90080-87019 Fitment:Matches · configuration | |||
| 82610-20080 | BLOCK ASSY, FUSE | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Fitment:Matches · configuration | |||
| 82683-0D010 | PLATE, FUSE BLOCK CAUTION | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Rev.ref.no To:0004 Fitment:Matches · configuration Serial Ranges:Other: To A186309 · SCP10 · · 00040020 | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| 81980-50030 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Rev.ref.no To:0004 Fitment:Matches · configuration Serial Ranges:Other: To A186309 · SCP10 · · 00040020 | |||
| — | Part does not apply to this vehicle configuration. | 85937 | — |
| 90080-82020 | FUSE, FUSE BLOCK | 1 | |
Note:SCP10 Production:2001-01 – 2003-02 Replacements:90982-09008 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration | |||
| 90080-82021 | FUSE, FUSE BLOCK | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90982-09009 (fitment: unknown) Spec:10A,MINI FUSE,RED Fitment:Matches · configuration | |||
| 90080-82022 | FUSE, FUSE BLOCK | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90982-09010 (fitment: unknown) Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration | |||
| 90080-82023 | FUSE, FUSE BLOCK | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90982-09011 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration | |||
| 90080-82024 | FUSE, FUSE BLOCK | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90982-09013 (fitment: unknown) Spec:30A,MINI FUSE,GREEN Fitment:Matches · configuration | |||
| 90080-82033 | FUSE, FUSE BLOCK | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Replacements:90982-09012 (fitment: unknown) Spec:25A,MINI FUSE Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85916N | — |
| — | Part does not apply to this vehicle configuration. | 85431 | — |
| — | Part does not apply to this vehicle configuration. | 84727 | — |
| — | Part does not apply to this vehicle configuration. | 33855A | — |
| 84550-30080 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:SCP1# Production:2001-01 – 2003-02 Fitment:Matches · configuration | |||
| 90179-06274 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-70003 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-70004 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-60546 | standard | — | |
Fitment:Matches · configuration | |||
| 90170-10017 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-50068 | standard | — | |
Fitment:Matches · configuration | |||
| 93313-15016 | standard | — | |
Fitment:Matches · configuration | |||

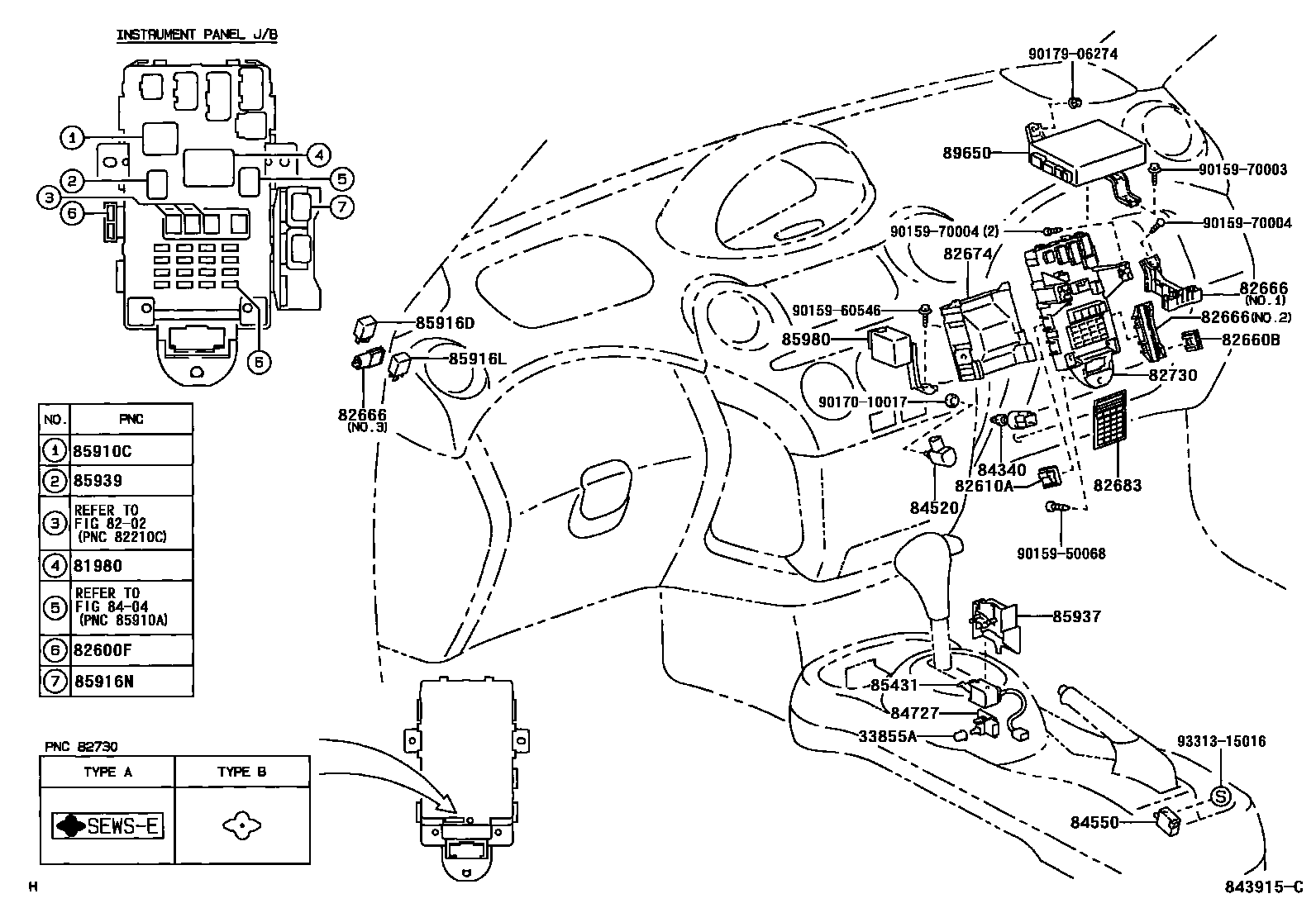

Diagram
29 parts
