Toyota AURIS-HYBRID-UKP 2014 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84870-02100-C0 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:ZWE186..N Production:2012-10 – 2014-07 Spec:OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER),BLACK | |||
| 84872-02140 | SWITCH ASSY, OUTER MIRROR, NO.2 | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N Production:2012-10 – 2015-05 | |||
| 89611-02110 | SWITCH, PUSH START | 1 | |
Note:ZWE186 Production:2012-10 – 2015-05 Replacements:89611-02111 (fitment: unknown) | |||
| 84155-02010 | SWITCH, HEADLAMP SWIVEL MAIN | 1 | |
Note:NDE180..LHD..6F..N;ADE186,NRE180,ZRE185,ZWE186..LHD..(G,N) Production:2012-10 – 2015-02 Replacements:84155-02011 (fitment: unknown) Spec:HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM | |||
| 84152-02080 | SWITCH, HEADLAMP LEVELING | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186 Production:2012-10 – 2015-05 | |||
| 84490-02030 | SWITCH ASSY, IPA MAIN | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186..N Production:2012-10 – 2015-02 Replacements:84490-02031 (fitment: unknown) Spec:CLEARANCE & BACK SONAR-WITH | |||
| — | Part does not apply to this vehicle configuration. | 84988L | — |
| 84332-02180 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD Production:2012-10 – 2015-05 | |||
| 83910-12630 | CLOCK ASSY | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186 Production:2013-03 – 2015-05 | |||
| 84718-02020 | SWITCH, TRANSMISSION SHIFT MAIN | 1 | |
Note:ZWE186..LHD Production:2012-10 – 2015-05 | |||
| 83950-02190 | LAMP ASSY, TELLTALE | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186 Production:2012-10 – 2015-05 | |||
| 85535-12060 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186 Production:2012-10 – 2015-05 | |||
| 85530-0D020 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186 Production:2012-10 – 2015-05 Replacements:85530-0D021 (fitment: unknown) | |||
| 84751-12100 | SWITCH, SEAT HEATER | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) Production:2012-10 – 2014-11 Replacements:84751-12101 (fitment: unknown) Spec:SEAT HEATER-WITH | |||
| 84751-12110 | SWITCH, SEAT HEATER | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) Production:2012-10 – 2014-11 Replacements:84751-12111 (fitment: unknown) Spec:SEAT HEATER-WITH | |||
| — | Part does not apply to this vehicle configuration. | 84720A | — |
| 85535-12050-C0 | COVER, POWER OUTLET SOCKET, NO.2 | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N Production:2012-10 – 2015-05 Spec:BLACK,TRIM2# | |||
| 85530-0D020 | SOCKET ASSY, POWER OUTLET, NO.2 | 1 | |
Note:ADE186,NDE180,NRE180,ZRE185,ZWE186 Production:2012-10 – 2015-05 Replacements:85530-0D021 (fitment: unknown) | |||
| 84970-02060 | SWITCH ASSY, COMBINATION | 1 | |
Note:ZWE186 Production:2012-10 – 2015-05 | |||
| — | Part does not apply to this vehicle configuration. | 84470A | — |
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| — | Part does not apply to this vehicle configuration. | 84720J | — |

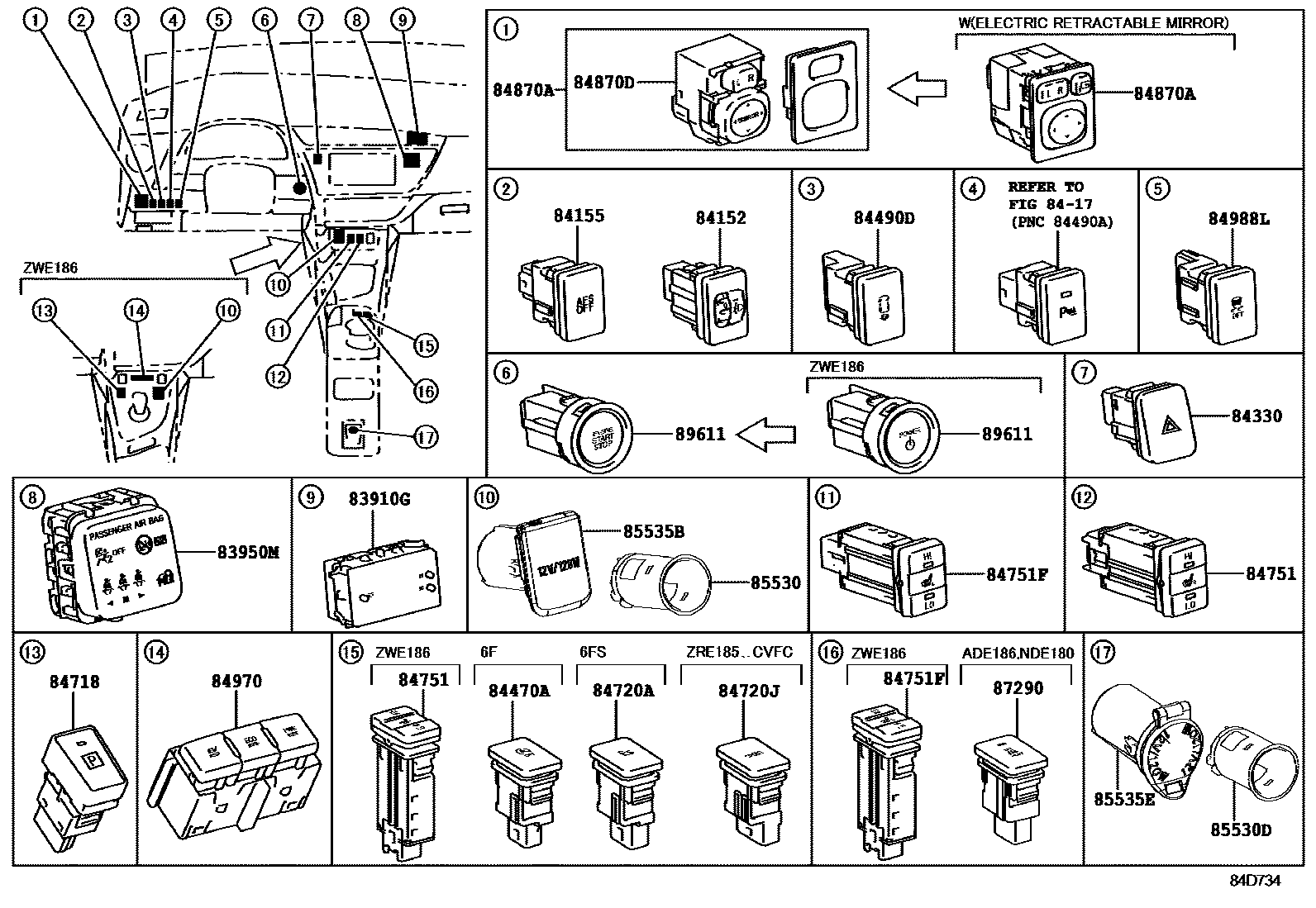

Diagram
17 parts
